How Absorbance Microplate Readers Work

In life sciences, the absorbance microplate reader is a cornerstone technology, enabling the quantitative analysis of biological and chemical samples with unparalleled efficiency. This device operates on photometry principle, measuring the intensity of light absorbed by substances in microplate wells. Its application spans a broad spectrum, from antibody detection in immunology to protein quantification in biochemistry, making it a pivotal tool in drug discovery and development processes. By emitting light at specific wavelengths and quantifying the absorption, absorbance microplate readers offer a direct insight into the concentration and purity of samples. This piece aims to unfold the layers of how these sophisticated instruments function, their integral components, the nuances of interpreting data they produce, and the challenges and advancements shaping their future. Focusing on delivering clear, concise information, we will navigate the operational dynamics of absorbance microplate readers, shedding light on their critical role in accelerating scientific research and innovation.

What is an Absorbance Microplate Reader?

An absorbance microplate reader is a pivotal instrument in the life sciences, designed for quantitatively analyzing biological and chemical samples. It operates on the principle of measuring the absorbance of light, which is the amount of light absorbed by a substance in a microplate. These microplates typically come in formats such as the standard 96-well plates, accommodating multiple samples simultaneously.

The essence of this device lies in its ability to emit light at specific wavelengths through the samples and then detect the intensity of light that passes through, unabsorbed. This functionality is critical for determining the concentration of various substances within the samples, including proteins, nucleic acids, and other molecules of interest.

The absorbance microplate reader has become an indispensable laboratory tool because it can provide rapid and accurate measurements. It supports varied assays, such as ELISA (for detecting antibodies) and protein quantification via the Bradford assay. Its versatility and efficiency in streamlining research and development activities underscore its vital role in advancing the life sciences.

How Does an Absorbance Microplate Reader Function?

Two critical components are at the core of an absorbance microplate reader: the light source and the detector. The process begins with the light source emitting beams at specific wavelengths toward the microplate wells containing the samples under investigation. The selection of wavelengths is crucial and is tailored to target the specific properties of the analyzed substance.

As the light traverses the samples, a portion of it is absorbed, depending on the characteristics of the substance within each well. The remaining light, which passes through unabsorbed, reaches the detector. This is where the instrument measures the intensity of the transmitted light. The principle at play here is straightforward yet profound: the amount of light absorbed by a sample is inversely proportional to the intensity detected by the reader. This relationship, governed by the Beer-Lambert law, allows for the direct correlation of light absorbance to the concentration of the substance in the sample.

This mechanism of action enables the absorbance microplate reader to accurately quantify the concentration of substances within the wells. By comparing the absorbance readings against known standards, researchers can derive precise measurements of their samples' molecular or chemical composition. This functionality is indispensable for conducting a wide range of assays, offering a window into the intricate details of biological and chemical samples.

The Light Source Emits Specific Wavelengths

The light source within an absorbance microplate reader plays a critical role by emitting light at specific wavelengths. This choice of wavelengths is not arbitrary; it is meticulously selected to align with the absorption spectrum of the target substance in the sample. The precision in this selection process is vital, as the absorbance characteristics of a substance can vary dramatically across different wavelengths. By emitting light that matches the optimal absorption range of the substance, the instrument maximizes its sensitivity and accuracy, ensuring reliable detection and quantification of the substance within the samples.

The Detector Measures Light Absorption

Once the light has traversed the sample, the detector measures the light absorption. It quantifies the intensity of light that emerges from the sample, having not been absorbed. This measurement is crucial, as it inversely correlates with the amount of light absorbed by the sample. The principle here is straightforward: the less light detected, the more has been absorbed by the substance, indicating a higher concentration. Through this process, the detector's precise measurements of transmitted light intensity facilitate the calculation of absorbance values, offering a direct quantitative insight into the concentration of the substance in the microplate wells.

What Types of Assays are Absorbance Microplate Readers Used For?

Absorbance microplate readers are invaluable tools in the arsenal of life sciences, facilitating a diverse range of assays critical for research and diagnostics. One of the most prevalent uses is conducting ELISA (Enzyme-Linked Immunosorbent Assay), a fundamental technique for detecting and quantifying antibodies, antigens, and proteins within biological samples. This assay is crucial in fields such as immunology, diagnostics, and vaccine research, where precisely measuring these molecules is essential.

Another significant application of absorbance microplate readers is protein quantification. Techniques like the Bradford assay are widely adopted for their ability to accurately measure protein concentration. They rely on the reader's precision in detecting the light absorbed by the protein-dye complex.

By quantifying how much specific wavelengths of light are absorbed by samples, these instruments provide researchers with quantitative data on the concentration and presence of various substances. Through enabling assays like ELISA and protein quantification, absorbance microplate readers play a pivotal role in advancing research in biochemistry, molecular biology, and pharmacology, among other fields.

ELISA for Detecting Antibodies

The ELISA (Enzyme-Linked Immunosorbent Assay) is a hallmark application for absorbance microplate readers, offering a robust method for detecting and quantifying antibodies. Essential in immunology, diagnostics, and vaccine research, ELISA assays quantify antibodies by employing a specific antigen to capture them from the sample. This process involves a detection system that includes an enzyme-linked secondary antibody and a substrate, which reacts to produce a measurable color change. The intensity of this color change, accurately measured by absorbance microplate readers, directly correlates to the concentration of antibodies, providing invaluable quantitative data.

Protein Quantification via Bradford Assay

For quantifying protein concentration, the Bradford assay stands out as a preferred method, leveraging the capabilities of absorbance microplate readers for accurate measurement. This colorimetric assay is based on the binding of Coomassie Brilliant Blue dye to proteins, which causes a shift in the dye's absorbance maximum. The magnitude of this shift is directly proportional to the protein concentration in the sample. By precisely measuring the intensity of the color change, absorbance microplate readers enable researchers to efficiently determine protein levels, facilitating biochemical and molecular biology research with accurate and reproducible data.

What are the Key Components of an Absorbance Microplate Reader?

The performance and versatility of an absorbance microplate reader hinge on its essential components, each integral to the device's overall functionality. At the heart of its operation lies the optical system, comprised of a sophisticated arrangement of a light source, filters, lenses, and a detector. The light source plays a crucial role, emitting light at wavelengths specifically chosen to match the assay's requirements. After interacting with the samples, the detector measures this light, quantifying the absorbance.

Filters and lenses within the optical system are pivotal, as they adjust the wavelength and focus of the light, ensuring that the measurements are precise and accurate. This level of control is critical for the reliable analysis of sample absorbance.

Another vital aspect is the reader's compatibility with microplate formats, most notably the 96-well plates. This standardization allows for analyzing numerous samples in one run, significantly enhancing the efficiency and throughput of laboratory experiments.

Together, these components form the backbone of an absorbance microplate reader, enabling it to deliver accurate, reliable data. This makes it an indispensable tool in various applications within the life sciences, from drug discovery to diagnostics.

Optical System with Filters and Lenses

Central to the precision of an absorbance microplate reader is its optical system, which boasts an intricate arrangement of filters and lenses. These components are pivotal in tailoring the light that interacts with the samples. The filters are designed to select and permit only specific wavelengths of light to pass through, aligning with the unique requirements of each assay. This specificity is crucial for achieving precise and accurate measurements. Concurrently, the lenses focus this filtered light, optimizing its intensity as it illuminates the sample. This dual functionality of filtering and focusing ensures that the optical system provides a refined and accurate analysis, which is essential for the reliability of assay results.

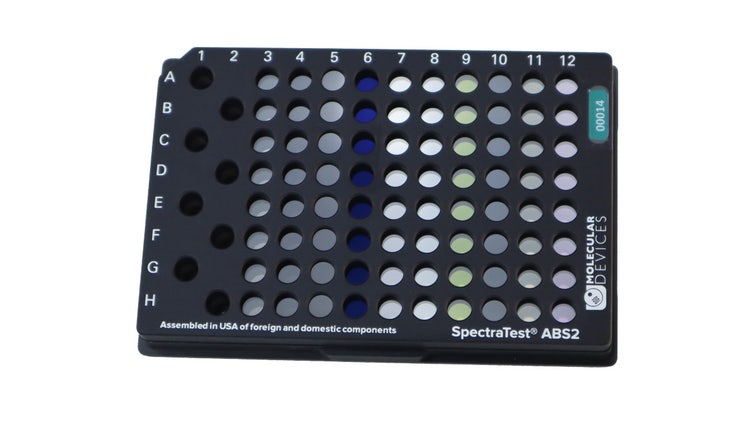

Microplate Format Compatibility: 96-Well Plates

A defining feature of absorbance microplate readers is their compatibility with 96-well plates, a standard that has been widely embraced across research and diagnostic laboratories. This compatibility is a testament to the reader's design, which is meticulously crafted to support the high-throughput needs of modern scientific inquiry. The ability to accommodate 96-well plates means that researchers can analyze multiple samples in parallel, significantly increasing the efficiency and productivity of their experiments. This harmonization with the 96-well format not only streamlines laboratory workflows but also maximizes the data output, reinforcing the absorbance microplate reader's role as an indispensable tool in the life sciences.

How Do You Interpret Data from an Absorbance Microplate Reader?

Interpreting data from an absorbance microplate reader centers on the absorbance values and their correlation to the concentration of the substance within the samples. These values indicate the amount of light absorbed by the sample, which, according to the Beer-Lambert law, is directly proportional to the substance's concentration. To translate these absorbance readings into meaningful data, researchers compare them against a standard curve. This curve plots known concentrations of the substance against their absorbance values, serving as a reference for determining the concentration in unknown samples.

Moreover, absorbance microplate readers use reference wavelengths to adjust for background absorbance. This step is crucial for ensuring that the readings accurately reflect the absorbance due to the substance of interest, free from interference caused by the microplate, solvents, or any assay components. By applying these corrected absorbance values to the standard curve, researchers can accurately quantify the concentration of substances in their samples. This process is essential for deriving valuable insights from the data and guiding further research and analysis.

Absorbance Values Indicate the Concentration

Absorbance values, as measured by an absorbance microplate reader, are a critical indicator of the concentration of substances within samples. These values directly measure the light absorbed by the sample, with higher absorbance pointing to a greater concentration of the target substance. Researchers can accurately determine the substance's presence by leveraging the Beer-Lambert law, which posits a direct proportionality between absorbance and concentration. This determination is facilitated by comparing the sample's absorbance values against a standard curve, effectively mapping known concentrations to their respective absorbance values, thus enabling the precise quantification of unknown samples.

Reference Wavelengths Correct for Background Absorbance/Interference

The use of reference wavelengths is a sophisticated method to correct for background interference in absorbance measurements. This correction is vital for distinguishing the absorbance attributable solely to the substance of interest from that caused by the microplate, solvents, or other assay constituents. Researchers can achieve corrected absorbance values by subtracting the absorbance measured at the reference wavelength from that at the primary measurement wavelength. These corrected values more accurately reflect the true concentration of the substance, ensuring the reliability and relevance of the data derived from absorbance microplate readings.

What Factors Affect the Accuracy of Measurements?

Several key factors play a pivotal role in influencing the accuracy of measurements obtained from an absorbance microplate reader, each critical to the integrity of the data collected. Foremost among these is sample preparation consistency. Variations in how samples are prepared, including differences in volume, concentration, or handling techniques, can introduce significant discrepancies in the results. Achieving uniformity in sample preparation is essential for minimizing these potential errors, thereby enhancing the reliability of the data.

Another crucial factor is instrument calibration and maintenance. Regular calibration of the microplate reader is vital to ensure that the instrument operates within its optimal parameters, accurately reflecting the true absorbance values of the samples. Additionally, routine maintenance, which includes tasks such as cleaning and inspecting the instrument for wear and tear, is indispensable for preventing technical issues that could otherwise skew the results. Together, meticulous attention to sample preparation and diligent instrument care are indispensable in safeguarding the precision and accuracy of absorbance measurements, thereby upholding the validity of scientific research and analysis.

Sample Preparation Consistency

Sample preparation consistency is a cornerstone in ensuring the accuracy of measurements obtained from an absorbance microplate reader. Achieving uniformity across all samples in terms of volume, concentration, and handling is imperative. Variations in these aspects can introduce significant errors, skewing the data. By maintaining consistency in sample preparation, researchers can ensure that the absorbance readings accurately represent the true characteristics of the substances under study, thereby enhancing the reliability and validity of the results.

Instrument Calibration and Maintenance

Instrument calibration and maintenance also critically influence the precision of measurements from an absorbance microplate reader. Regular calibration ensures the reader functions within optimal parameters, capturing true absorbance values with high accuracy. Maintenance tasks, including thorough cleaning and inspections for wear and tear, are essential for identifying and mitigating potential technical issues that could affect measurement accuracy. These practices are vital for sustaining the instrument's performance, ensuring it continues to produce reliable and precise data over its operational lifespan.

Advanced Features of Absorbance Microplate Readers

Modern absorbance microplate readers boast a suite of advanced features that significantly enhance their utility in research and diagnostic settings. Among these, temperature control stands out as a critical function, enabling the precise management of the sample environment. This feature is especially vital for kinetic assays, where accurate temperature conditions are essential for reliable results.

Additionally, introducing a shaking option marks a significant advancement, ensuring that samples are uniformly mixed. This uniformity is crucial for achieving consistent absorbance readings across all wells, thereby enhancing the accuracy and reliability of the data collected.

These advanced features, along with others, not only broaden the scope of applications for absorbance microplate readers but also contribute to generating more accurate and dependable data, supporting the advancement of more complex scientific inquiries.

Temperature Control for Kinetic Assays

Temperature control emerges as a critical advanced feature in absorbance microplate readers, especially for conducting kinetic assays. This functionality precisely regulated the sample environment's temperature, creating ideal conditions for the specific biochemical reactions under observation. Kinetic assays, which depend on monitoring changes in sample absorbance over time, require consistent and accurate temperature settings to yield reliable, reproducible results. Integrating temperature control into microplate readers enhances their applicability and reliability, making them indispensable for these time-dependent assays.

Shaking Option for Sample Mixing

Including a shaking option represents another significant advancement, optimizing sample mixing within the wells. Uniform mixing is paramount for the homogenous distribution of reactants, directly impacting the accuracy of absorbance measurements. This feature allows absorbance microplate readers to deliver more consistent readings across the microplate, mitigating the variability arising from uneven sample distribution. Beneficial in a wide array of assays where precise quantification is key, the shaking option underscores the microplate reader's value as an essential instrument in research and diagnostic laboratories.

Challenges in Using Absorbance Microplate Readers

Despite their invaluable contributions to scientific research, absorbance microplate readers have their own set of challenges. One notable issue is the formation of bubbles in samples, which can dramatically affect the accuracy of absorbance measurements. Bubbles can scatter light, leading to erroneous readings. This necessitates careful sample preparation and handling to minimize the occurrence of bubbles.

Another significant challenge is minimizing cross-contamination between wells. Cross-contamination can compromise the integrity of experiments, resulting in misleading data. To mitigate this risk, practicing meticulous pipetting techniques and utilizing high-quality consumables is essential.

Addressing these challenges is crucial for maintaining the reliability and accuracy of data derived from absorbance microplate readers, thereby upholding their role in propelling scientific discovery forward.

Dealing with Bubbles in Samples

Dealing with bubbles in samples presents a significant challenge when using absorbance microplate readers. Bubbles can cause light to scatter unpredictably, leading to inaccurate absorbance measurements. Careful sample preparation techniques are essential to address this issue. Methods such as gently tapping the sides of the microplate or using a fine needle to puncture and remove bubbles can be effective. These steps are crucial for ensuring that the absorbance data accurately reflects the sample's properties, thereby enhancing the overall reliability of experimental results.

Minimizing Cross-Contamination between Wells

Minimizing cross-contamination between wells is paramount for obtaining reliable data from absorbance microplate readers. Cross-contamination can introduce significant errors, obscuring the true outcomes of experiments. Implementing strict pipetting protocols and utilizing high-quality, disposable pipette tips are key to preventing contamination. Additionally, strategic planning of the microplate layout, including the placement of controls, can aid in identifying and addressing any potential contamination issues. By adhering to these practices, researchers can ensure the integrity of their experiments, leading to more accurate and trustworthy conclusions.

Future Trends in Absorbance Microplate Technology

The trajectory of absorbance microplate technology is set towards embracing innovative advancements that promise to redefine its role in the life sciences. A key trend on the horizon is the integration with automated lab systems, a development aimed at enhancing efficiency and throughput. This integration facilitates automated workflows that significantly reduce the need for manual intervention, thereby minimizing potential errors and streamlining operations in high-throughput settings.

Another emerging trend is the development of multi-mode readers. These sophisticated instruments expand beyond traditional absorbance measurements to include other detection methods, such as fluorescence and luminescence. This versatility allows researchers to conduct a broader spectrum of assays on a single platform, offering a more comprehensive and efficient approach to experimental analysis.

Together, these future trends highlight a shift towards more versatile, efficient, and reliable absorbance microplate technology. As these advancements materialize, they hold the promise of propelling scientific research and diagnostics into new realms of possibility, making absorbance microplate readers even more indispensable in the pursuit of scientific discovery.

Integration with Automated Lab Systems

The integration with automated lab systems marks a pivotal future trend in the evolution of absorbance microplate technology. This advancement is geared towards optimizing laboratory workflows, significantly enhancing efficiency and throughput. This integration minimizes manual intervention by automating a range of processes, from sample preparation to final analysis, reducing the likelihood of errors and accelerating the pace of scientific research and diagnostics. Emphasizing a shift towards high-throughput, automated environments, this trend underscores the growing demand for precision and speed in the life sciences.

Development of Multi-Mode Readers

The development of multi-mode readers is another forward-looking trend that promises to expand the utility of absorbance microplate technology. These innovative instruments combine the traditional absorbance measurement capabilities with other detection modalities, such as fluorescence and luminescence, all within a single platform. This multifunctionality allows for a more comprehensive array of assays to be conducted efficiently, eliminating the need for multiple specialized devices. Reflecting a broader trend towards enhanced functionality and streamlined operations, multi-mode readers are set to broaden the horizons of absorbance microplate technology, facilitating a wider range of scientific exploration and discovery.
