K3C & K3M The Microscope Camera K3 series
The K3 color and monochrome cameras are your solutions for fast and reliable analytical tasks typically done for life science, industrial, and clinical applications. These cameras empower you to image a vast range of challenging samples with color-brightfield and fluorescence microscopy. Examples include fluorescently labeled and stained tissues and cells, particles for cleanliness analysis, steel, and forensic evidence.
Leica K3C
A 6.3 MP color camera that delivers a well-balanced feature set with high frame rates, good dynamic range and true color reproduction for life science and industry applications. It's ideal for imaging samples like tissue and cells as well as cleanliness, metal alloys, especially steel and forensics. - color CMOS sensor - Pixel size 2.4 µm x 2.4 µm - Color filter RGB (Bayer) - Color depth 3x12 bits - Exposure time 1 ms - 1 s - Dynamic range >72 dB - Fast live image 3072 x 2048 pixel with up to 15 frames per sec (software-triggered and depending on the bit depth, exposure time and PC performance) - Gain 1x - 251x - Supported operating systems Win10 Recommended c-mount adapters: Stereo Microscope: 0.50x No 10450528 Compound Microscope: 0.55x No: 11541544 Interface: USB3 The K3C camera kit includes camera head, USB3 cable with screw-lock connectors, DVD with instruction for use, and a quick start guide.
Leica K3M
A 6.3 MP monochrome camera that delivers a well-balanced feature set with high frame rates, good dynamic range for life science applications. It's ideal for imaging fixed fluorescently labelled sampled like tissue and cells. K3M supports hardware triggering for high-speed scanning imaging experiments. - Monochrome CMOS sensor - Pixel size 2.4 µm x 2.4 µm - Bit depth 12 bits - Exposure time 1 ms - 1 s - Dynamic range >72 dB - Fast live image 3072 x 2048 pixel with up to 21 frames per sec (hardware-triggered and depending on the bit depth, exposure time and PC performance) - Gain 1x - 251x - Supported operating systems Win10 Recommended c-mount adapters: Stereo Microscope: 0.50x No 10450528 Compound Microscope: 0.55x No: 11541544 Interface: USB3 The K3M camera kit includes camera head, USB3 cable with screw-lock connectors, DVD with instruction for use, and a quick start guide.
Customized for your specific needs
The K3C color CMOS camera provides a well-balanced feature set with high frame rates, very good dynamic range, and excellent color reproduction. It delivers 12-bit/channel RGB quantifiable images. With the K3C & K3M microscope camera you can get an imaging system that is customized for your specific needs. You can scan and stitch images of large format samples in half the time compared to previous generation cameras. The K3C & K3M cameras are excellent, easy-to-use and set-up, low-noise devices. Either color camera K3C or monochrome camera K3M can act as a workhorse for your laboratory or site.
Fast and reliable analysis
Acquiring quantifiable data from challenging samples
The K3C color and K3M monochrome cameras offer very good dynamic range enabling you to capture quantifiable images for downstream analysis for many challenging samples. Whether you image material samples which are highly reflective or light-absorbing surfaces or fluorescent samples with regions of very bright and weak signals, the K3C color and K3M monochrome cameras are up to the challenge.
Excellent true color reproduction
The 12-bit excellent color reproduction ability of the color K3C camera enables you to capture large color depth and extract more detail from your samples.
Samples and specimens often contain subtle color variations which allow you to distinguish between different features and regions of interest and work out what is really going on in transitions zones between various parts of the specimen.
Improve your throughput
Samples of interest can be large and need to be imaged in high resolution, requiring a system capable of area scanning and image stitching.
The large sensor and high frame rates make the K3C color and K3M monochrome cameras ideal for area scanning applications when combined with the LAS X Navigator and Steel/Cleanliness Expert software modules.
K3C – Compatible with TWAIN
TWAIN is a protocol that enables communication between software and selected Leica Microsystems microscope cameras. It allows you to process images with your preferred software later on.
Take advantage of your camera’s TWAIN capability to control the camera, acquire images, and transfer image data to various repositories for analysis and archiving. For example, easily store images to your Laboratory/Hospital Information Management System (LIS/HIS/LIMS).
For Life Science and Industry Imaging Applications and Analysis
Fast and reliable analysis
Acquiring quantifiable data from challenging samples for improved throughput
Excellent true-color reproduction
The 12-bit excellent color reproduction ability of the color K3C camera enables you to capture large color depth and extract more detail from your samples
One camera series – multiple applications and workflows
Flexibility to image a large range of samples for life science, industrial, and clinical applications
K5 Scientific CMOS Microscope Camera
Discover the K5 sCMOS Microscope Camera: 4.2MP resolution, 80% quantum efficiency. Ideal for fluorescence imaging, immunostaining, and 3D cell cultures.

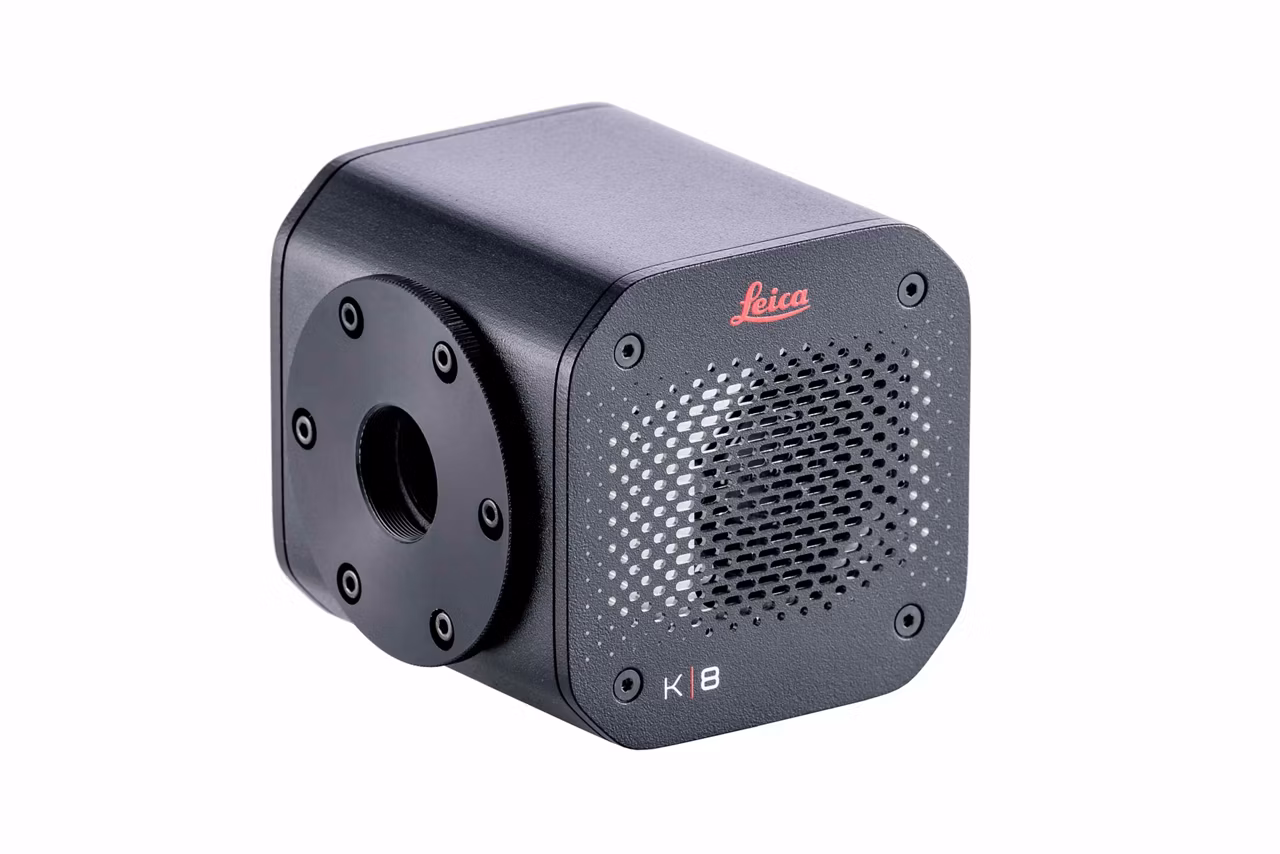

K8 Scientific CMOS Camera
Discover the K8 Scientific CMOS Camera for life science imaging. Achieve 95% quantum efficiency, low read noise and reduced phototoxicity. Request a quote!

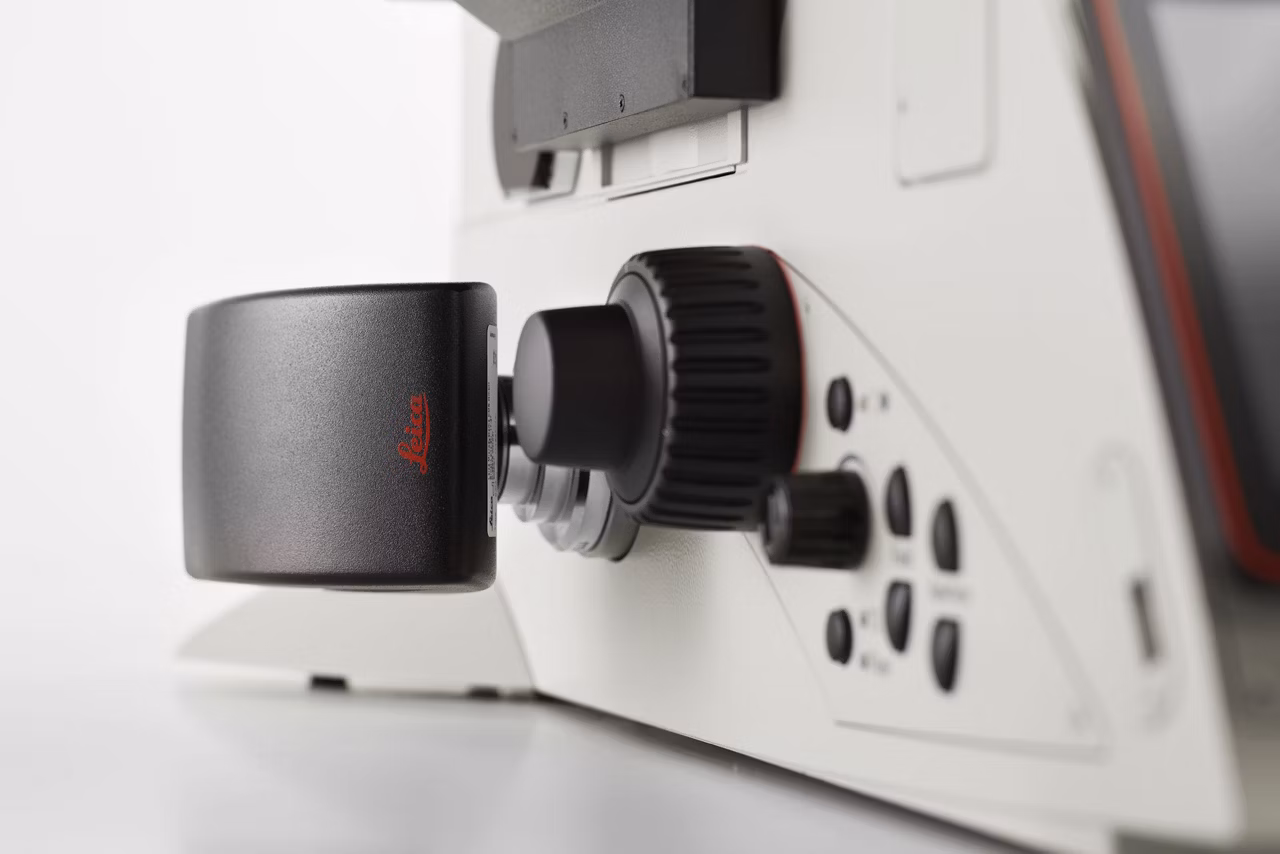

K5C The Color CMOS Camera
Capture high-res 20 MP images with the K5C color CMOS camera. Features 32 fps live imaging, USB 3.0, TWAIN support, and LAS software compatibility.

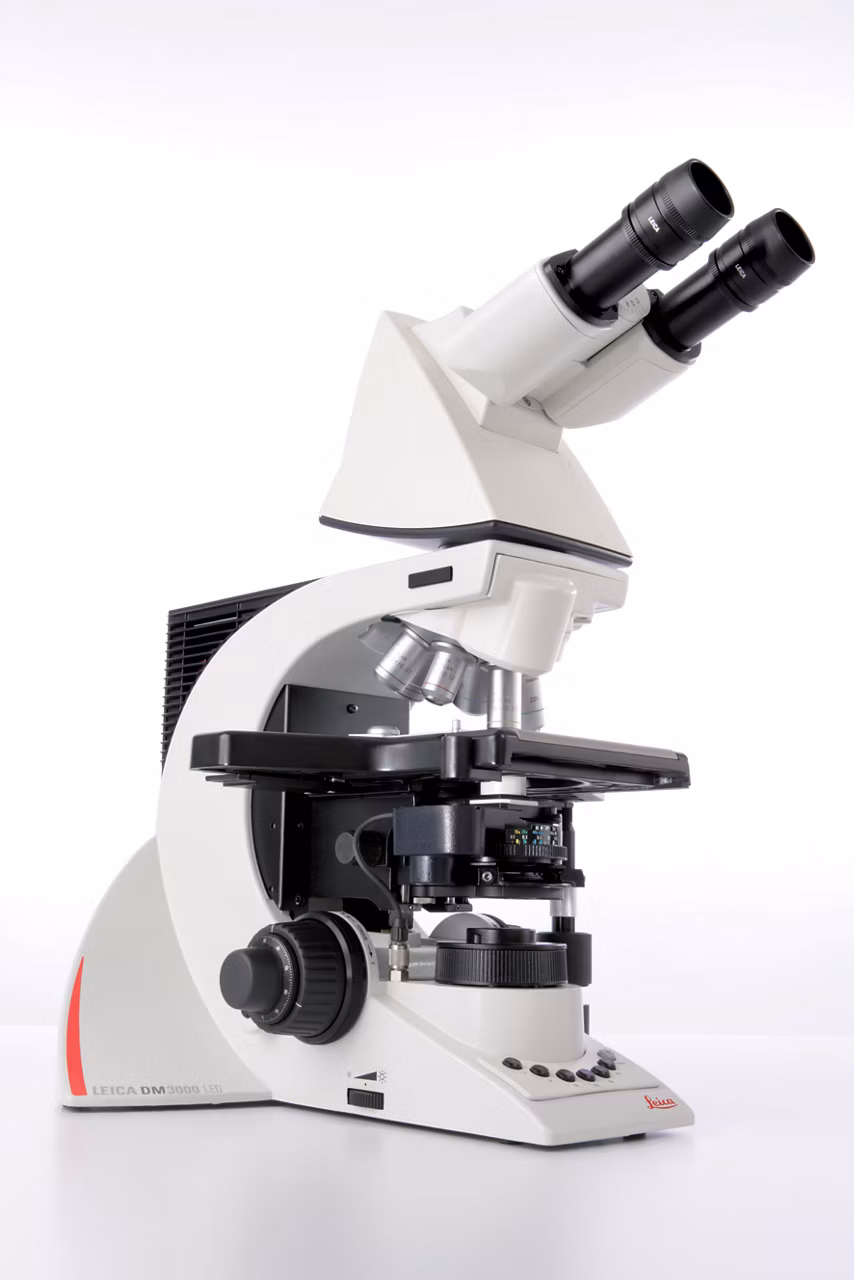

Leica DM3000 & DM3000 LED Uniquely Ergonomic System Microscopes With Intelligent Automation
DM3000 LED microscopes enhance lab workflows with automated light adjustment and ergonomic design. Ideal for pathology and cytology. Request a quote!

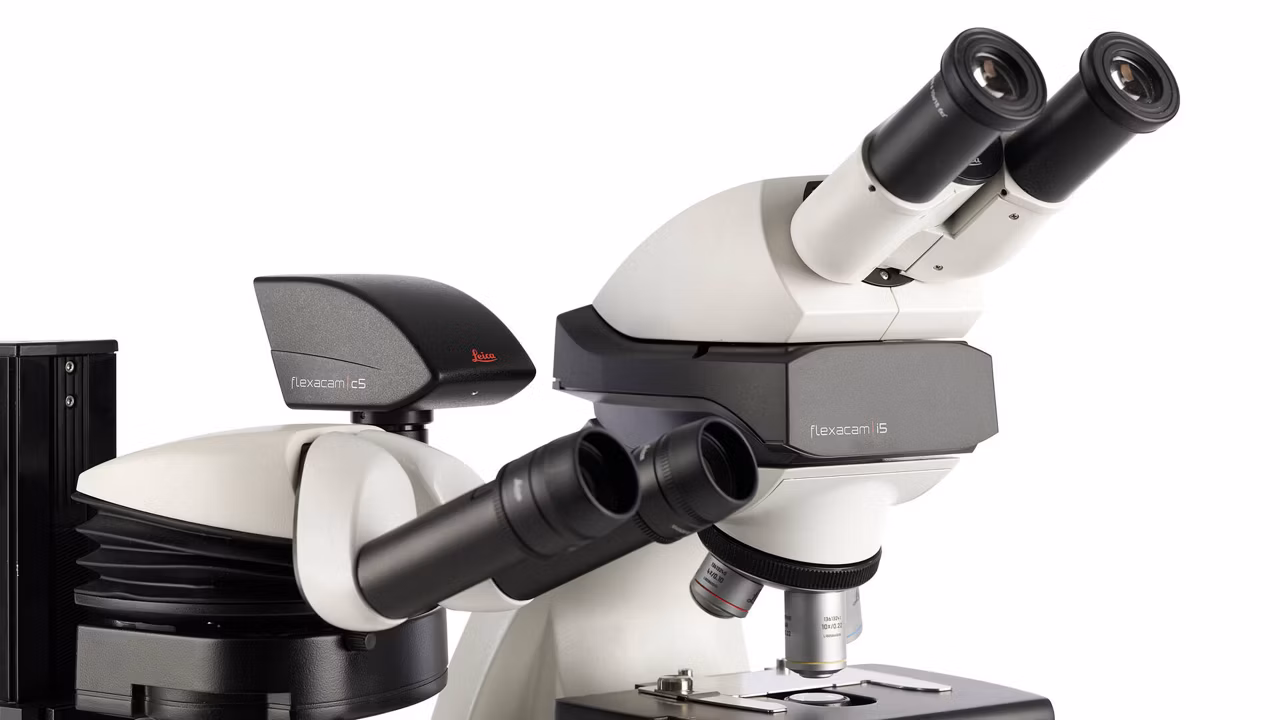

Flexacam c5 & i5 Microscope Cameras
With Flexacam microscope cameras, you can reveal more sample insights and work the way that meets your needs. Learn more!

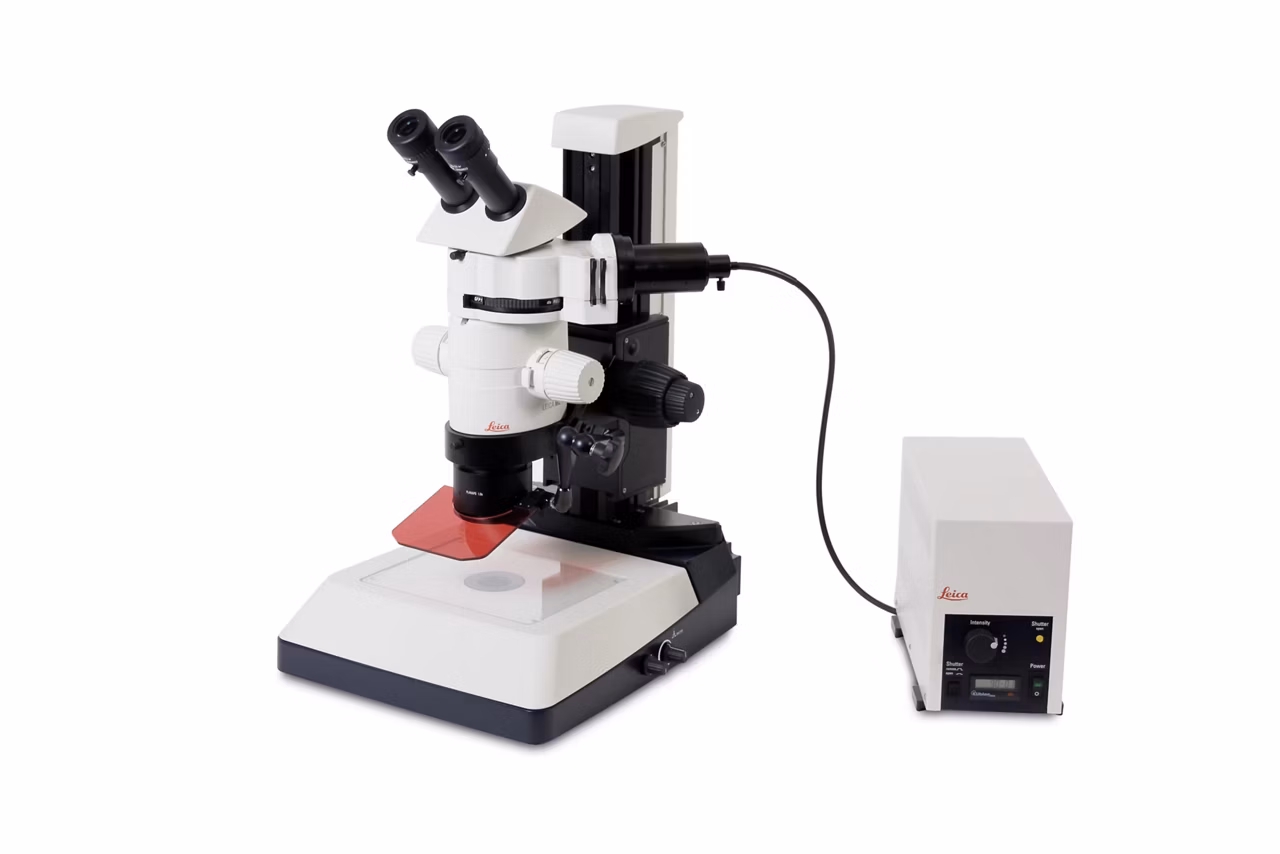

MZ10 F Modular Stereo Microscope
Leica MZ10 F Stereo Microscope for Fluorescent Imaging has a dedicated beam path and rapid filter changer for high contrast results. Request a quote.

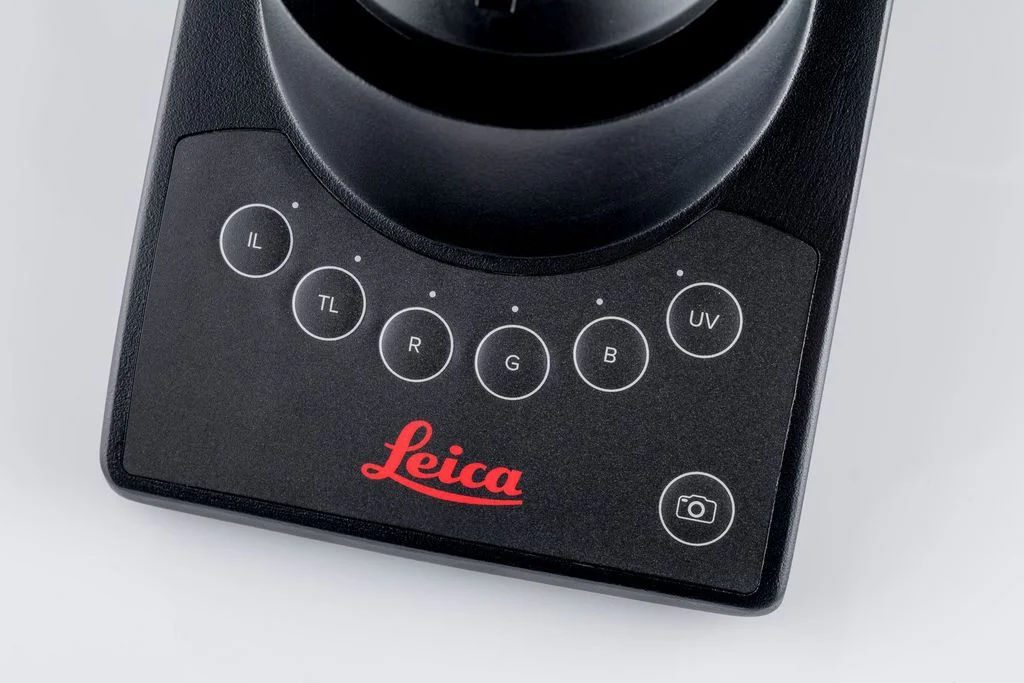

Visoria P Polarization Microscope
Visoria P Polarization Microscope for investigating birefringent materials with encoded functions and ergonomic design. Request a quote.

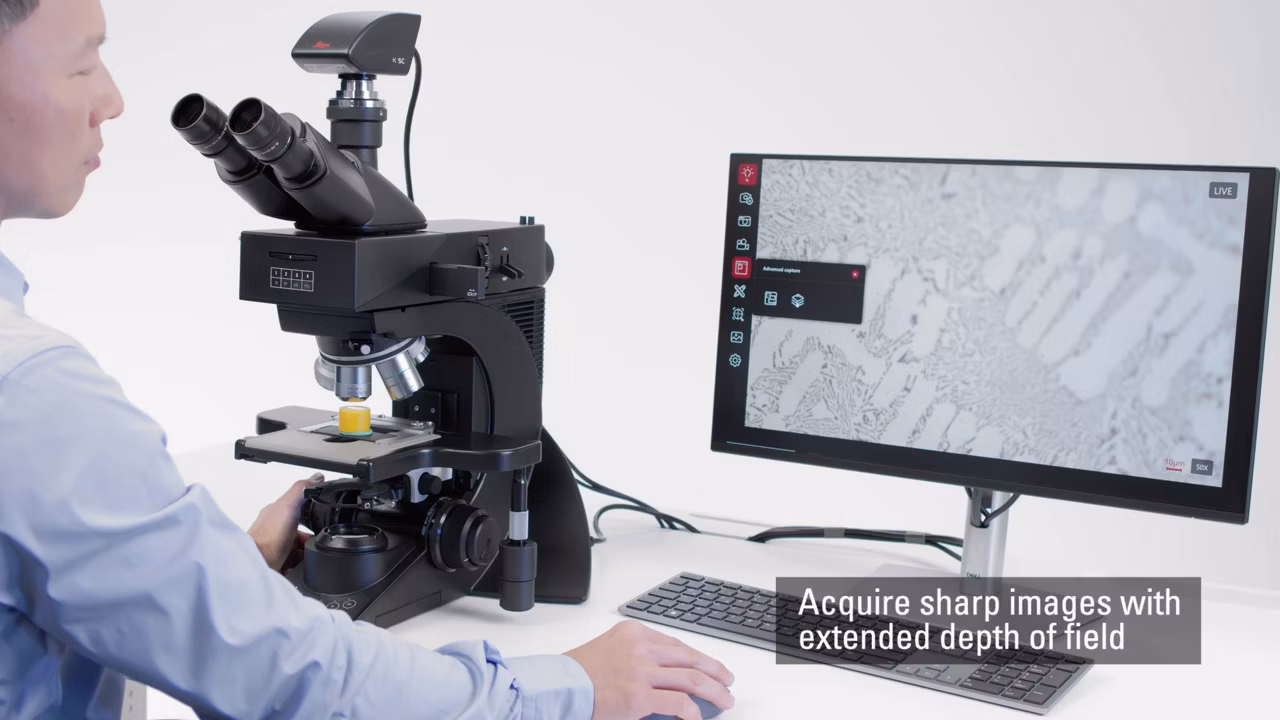

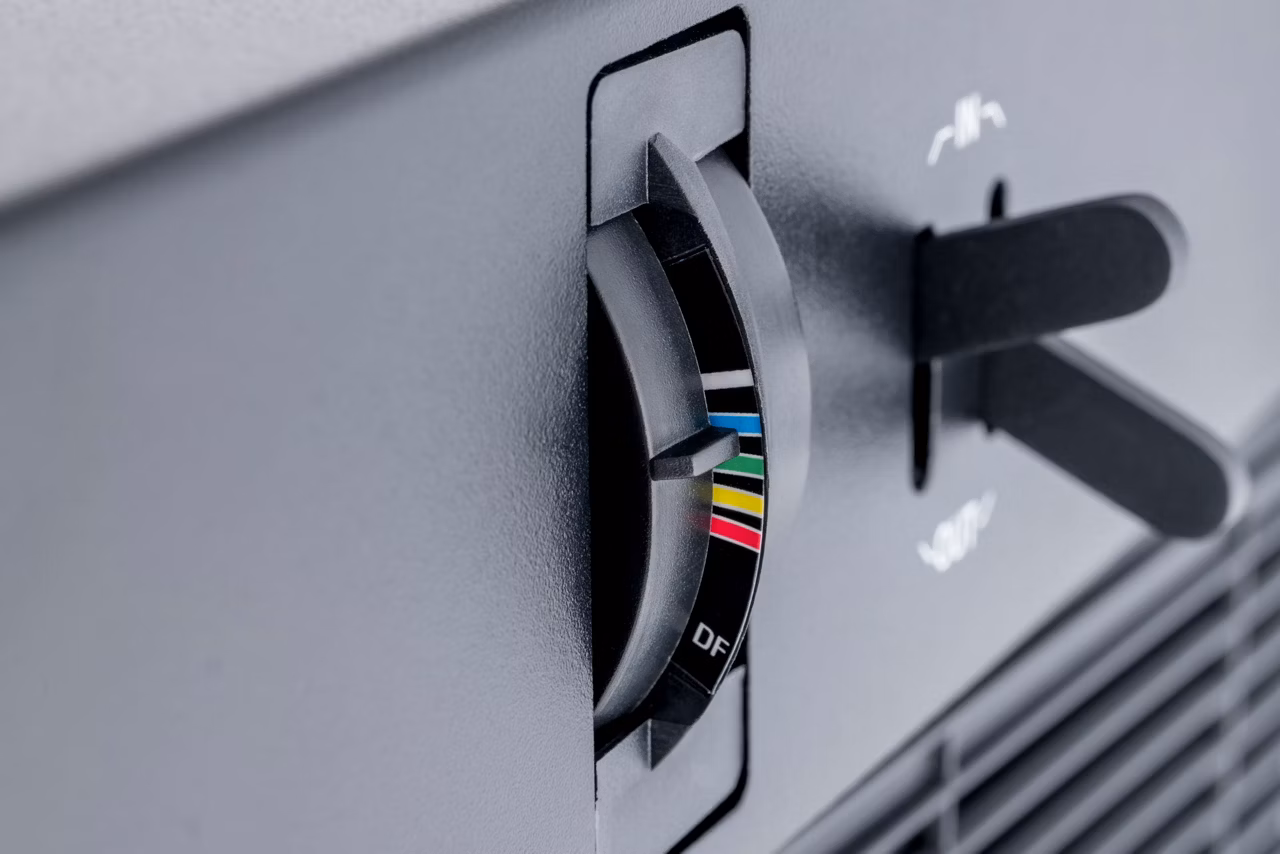

Visoria M Materials Microscope
