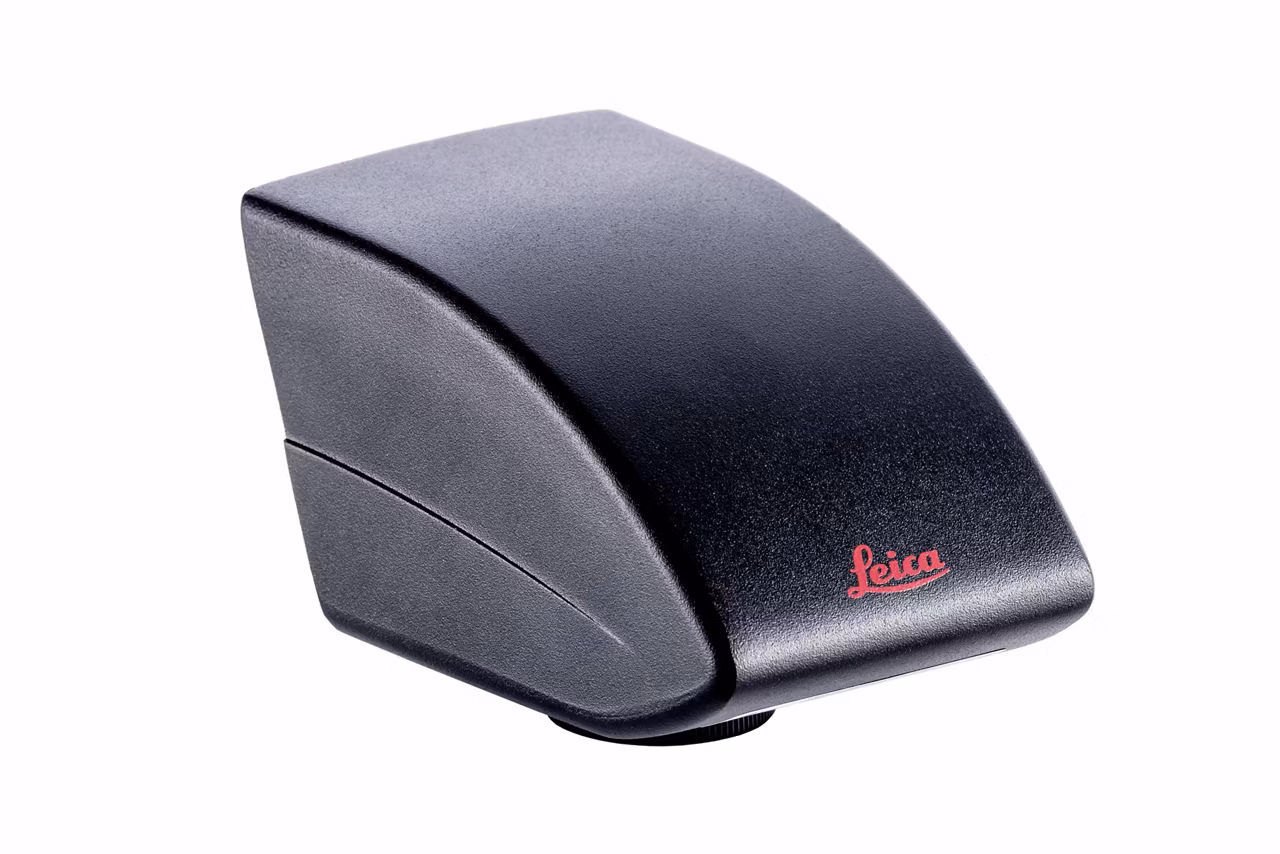

Leica K3C
$undefined
A 6.3 MP color camera that delivers a well-balanced feature set with high frame rates, good dynamic range and true color reproduction for life science and industry applications. It's ideal for imaging samples like tissue and cells as well as cleanliness, metal alloys, especially steel and forensics.
- Color CMOS sensor
- Pixel size 2.4 µm x 2.4 µm
- Color filter RGB (Bayer)
- Color depth 3x12 bits
- Exposure time 1 ms - 1 s
- Dynamic range >72 dB
- Fast live image 3072 x 2048 pixel with up to 15 frames per sec (software-triggered and depending on the bit depth, exposure time and PC performance)
- Gain 1x - 251x
- Supported operating systems Win10
Recommended c-mount adapters:
- Stereo Microscope: 0.50x No 10450528
- Compound Microscope: 0.55x No: 11541544
Interface: USB3 The K3C camera kit includes camera head, USB3 cable with screw-lock connectors, DVD with instruction for use, and a quick start guide.
| Sensor Type | CMOS |
| Snesor Size | 8.92mm |
| Sensor Format | 3072px x 2048px |
| Sensor Cooling | Passive |
| Shutter Mode | Rolling, Global |
| Exposure Range | 1 ms - 10 s |
| Pixel Dimensions | 2.4 μm x 2.4 μm |
| USB Connectors | 1 |
| Mechanical Interface | C-mount |
| Binning Options | 2 x 2 |
| Optical Filter | 650 nm IR |
| Operating System | LAS X |
| Power Consumption | 3 W |
| Operating Tempreature | 5 - 40 C |
| Dark Current | 2.8 e- |
| Maximum Full Well Capacity | 14000 e- |
| Dynamic Range | 72 dB |
