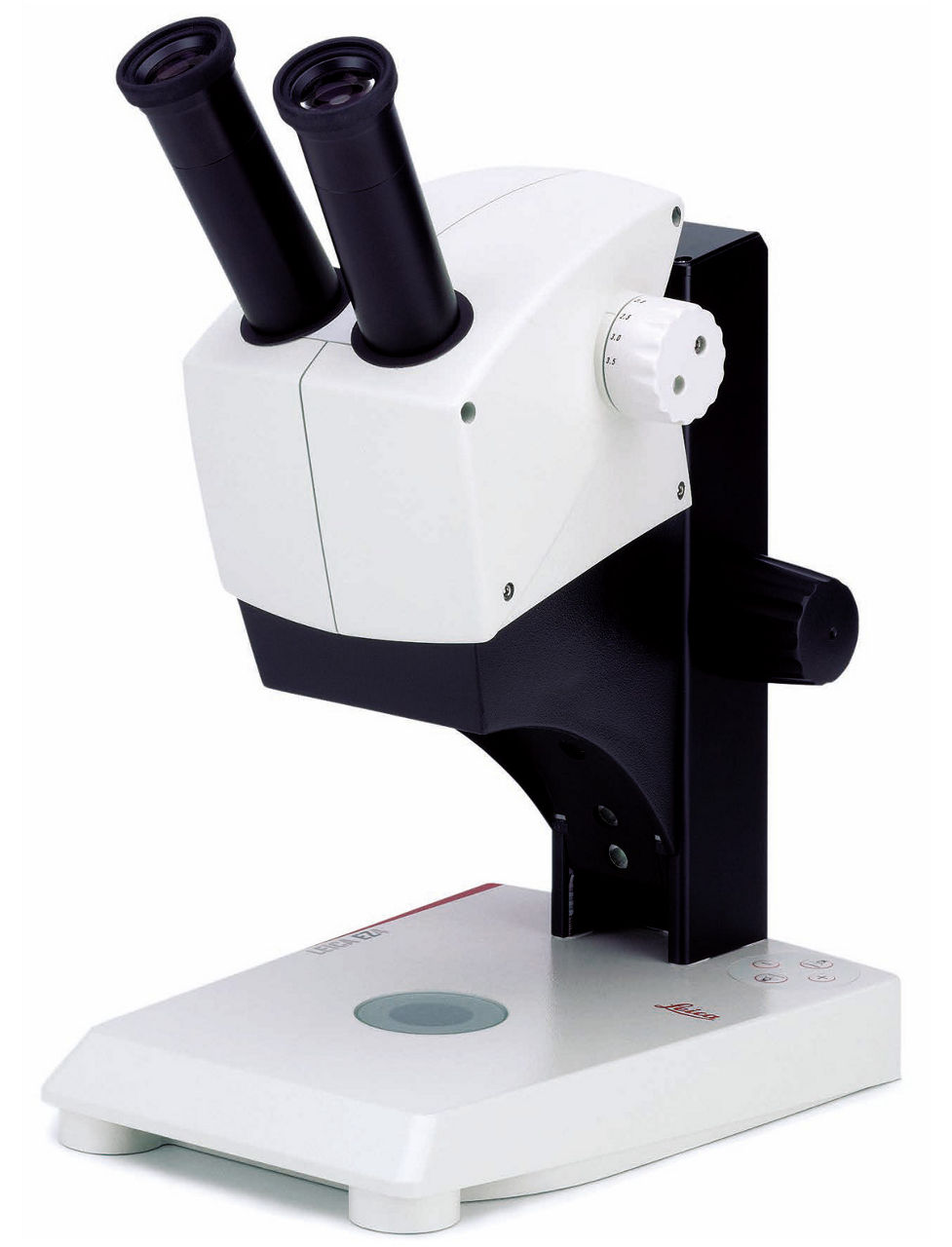

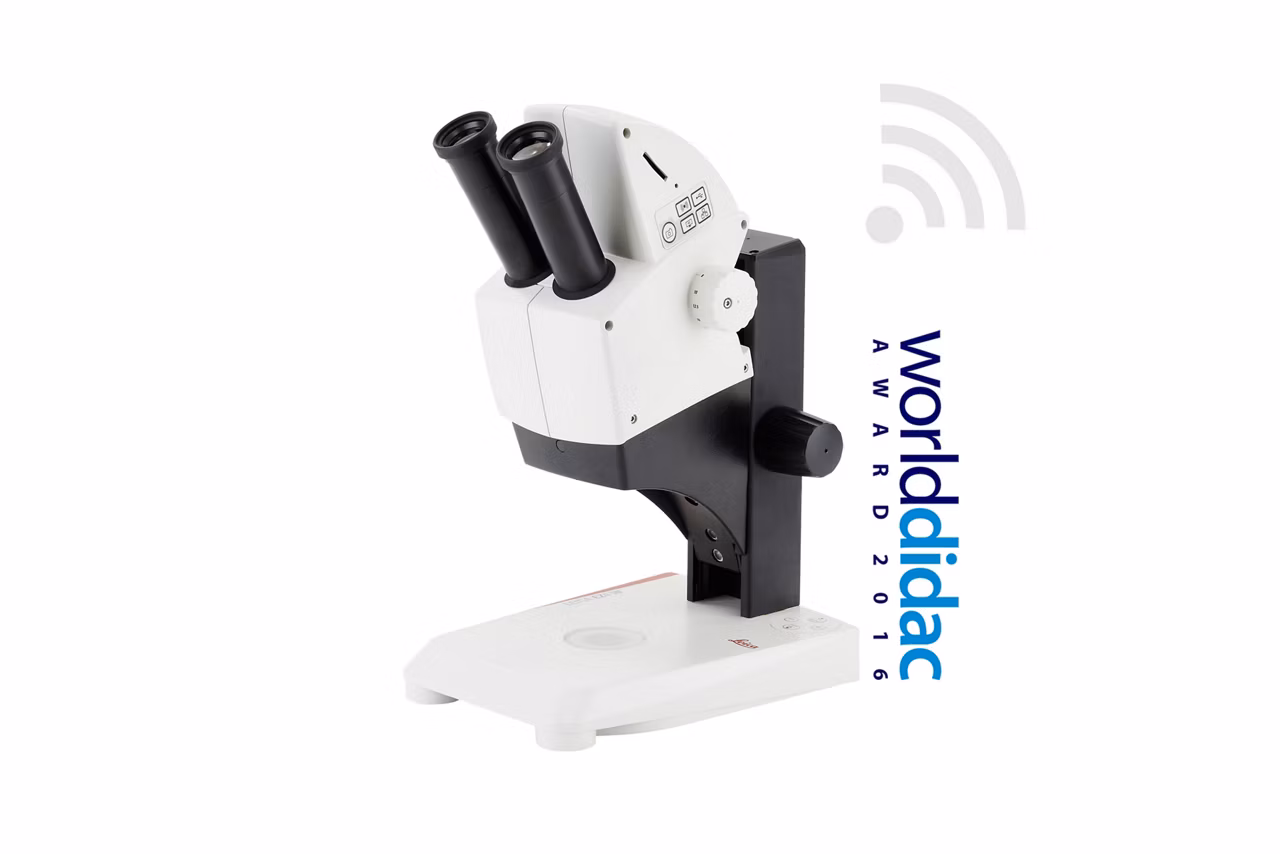

Leica EZ4 W & EZ4 E Educational stereo microscopes for college & university

Stereo Microscopes for Assembly, Inspection, and Quality Control

Mechanical precision provides decades of maintenance-free operation. Ideal for learning and performing quality control and routine laboratory techniques.

Teaching and learning made easy

Students do not need specialized microscopy skills: Observing magnified views of whole objects such as plants, microorganisms and minerals opens whole new perspectives that would not otherwise be available to the unaided eye.

Innovative LED illumination technology

As small as they may be, LEDs are true power packs in every respect: they last longer than incandescent lamps, use less energy, stay cool and require no maintenance. 7- way LED illumination – provides incident, oblique and transmitted light for high quality illumination and contrast of any application.

Dependable and rugged for industry and routine research

Leica Microsystems presents four affordable stereo microscopes featuring renowned Leica Zoom® performance for industrial quality control and routine laboratory applications.

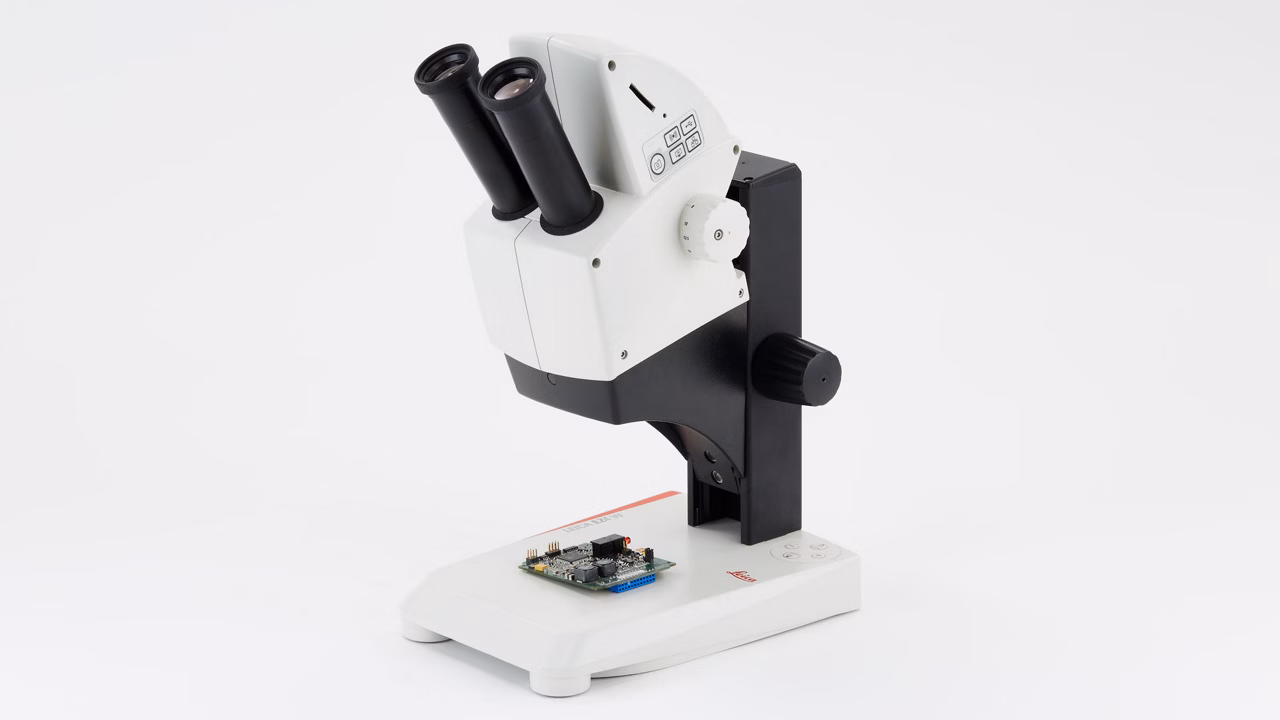

Leica EZ4: Reliable Routine Inspection

• EYEPIECES:

Provide optimal viewing for those with and without eyeglasses; Soft eyecups protect eyeglasses and can be removed and cleaned; Sealed in place (exception: Leica EZ4 with open eyepiece tubes); Feature 60° viewing angle and adjustable interpupillary distance from 50 mm to 75 mm

• ILLUMINATION & MICROSCOPE STAND:

LED incident light and transmitted light illumination can be activated independently or combined; membrane keypad provides comfortable control; Base provides excellent stability and has an integrated low handrest for comfort; Water-tight glass stage plate and membrane keypad are sealed to prevent accidental damage from spilled liquids and are easy to clean; Vibration-resistant feet prevent sliding and movement while adjusting the instrument; Built-in hand grip provides easy, safe carrying and transport

• OPTICS:

Features a 4.4:1 zoom range; Magnification changer remains sensitive, precise, and smoothly adjustable, even after years of intense use; Tension adjustable focus drive is easy to move for comfortable focusing; Renowned Leica image quality, resolution, and detail definition

Teaching and learning made easy

The Leica educational stereo microscopes are compact, rugged and designed to be handled by students, without individual parts requiring assembly or that can be removed easily. Simply place it on a solid tabletop, plug in the power cable, and the instrument is ready to use. The stereo microscope’s use is uncomplicated and self-explanatory. After all, we want you and your students to experience the wonders of the microscopic world without long preparatory work.

Perfect illumination in every situation

Maximum variability

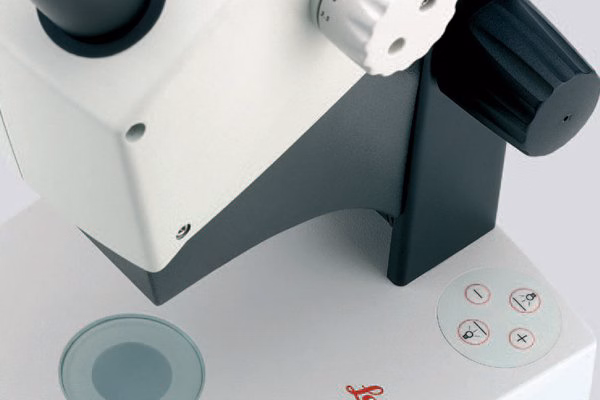

Innovative LED illumination provides many options. The built-in incident light can be used individually or in combination with the transmitted light version. The image does not reflect the incident light LEDs in the glass stage plate. It is also possible to dim the light to desired brightness. With the membrane keypad, illumination settings are easily and exactly reproduced.

Realistic illumination

The Leica EZ4, Leica EZ4 W or Leica EZ4 E use the most modern LED technology that provides the light spectrum of daylight which allows you to evaluate and compare samples in true color. Since the illumination is not UV or infrared, warming is minimal and temperature-sensitive samples are well-protected.

Maintenance-free for life

Compared to incandescent light, the light-emitting diodes used in the Leica EZ4, Leica EZ4 W or Leica EZ4 E are insensitive to vibration. They have a minimum lifespan of 25,000 hours with constant color temperature throughout their entire life. Due to low heat generation and efficient heat management, Leica EZ4, Leica EZ4 W or Leica EZ4 E do not require a fan. The viewed image remains current-free, and digital recordings are vibration-free.

7-way LED illumination

7- way LED illumination – provides incident, oblique and transmitted light for high quality illumination and contrast of any application.

Dependable and rugged for industry and routine research

Manufacturers depend on affordable and reliable quality control to insure production profitability. Visual quality control is an important part of a consistent quality management process.

The Leica E Series is designed to help you eliminate expensive quality defects, waste, and insufficient productivity. For R&D, the dependable, maintenance-free Leica E Series ensures efficient laboratory operations while minimizing downtime. Providing a bright object field that is rich in detail and a great working distance that allows a variety of microscope tools, the Leica E Series is ideal for sample identification and sorting.

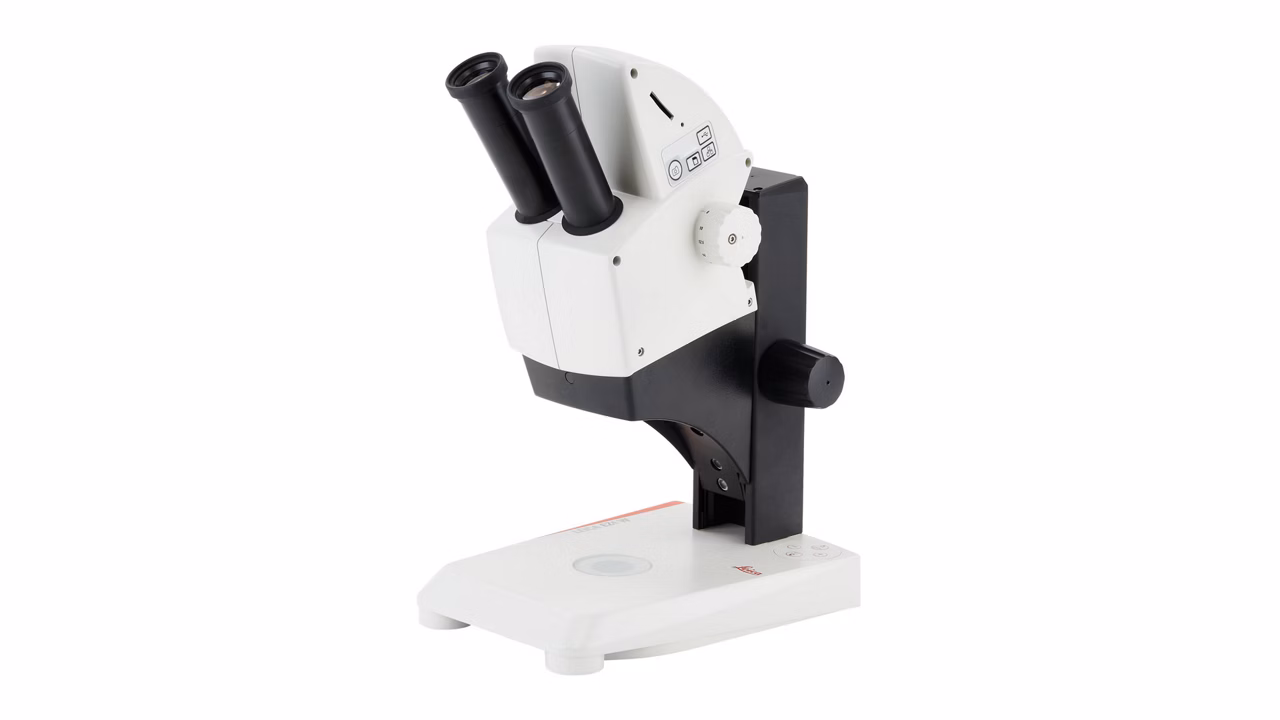

Leica EZ4 W and Leica EZ4 E – Digital documentation made easy

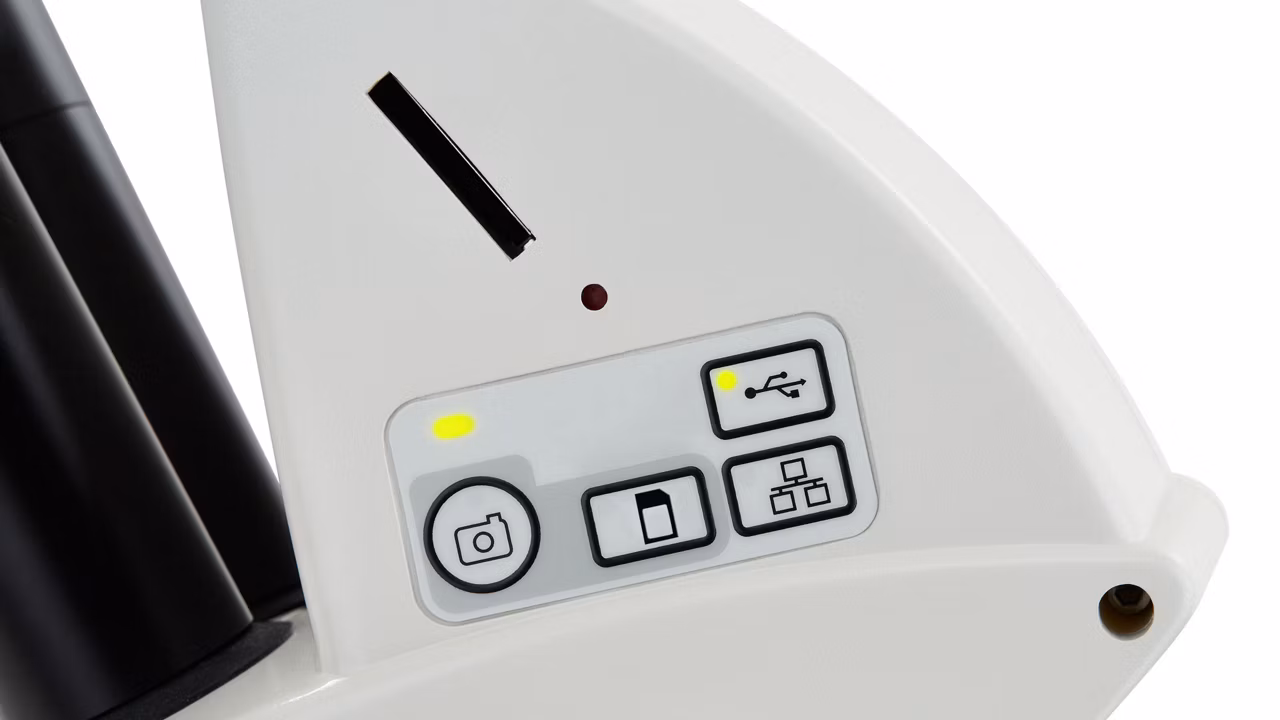

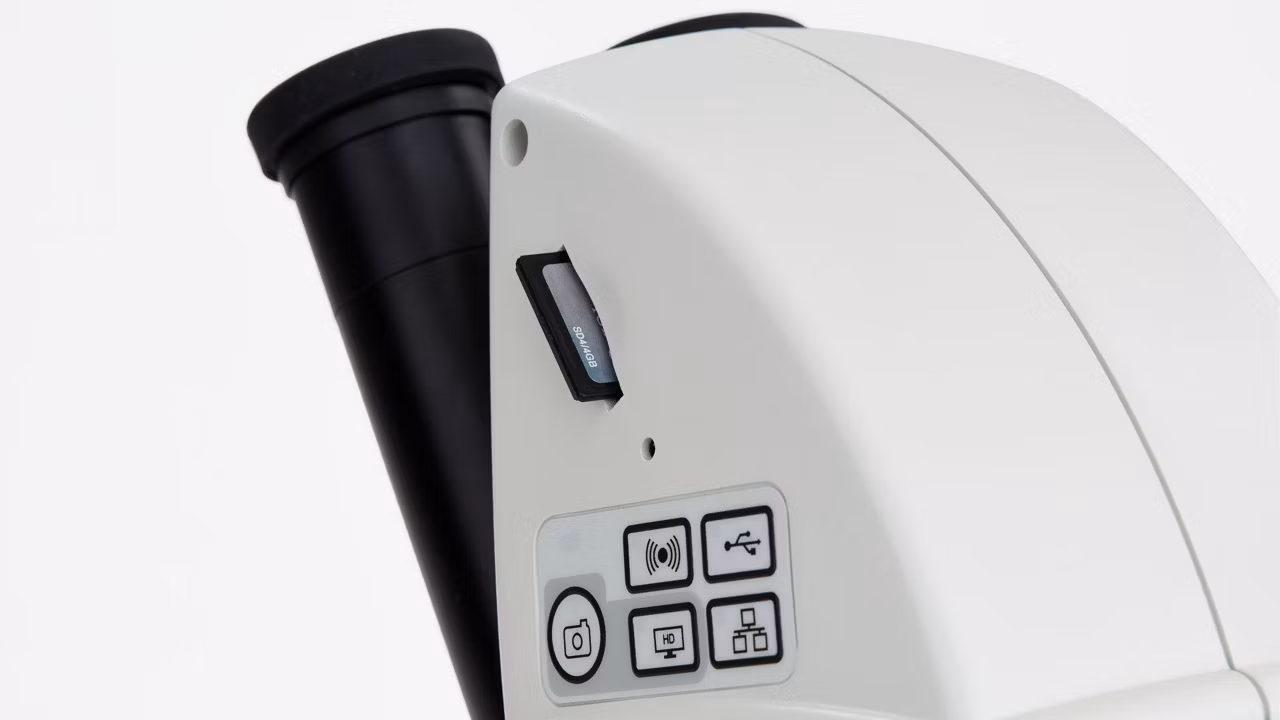

The Leica EZ4 W or Leica EZ4 E camera offers an economical, integrated solution for viewing fast live images in High Definition (HD). The complete system allows the user to view specimens on a High Definition display and through the eyepieces, with or without a computer connection for versatile work station possibilities.

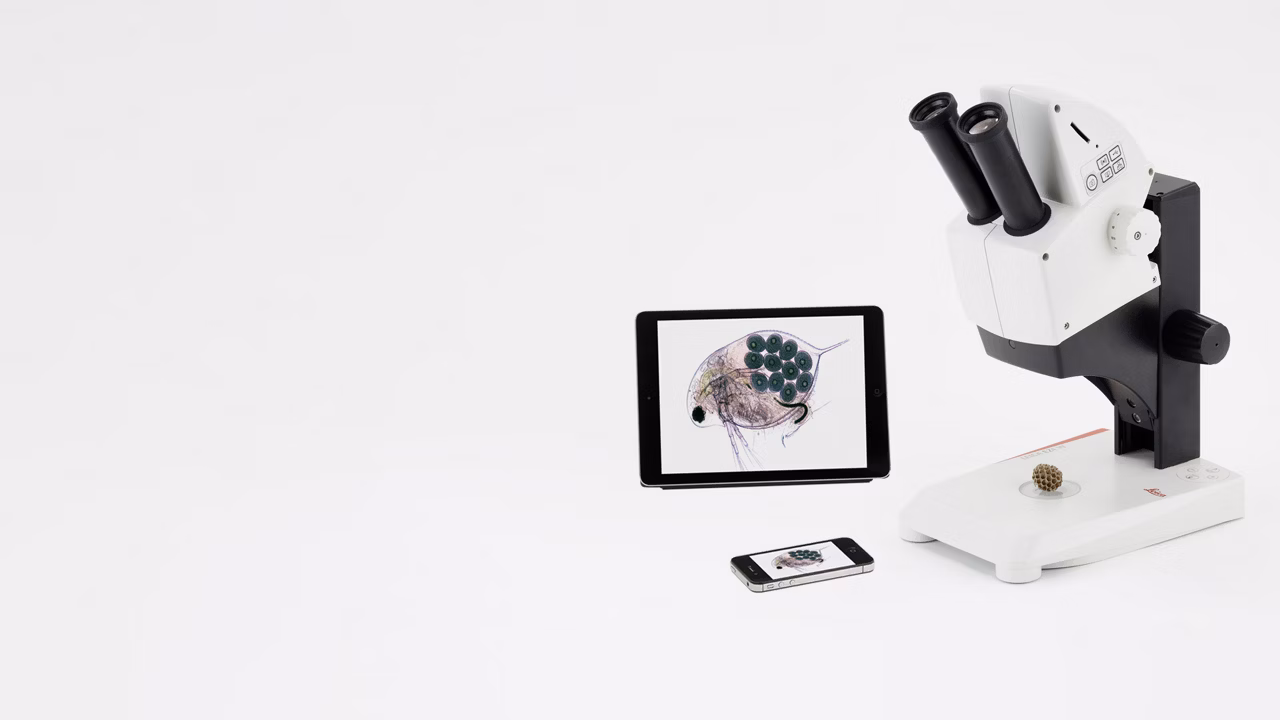

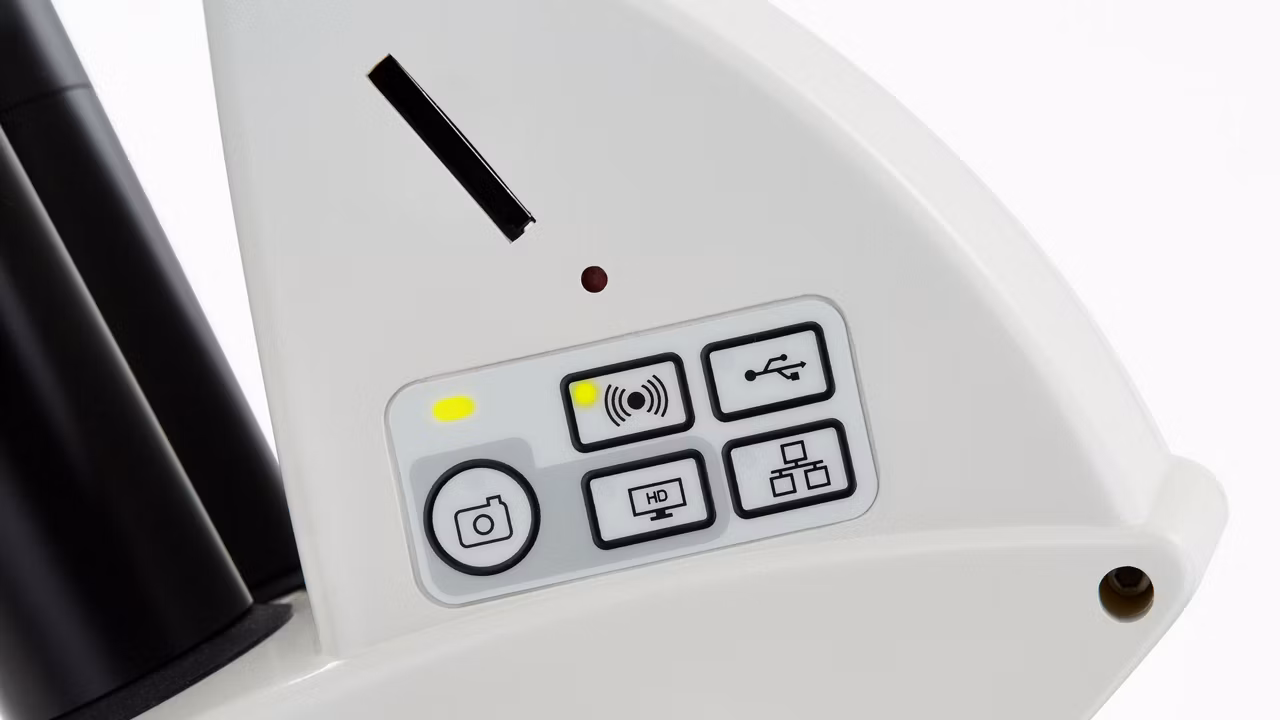

• Leica EZ4 W: Users can connect to the Leica EZ4 W either through its own internal Wi-Fi signal using Wi-Fi mode or through the facilities' network using Ethernet mode.

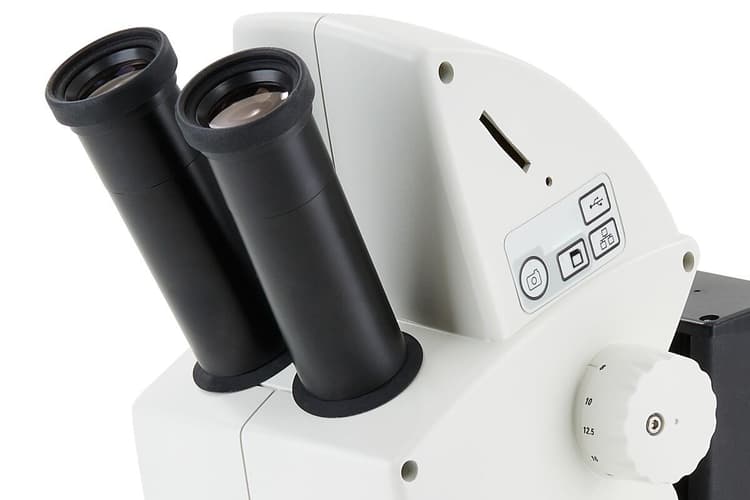

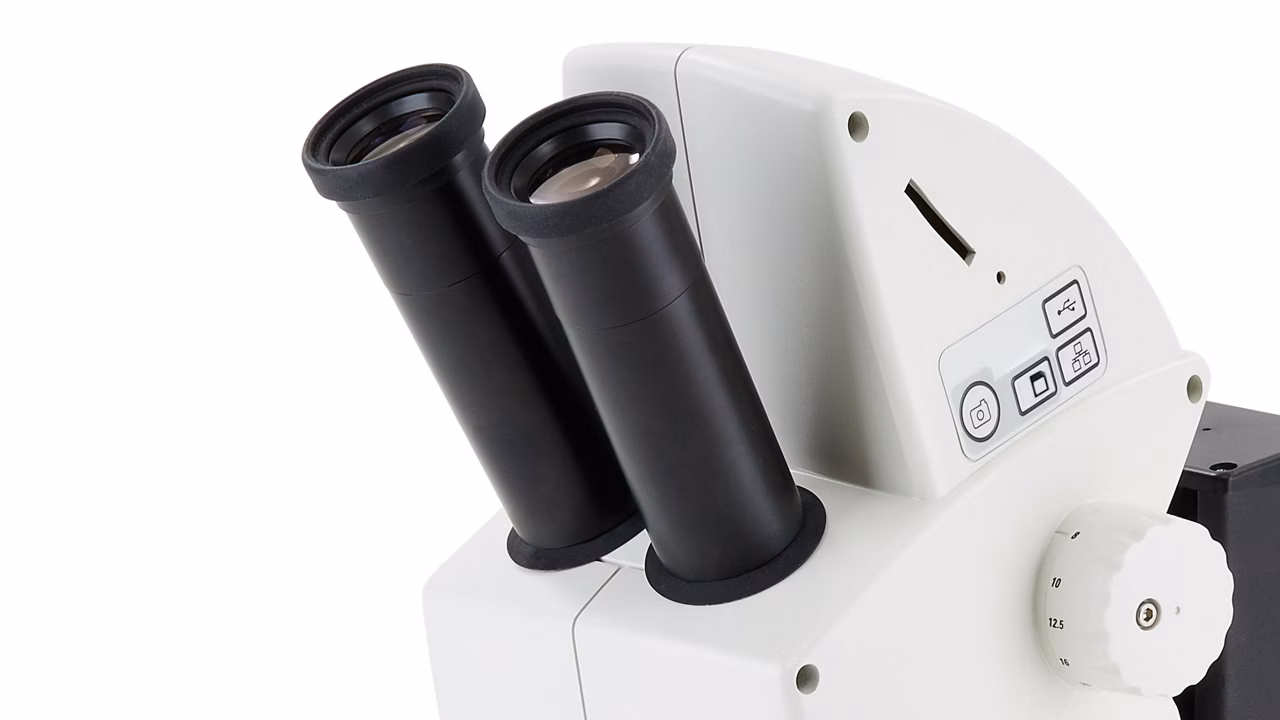

• Leica EZ4 E: The EZ4 E exclusively uses your facilities' network (WLAN or LAN) to allow users to connect to the microscope. This is an ideal solution if you don't want to add additional Wi-Fi access points to your network.
