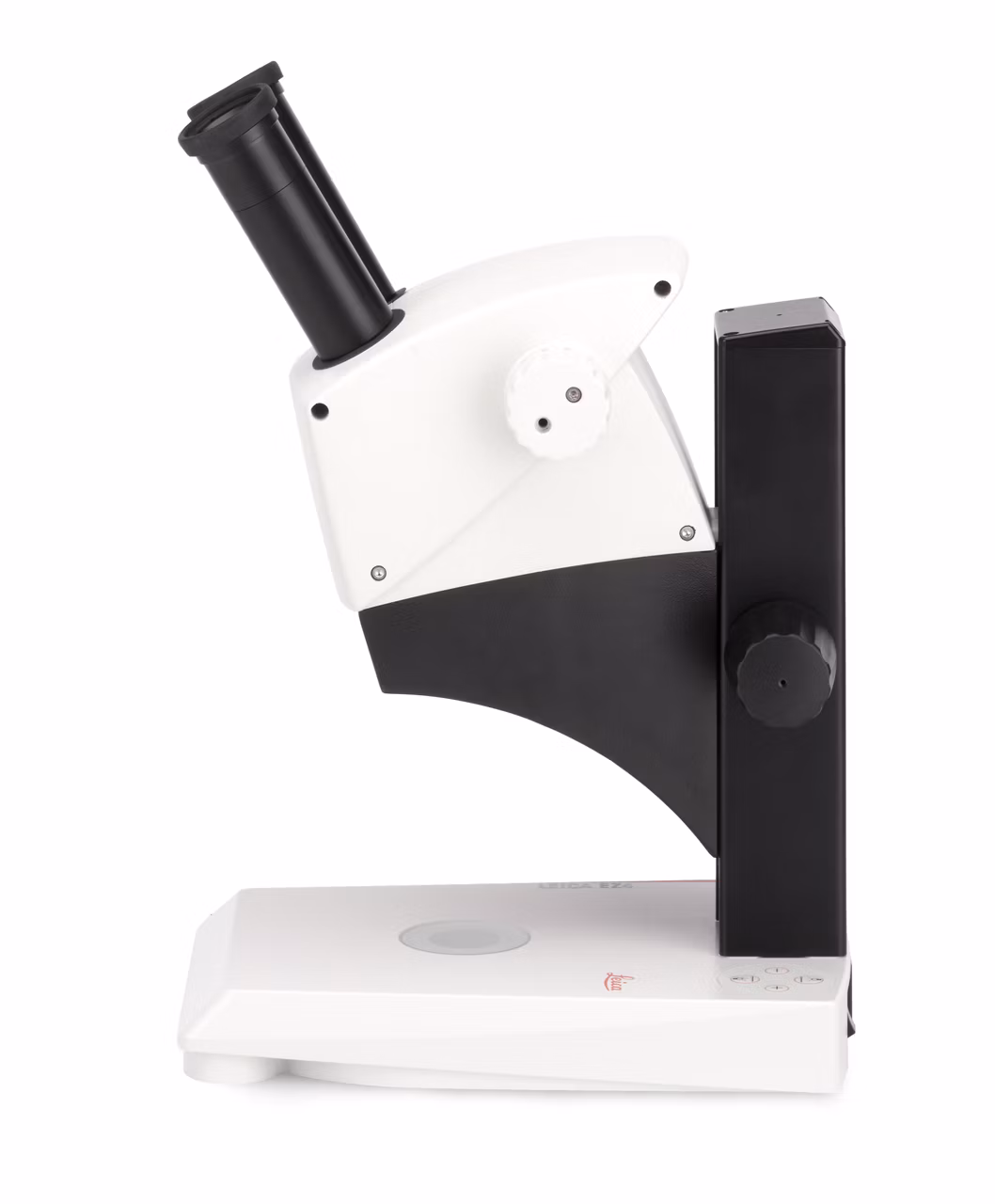

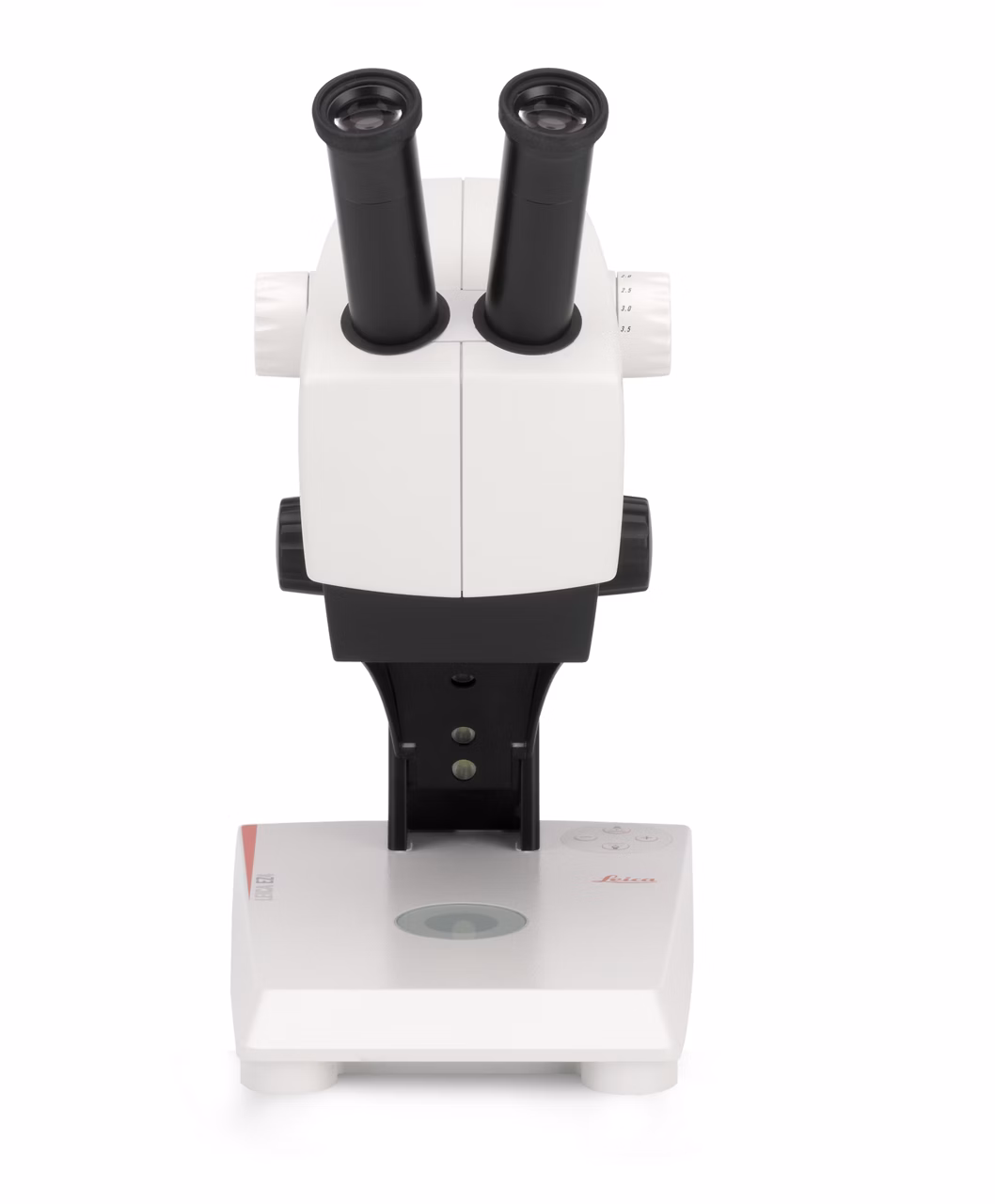

EZ4 Stereo Microscope for Education

The EZ4 stereo microscope is a versatile and user-friendly instrument designed with education in mind. Featuring exceptional optics and ergonomic design, this microscope provides an immersive learning experience for students. Its ease of use and robust construction make it an ideal tool for educational settings, allowing students to explore the microscopic world with clarity and precision. The EZ4 is the perfect companion for fostering curiosity and hands-on learning in the classroom.

Limited time promotion -10% discount applied at checkout

EZ4 ZOOM Magnification for 3 Dimensional Viewing

The EZ4 stereomicroscope with 4.4:1 zoom for entry level university and college courses such as biology, anatomy and chemistry provides over 20 years of bright LED illumination which saves time and cost of replacement bulbs. 7-way LED illumination system provides incident, oblique and transmitted light for high quality illumination and contrast of any application. Greenough optical system provides a 3 dimensional view of sample.

Specifications:

EZ4 Stereo microscope with non-removable 10x/20 eyepieces
4.4:1 Zoom Stereo Microscope with 8x-35x zoom range
10x/20mm high eye point
exclusive 50-75 mm interpupillary distance
100 mm working distance
No removable parts
Plug and play design
Student-proof
All-in-one
Tool-free tension adjustment
Built-in 25,000 hour 6500 K Reflected, 4500 K Transmitted, true daylight
Constant-color temperature power LED illumination for BOTH reflected and transmitted light
Variable light intensity control for reflected and transmitted light
Reflected light and transmitted light can be used separately or simultaneously
exclusive 3 directional reflected illumination (fill, top and oblique)
Power switch located on back of stand
exclusive auto-shutoff after 120 minutes
Sealed stage plate
Sealed light control panel on rear of stage area
Built-in universal voltage
Stabilizing power supply accommodates 100-240 V input
Fully safety rated
Including country specific power cord, dust cover and Quickstart guide

A complete line for training specimen preparation techniques, workflows and experiments including digital documentation Leica’s typical mechanical precision for decades of maintenance-free functionality Precise zoom and focusing systems for the finest, most exact control Dimmable power LED illumination system for incident and transmitted light Unique Leica 3-way incident light technology

Instrumentation
Contrasting Method(s)	Brightfield
Long Working Distance	No
Microscope Stage Type(s)	Manual
Microscope Camera Option(s)	No Camera
Has Eyepiece	Yes
Microscope Type(s)	Light Microscope, Stereo Microscope
Microscope Environmental Control	None
Maximum Field of View (X-Axis) (Metric mm)	25 mm
Maximum Field of View (Y-Axis) (Metric mm)	25 mm
Maximum Optical Magnification (x times)	35

Search Facet
Microscope Group	Light Microscope
Application(s)	Education;Inspection

Leica EZ4 with 10x eyepieces
