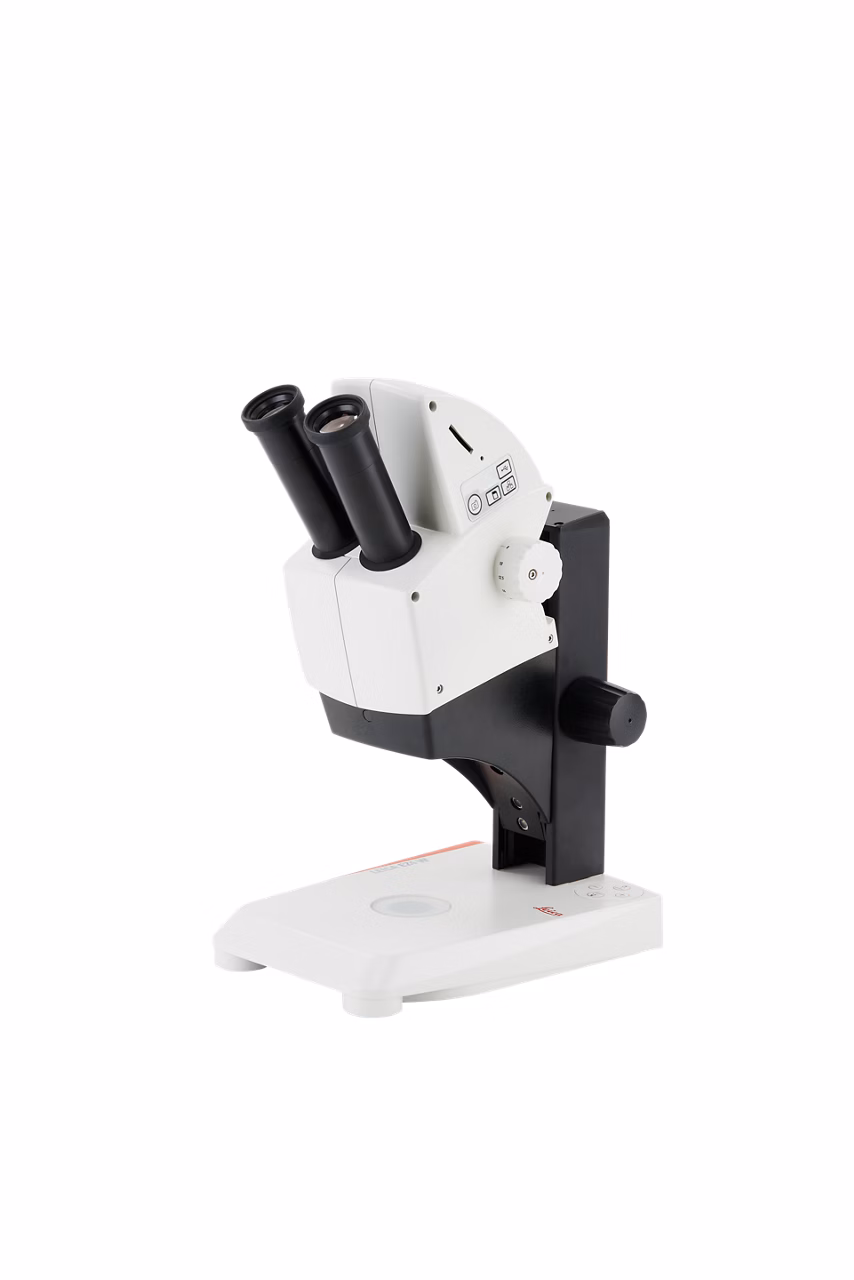

EZ4 E Stereo Microscope for Education with Integrated Wired Camera

The EZ4 E stereo microscope is a powerful tool for educational exploration, featuring outstanding optics and a user-friendly design. With its integrated wired camera, this microscope provides a seamless and efficient way for students to capture and document their discoveries. The wired camera ensures a reliable and stable connection, allowing students to easily share their observations and enhance their learning experience. The EZ4 E is the perfect choice for classrooms, enabling students to explore the microscopic world while effortlessly documenting their findings with the integrated wired camera.

Limited time promotion -10% discount applied at checkout

Specifications:

10x eyepieces
4.4:1 Zoom Stereo Microscope with built in 5 MPixel HD digital camera and 8x-35x zoom range
10x/20 mm high eyepoint
Non-removable eyepieces
exclusive 50-75 mm Interpupillary distance
100 mm working distance
Student proof
All-in-one plug and play design
No removable parts
Tool-free tension control
Built-in 25,000 hour 6500 K Reflected, 4500 K Transmitted, true daylight, constant-color temperature power LED illumination for BOTH reflected and transmitted light, variable light intensity control for reflected and transmitted light.
Reflected light transmitted light can and be used separately or simultaneously
exclusive 3 directional reflected illumination (fill, top and oblique)
Power switch located on back of stand
exclusive auto-shutoff after 120 minutes
Sealed stage plate
Sealed light control panel on rear of stage area
Built in SD card slot
Built-in universal voltage stabilizing power supply accommodates 100-240 V input, fully safety rated.

Camera functions:

HD Mode for Live image 1920x1080p directly to an HD display or for image capture to SD card (No PC required)
PC mode for use with PC and Imaging Software
Network mode for direct connection using Ethernet cable
Camera is integrated into the microscope stand
Light distribution: 50% visual / 50% camera
Interfaces: USB2, HDMI, Ethernet
Maximum Image size 5.0 Mpixel (2592 x 1944)
Complete kit contains Microscope, USB2 cable 1.8m, HDMI cable 2.5m,imaging software for basic image capture and simple measuring and annotation applications, Quck start guide, Safety Booklet, Dust Cover, Country Specific Power Cord. Software LAS EZ.

Leica EZ4 E with integrated high definition digital camera and free LAS (Leica Application Software) The EZ4 E exclusively uses your facilities' network (WLAN or LAN) to allow users to connect to the microscope. This is an ideal solution if you don't want to add additional Wi-Fi access points to your network Ideal for learning and performing quality control and routine laboratory techniques Features high-quality image, color, and detail fidelity

Instrumentation
Contrasting Method(s)	Brightfield
Long Working Distance	No
Microscope Stage Type(s)	Manual
Microscope Camera Option(s)	Integrated
Microscopy Software Available	Documentation, Measuring
Has Eyepiece	Yes
Microscope Type(s)	Stereo Microscope
Microscope Environmental Control	None
Maximum Field of View (X-Axis) (Metric mm)	25 mm
Maximum Field of View (Y-Axis) (Metric mm)	25 mm
Maximum Optical Magnification (x times)	35

Search Facet
Microscope Group	Digital Microscope
Application(s)	Education;Inspection

Leica EZ4 E Stereomicroscope

10450811

QTY

IR Remote Control RC3

10450805

QTY
