EM VCT500 Vacuum Cryo Transfer System
With Leica EM VCT500 you can transfer samples under cryogenic conditions or at room temperature as well as under vacuum or protected atmosphere.
Stay Connected
For research use only

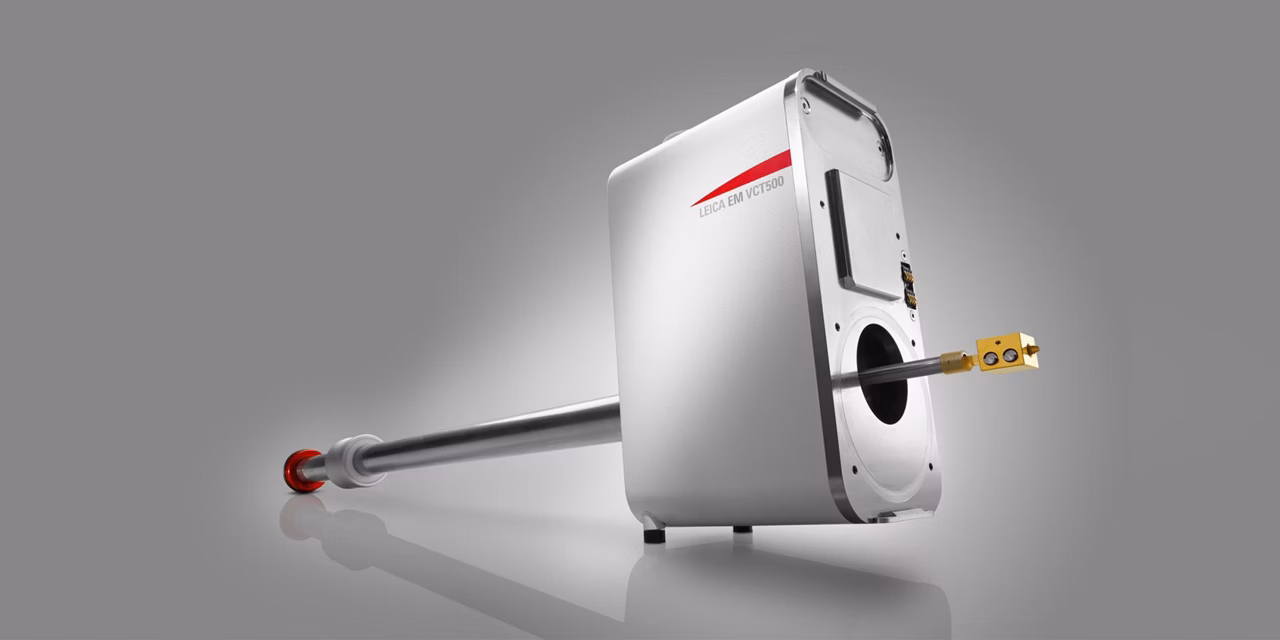

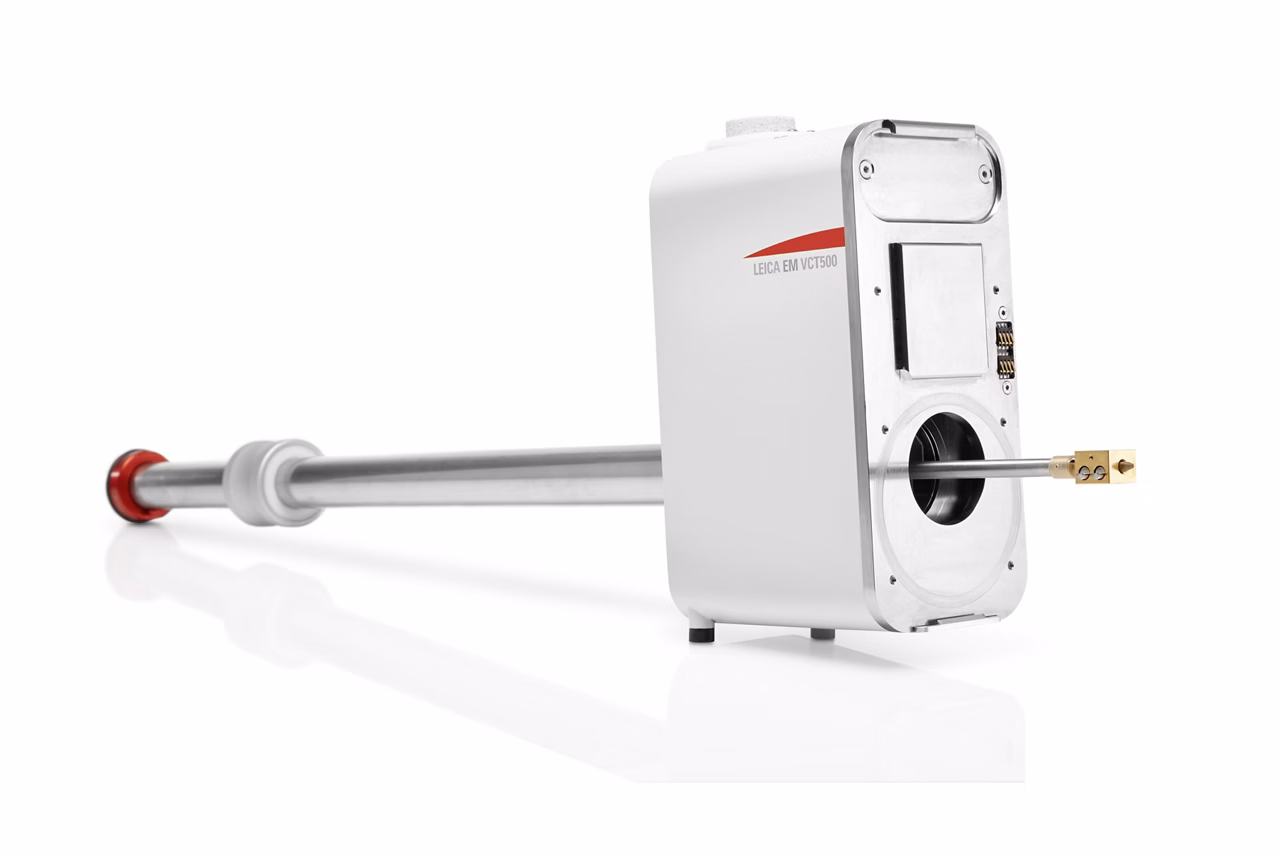

Leica EM VCT500
Stay Connected
- Connect your workflow systems
- Optimize your sample transfer thanks to the active sample cooling and new valve concept
- Monitor your sample with respect to temperature and vacuum at any time during the workflow when docked
Why Vacuum Cryo Transfer?
During the transfer of samples between different preparation and analysis systems, samples have to be protected from contamination and ice crystal formation caused by insufficient protection.
Why Leica EM VCM and Leica EM VCT500?
"Only well-preserved samples yield their secrets in the electron microscope. The Leica EM VCM and the Leica EM VCT500 give you more time, better monitoring and better connectivity – A gateway to new fields of applications."
Saskia Mimietz-Oeckler, Product Manager

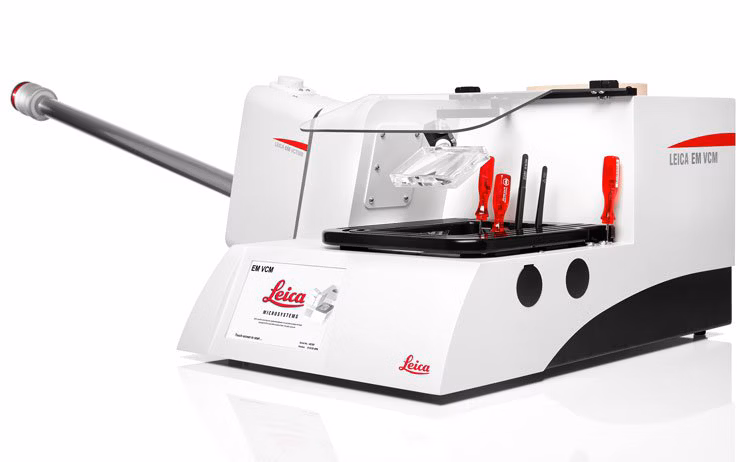

Vacuum Cryo Manipulation System Leica EM VCM
The Leica EM VCM loading station enables you to connect different preparation techniques to various analysis devices such as Cryo-SEM, Cryo-TEM and Cryo-CLEM
Be Connected
Leica EM VCM
Be Connected
- All transfer from sample loading under vacuum
- Illumination, magnifier, tool dryer and automated LN2 refilling contribute to contamination-free sample handling
- Improved connectivity given by up to three sample holders and three transfer options
Connectivity
To be connected at any time at any place is today something which is taken for granted.
As a logical consequence Leica Microsystems started to connect systems for EM Sample Preparation to ensure your samples are protected during the complete workflow process and up to the analysis systems.
Leica EM Sample Preparation Workflow
- Leica EM ICE High Pressure Freezer
- Leica EM VCM Vacuum Cryo Manipulation System
- Leica EM ACE600 High Vacuum Coater with Leica EM VCT500
- Leica EM VCT500 Vacuum Cryo Transfer System
- Adaptable to many analysis systems (example)
Flexibility to Connect
Choose your Holder
We provide standard and customized sample holders for nearly any application:
Standard holders for freeze fracturing, double replica technique, freeze-drying and more
Leica Microsystems can fulfill your application specific sample holder requirements by offering customized holders. Your sales representative will inform you about the process.
Flexibility to Connect to Your Analysis System
Each Leica EM VCT500 is a customized instrument specially adapted to your requirements.
A careful evaluation is carried out with the Leica Sales Team, Research and Development Department and the provider of your analysis system to ensure that your application and workflow process is perfectly aligned.
STELLARIS Cryo Confocal Microscope
STELLARIS 5 Cryo Confocal Light Microscopes for cryo-electron tomography workflow with 3D-targeted structures. Boost your productivity. Request a quote!
EM TIC 3X Configurable Ion Beam Milling System
Three broad ion beams for high quality milling surfaces, true sample structures. Supports multiple stages and sample holders for varied experiments. Get quote.

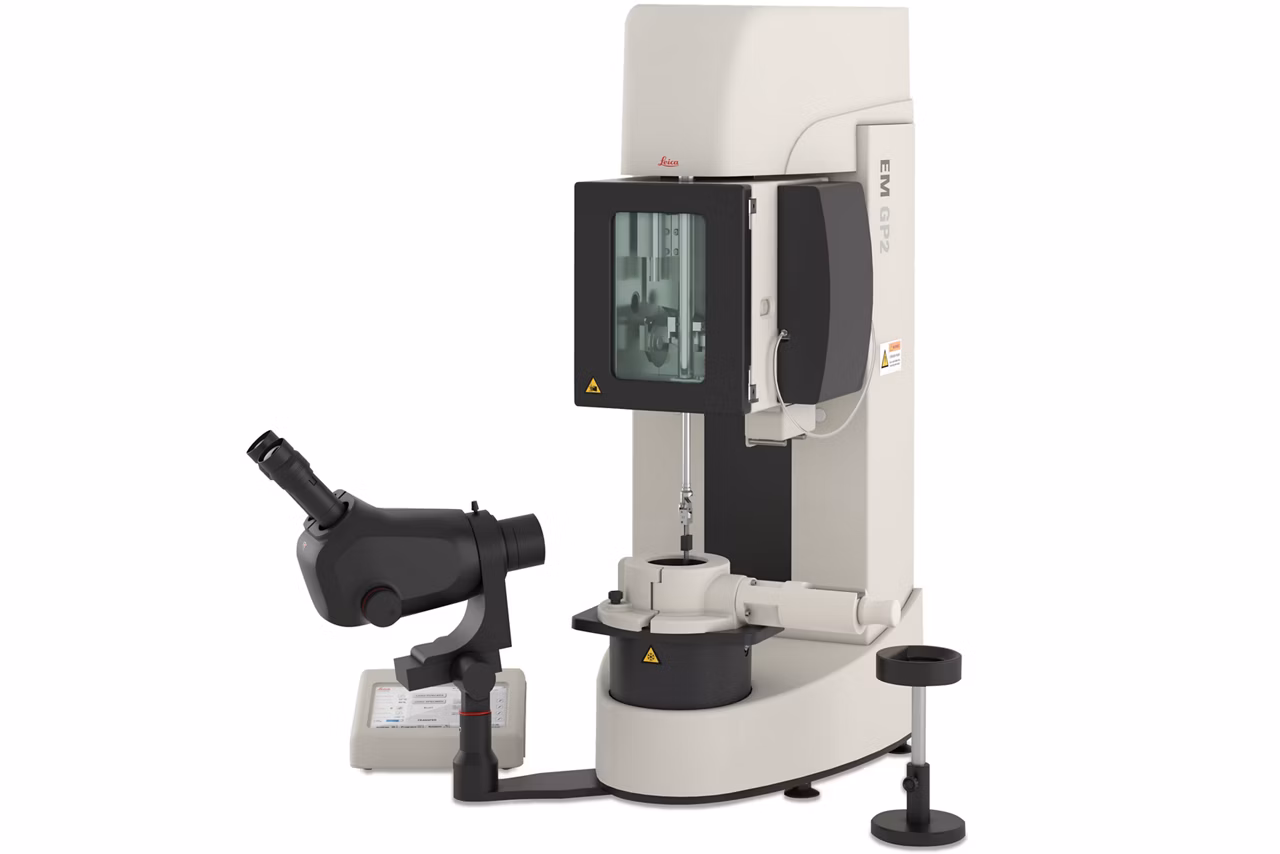

EM GP2 Automatic Plunge Freezer
