Visoria M Materials Microscope with Flexacam c5 for Inspection and Measurement of Fine Details and Surface Structures
Experience enhanced efficiency and comfort in your daily microscopy routine. The Visoria M materials microscope is for applications performed in the metal, electronics, and polymer industries as well as for materials science labs.

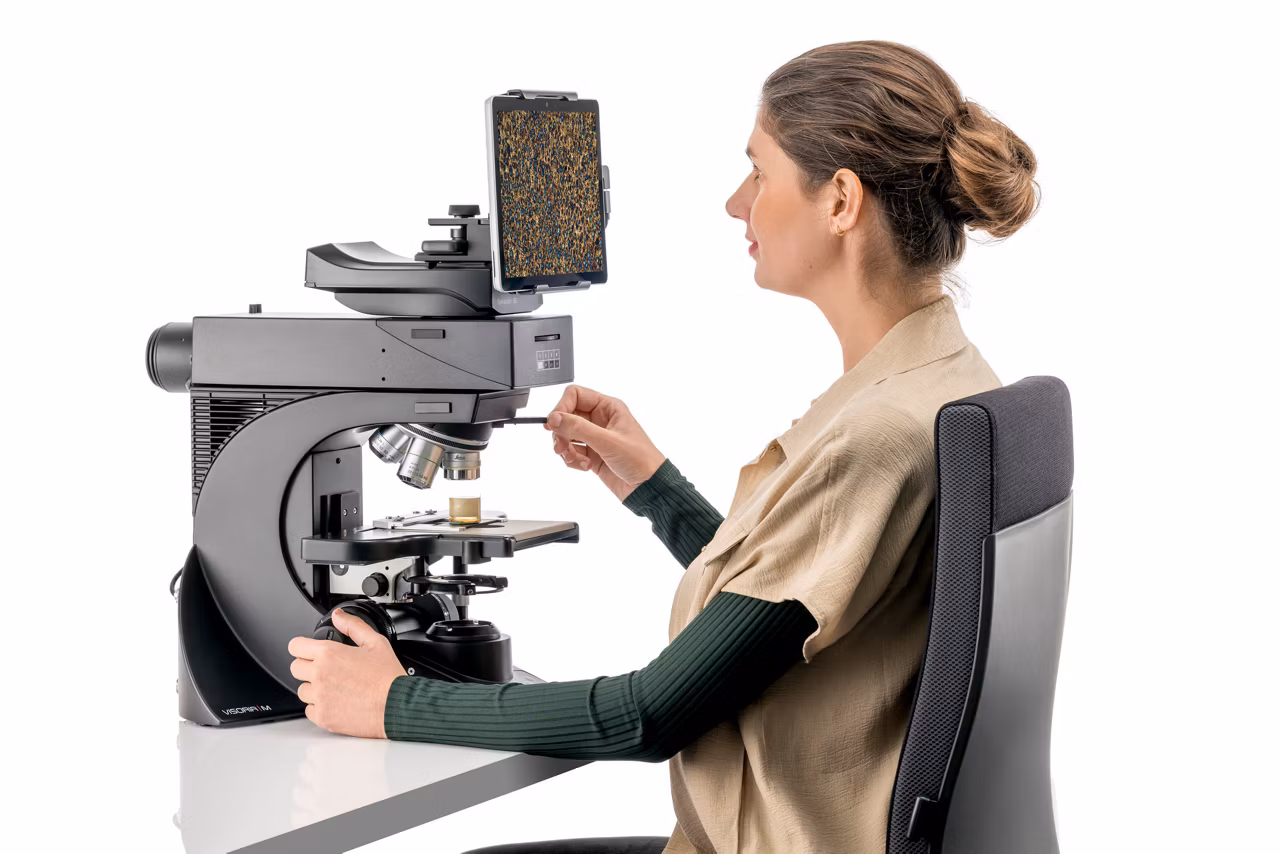

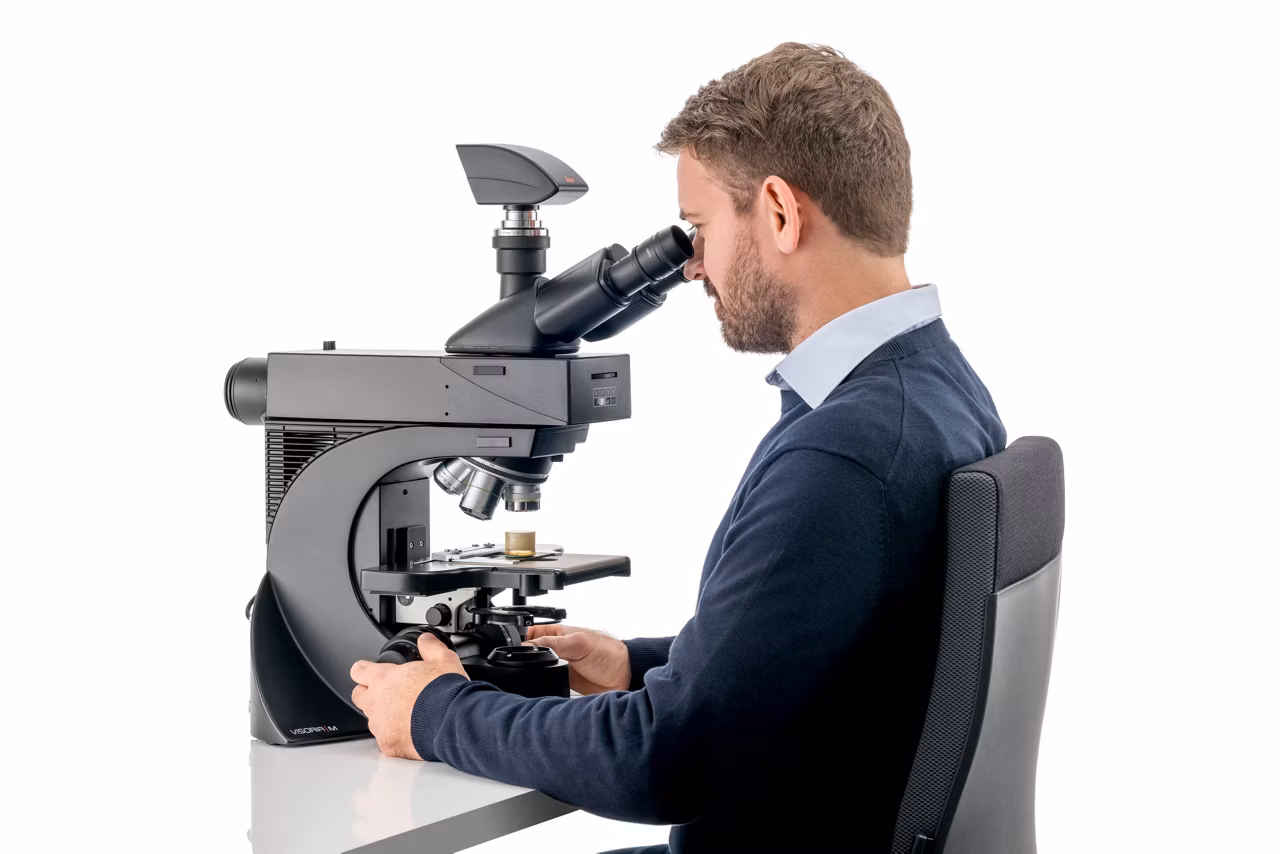

Streamline your workflows with encoded functions, optimized light settings, and other microscope features. You can also be more comfortable and minimize strain thanks to the microscope’s ergonomic design.

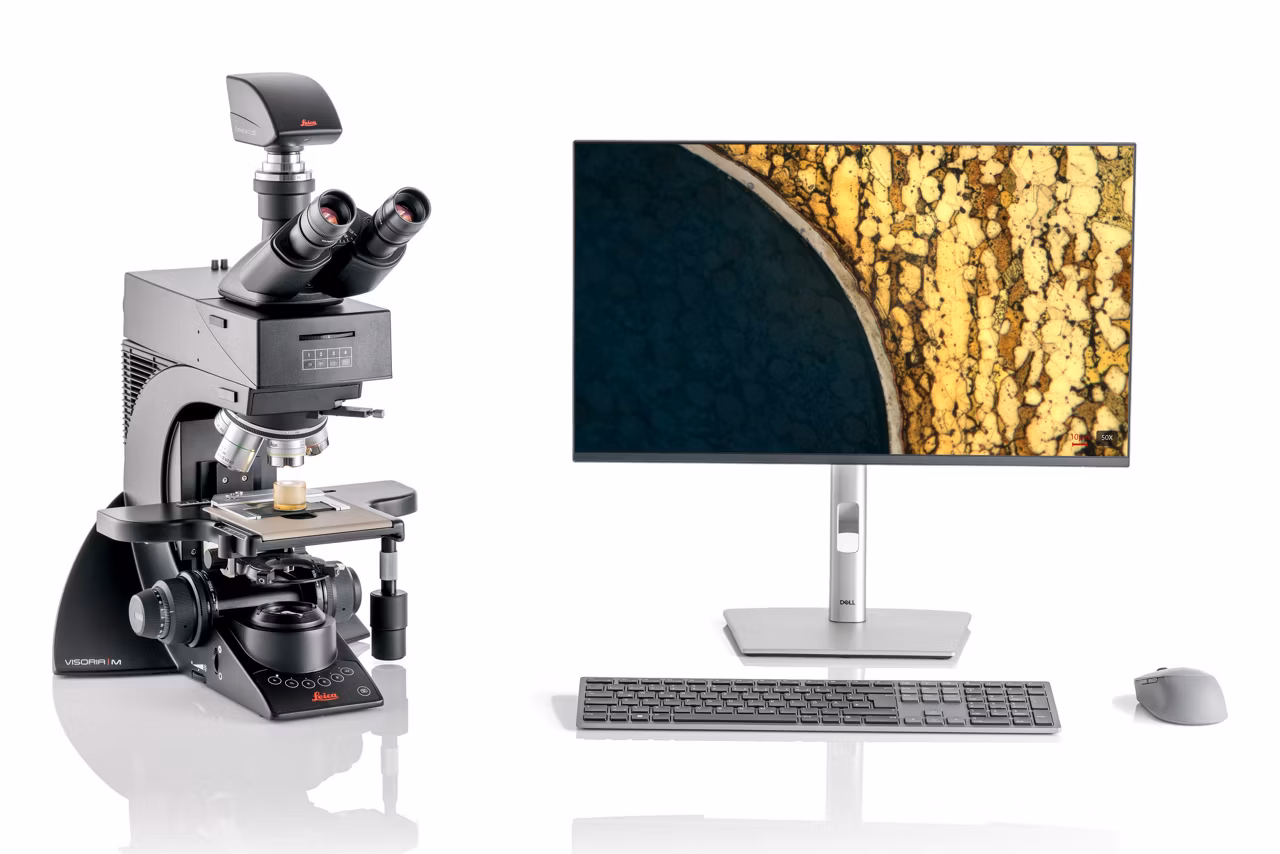

This configuration includes the Visoria M digital materials microscope and is suited for the inspection and measurement of fine details of samples and surface structures of samples.
- Visoria M Digital Materials microscope with illumination management
- 10” screen / tablet with Enersight microscope software (Desktop)
- Flexacam i5 microscope camera, incl. power supply
- High-power white LED

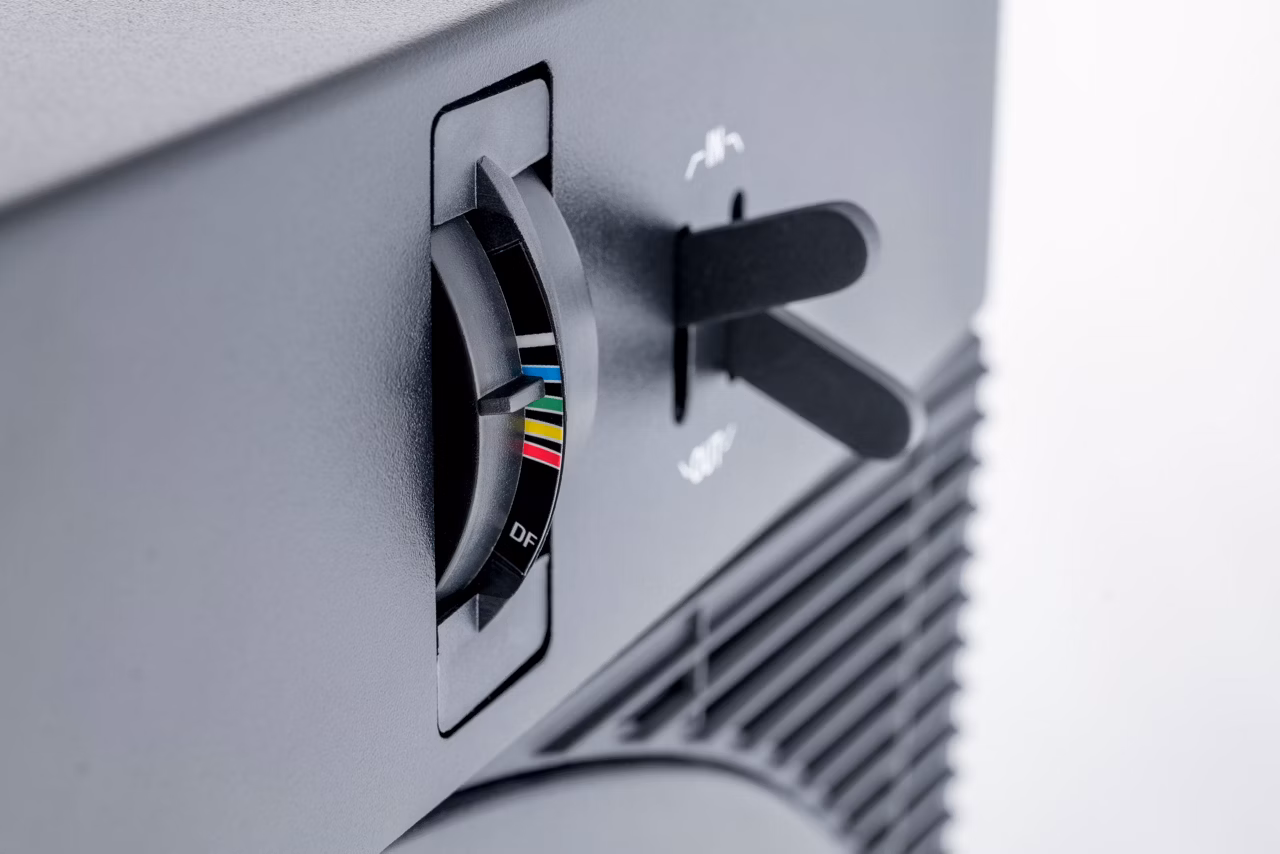

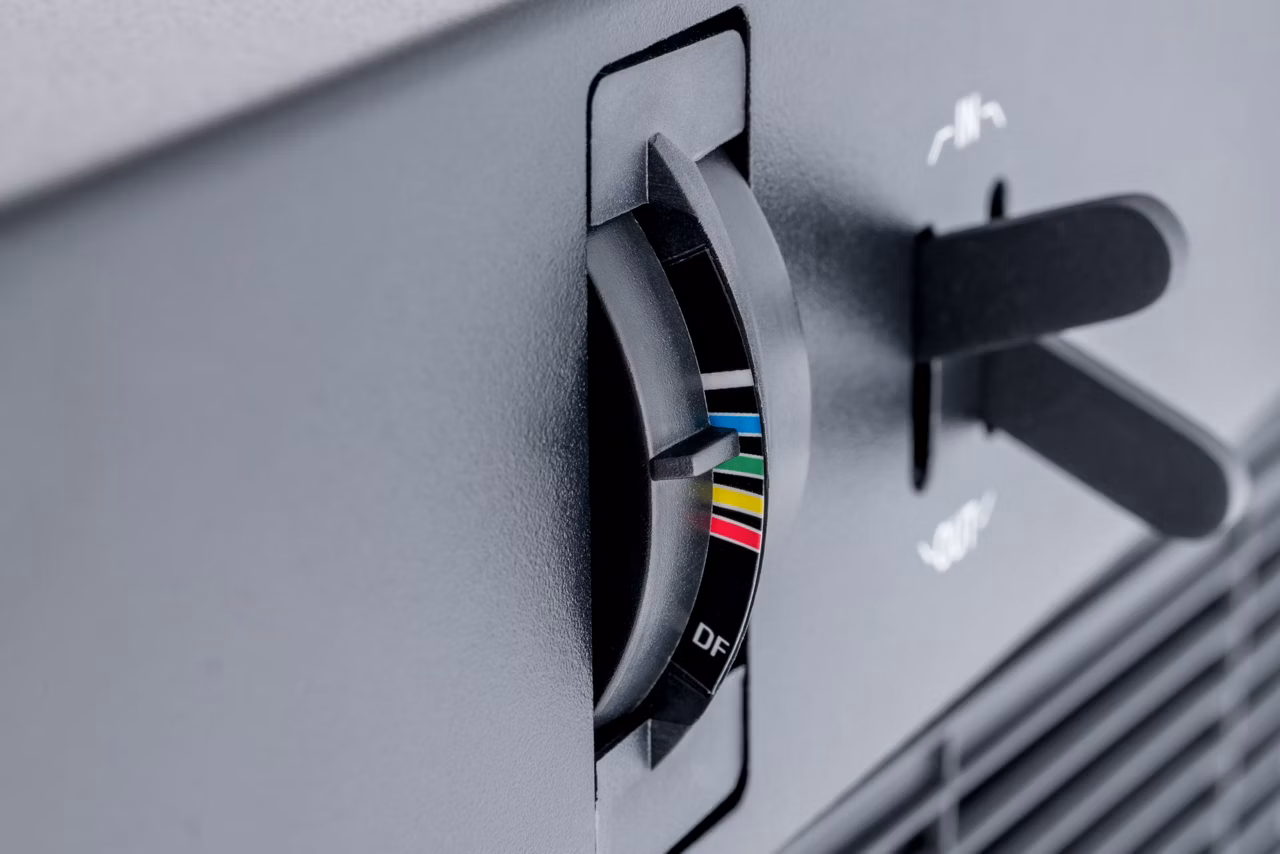

- Incident light axis, 4-position

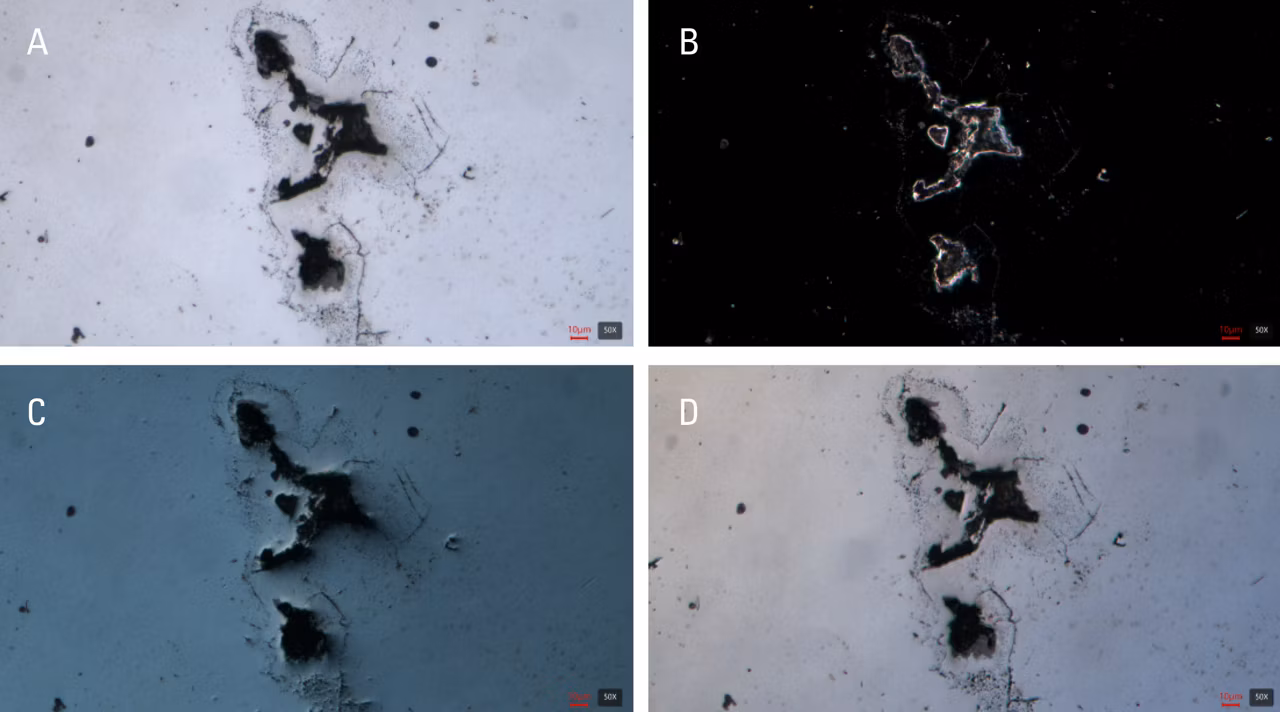

- Contrast methods (incident light): Brightfield, darkfield, oblique illumination
- Encoded nosepiece, 5x
- Objectives (N PLAN EPI): 5x, 10x, 20x, 50x, 100x
- Manual XY-stage (76 x 50 mm)
- 3-step focus drive with height-adjustable focus knobs
- Dust protection cover
- Quick start guide and user manual
| Contrasting Method(s) | Brightfield, Incident Light Darkfield |
| Long Working Distance | Optional |
| Microscope Stage Type(s) | Manual |
| Microscope Camera Option(s) | Single Camera |
| Microscopy Software Available | Documentation, Measuring, Tile Stitching |
| Has Eyepiece | No |
| Microscope Type(s) | Upright Microscope, Light Microscope |
| Has Resonance Scanner | No |
| Maximum Optical Magnification (x times) | 1000 |
Visoria M, 5-fold
11561614
1
QTY
Ground plate
11561609
1
QTY
Focus drive 3-step for M/P
11561607
1
QTY
Focus knobs for Visoria
11561608
1
QTY
IL axis, 4-fold
11561600
1
QTY
Lamp housing LH113 LED
11504199
1
QTY
Dust cover DML/Visoria/3000 Fluo/Photo
11501074
1
QTY
Eyepiece HC PLAN s 10x/22 Br. M
11507820
2
QTY
Ergo stage IND 76x50 w. stage bracket
11888703
1
QTY
Slide holder IND
11888711
1
QTY
Reflector BF, fixed
11888716
1
QTY
Reflector DF
11888740
1
QTY
Microscope Objective N PLAN EPI 5x/0,12 BD
11566077
1
QTY
Microscope Objective N PLAN EPI 10x/0,25 BD
11566083
1
QTY
Microscope Objective N PLAN EPI 20x/0,40 BD
11566067
1
QTY
Microscope Objective N PLAN EPI 50x/0,75 BD
11566074
1
QTY
Microscope Objective N PLAN EPI 100x/0,85 BD
11566075
1
QTY
C-Mount HC 0.55x
11541544
1
QTY
Flexacam c5
12730535
1
QTY
Phototube HC L1T 4/5/7, trinocular
11561622
1
QTY
Visoria P Polarization Microscope for Geosciences Including Conoscopy with Flexacam c5
Visoria P polarization microscope with conoscopy for geosciences featuring quantitative polarization and Bertrand lens for analysis. Buy now!
Visoria B Laboratory Microscope for Histopathology or Cytopathology
Visoria B laboratory microscope with encoded functions for efficient histopathology and cytopathology applications in clinical labs. Order now!
Visoria B Laboratory Microscope for Hematopathology or Clinical Microbiology
Visoria B laboratory microscope with brightfield darkfield phase contrast and encoded nosepiece for clinical microbiology. Order now!
Visoria M Digital Materials Microscope for Inspection and Measurement of Fine Details and Surface Structures
Visoria M digital microscope for inspection & measurement of fine details and surface structures in metals electronics and polymers. Request a quote.

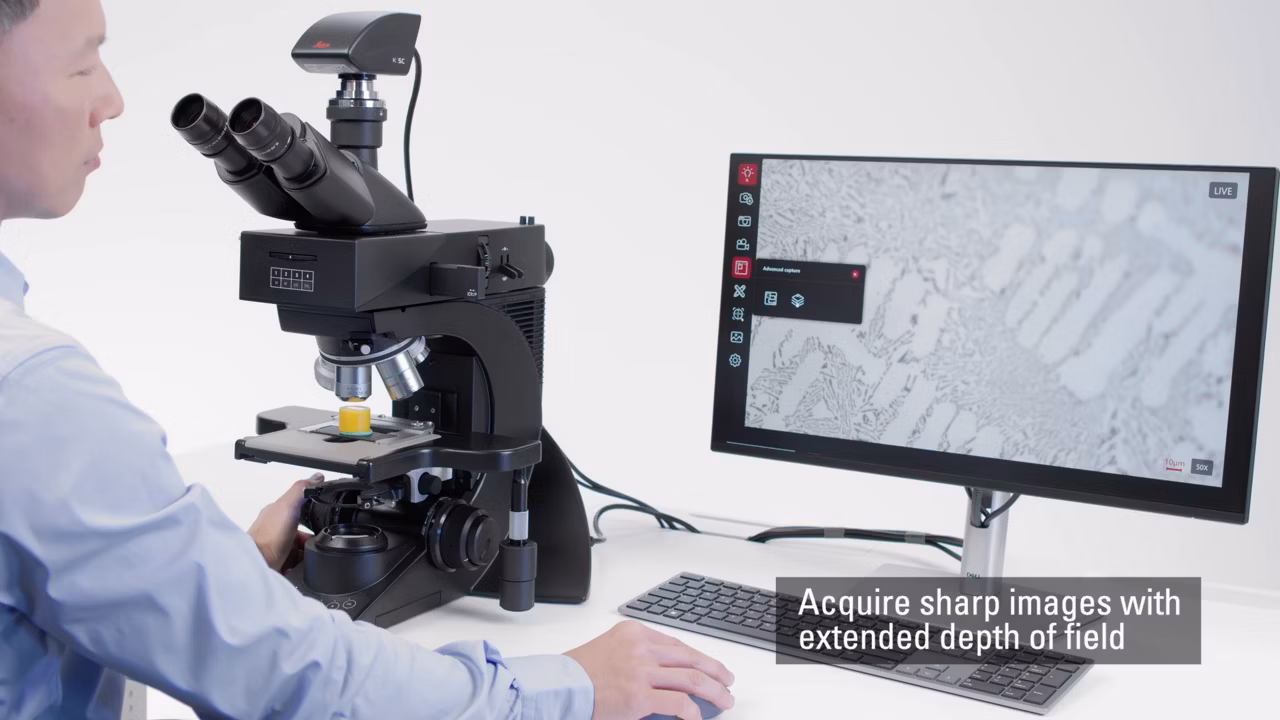

Enersight Extended Depth of Field (EDOF)
