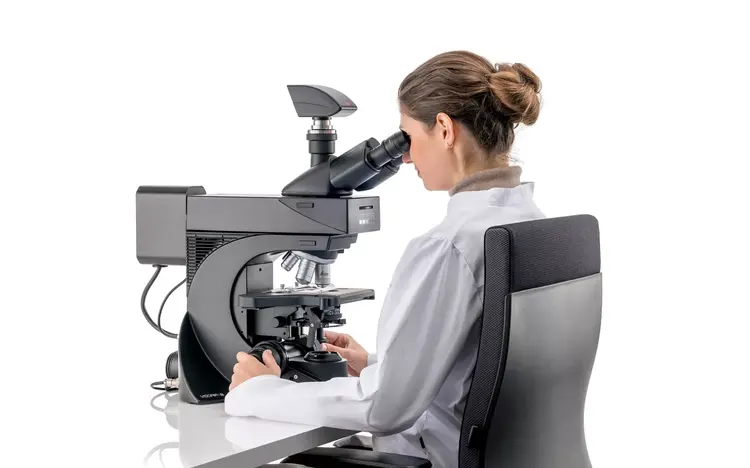

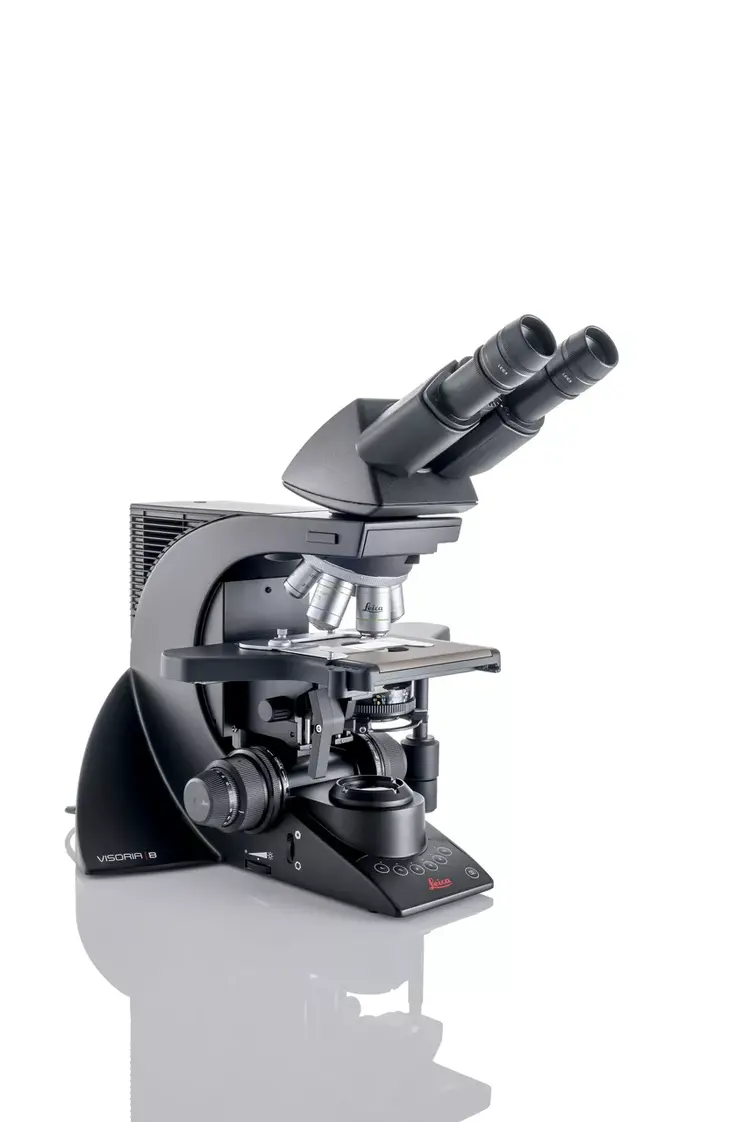

Visoria B Laboratory Microscope for Hematopathology or Clinical Microbiology
Experience enhanced efficiency and comfort in your daily microscopy routine. The Visoria B laboratory microscope is for applications performed in life science and clinical laboratories.
Streamline your workflows with encoded functions, optimized light settings, and other microscope features. You can also be more comfortable and minimize strain thanks to the microscope’s ergonomic design.
This configuration includes the Visoria B laboratory microscope and is suited for Hematopathology or Clinical Microbiology applications.
- Visoria B Laboratory microscope (Global IVD) with illumination management
- Ergonomic tilting tube
- Two eyepieces (10x), field of view 22 mm
- High-power white LED
- Contrast methods: Brightfield, Darkfield, Phase
- Encoded nosepiece, 6x
- Objectives (N PLAN): 5x, 10x, 20x, 40x, 50x, 100x
- ErgoStage with Ceramic Plate, with specimen holder
- 3-step focus drive with height-adjustable focus knobs
- Condenser A 0.9 (P)
- Immersion liquid, ISO 8036
- Dust protection cover
- Quick start guide and user manual
| Contrasting Method(s) | Brightfield, Phase Contrast, Transmitted Light Darkfield |
| Long Working Distance | Optional |
| Microscope Stage Type(s) | Manual |
| Microscope Camera Option(s) | Optional |
| Microscopy Software Available | N/A |
| Has Eyepiece | Yes |
| Microscope Type(s) | Upright Microscope, Light Microscope |
| Has Resonance Scanner | No |
| Maximum Optical Magnification (x times) | 1000 |
Visoria B IVD Global
11561611
1
QTY
Focus knobs for Visoria
11561608
1
QTY
Condenser achr.-apl. A 0.9 (P), CC
11501183
1
QTY
Ergonomic tilting tube HC LVB 0/4/4
11501504
1
QTY
ErgoStage with Ceramic Plate f. DM2-3000
11888186
1
QTY
Slide holder one hand slide change
11505196
1
QTY
XY-stage control standard
11888153
1
QTY
Microscope Objective N PLAN 10x/0,25
11506405
1
QTY
Focus drive 3-step
11561605
1
QTY
Object clamp for oil immersion
11505218
1
QTY
Microscope Objective N PLAN 100x/1,25 OIL
11506158
1
QTY
Eyepiece HC PLAN s 10x/22 Br. M
11507820
2
QTY
Microscope Objective N PLAN 5x/0,12
11506302
1
QTY
Microscope Objective N PLAN 20x/0,40
11506096
1
QTY
Microscope Objective N PLAN 50x/0,90 OIL
11506321
1
QTY
Microscope Objective N PLAN 40x/0,75
11506314
1
QTY
Lamp housing LH113 LED
11504199
1
QTY
Type F Immersion liquid, ISO 8036
11513859
1
QTY
Dust cover DML/Visoria/3000 Fluo/Photo
11501074
1
QTY

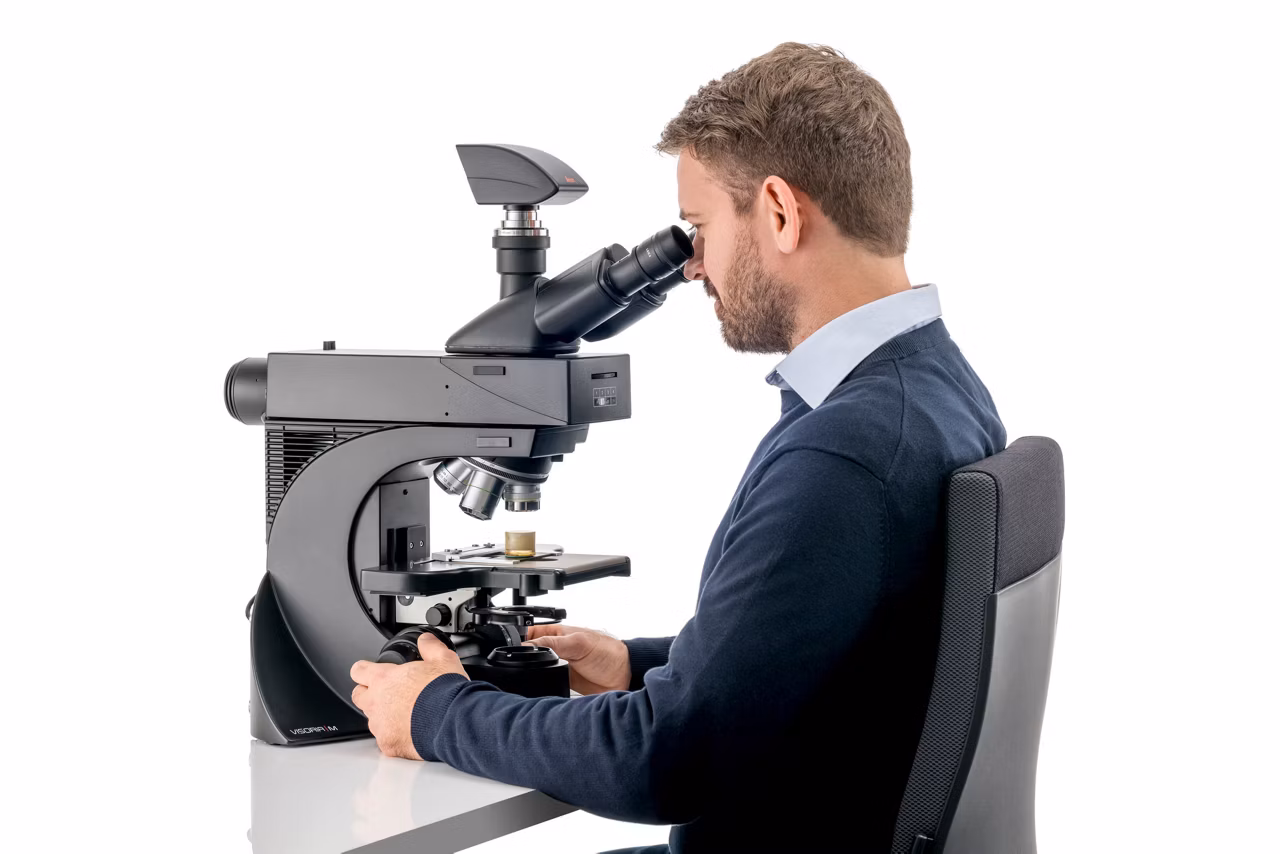

Visoria M Digital Materials Microscope for Inspection and Measurement of Fine Details and Surface Structures
Visoria M digital microscope for inspection & measurement of fine details and surface structures in metals electronics and polymers. Request a quote.
Visoria M Materials Microscope with Flexacam c5 for Inspection and Measurement of Fine Details and Surface Structures
Visoria M materials microscope with Flexacam c5 for high-resolution inspection of fine details and surface structures in industrial QA. Buy now!
Visoria P Polarization Microscope for Geosciences Including Conoscopy with Flexacam c5
Visoria P polarization microscope with conoscopy for geosciences featuring quantitative polarization and Bertrand lens for analysis. Buy now!

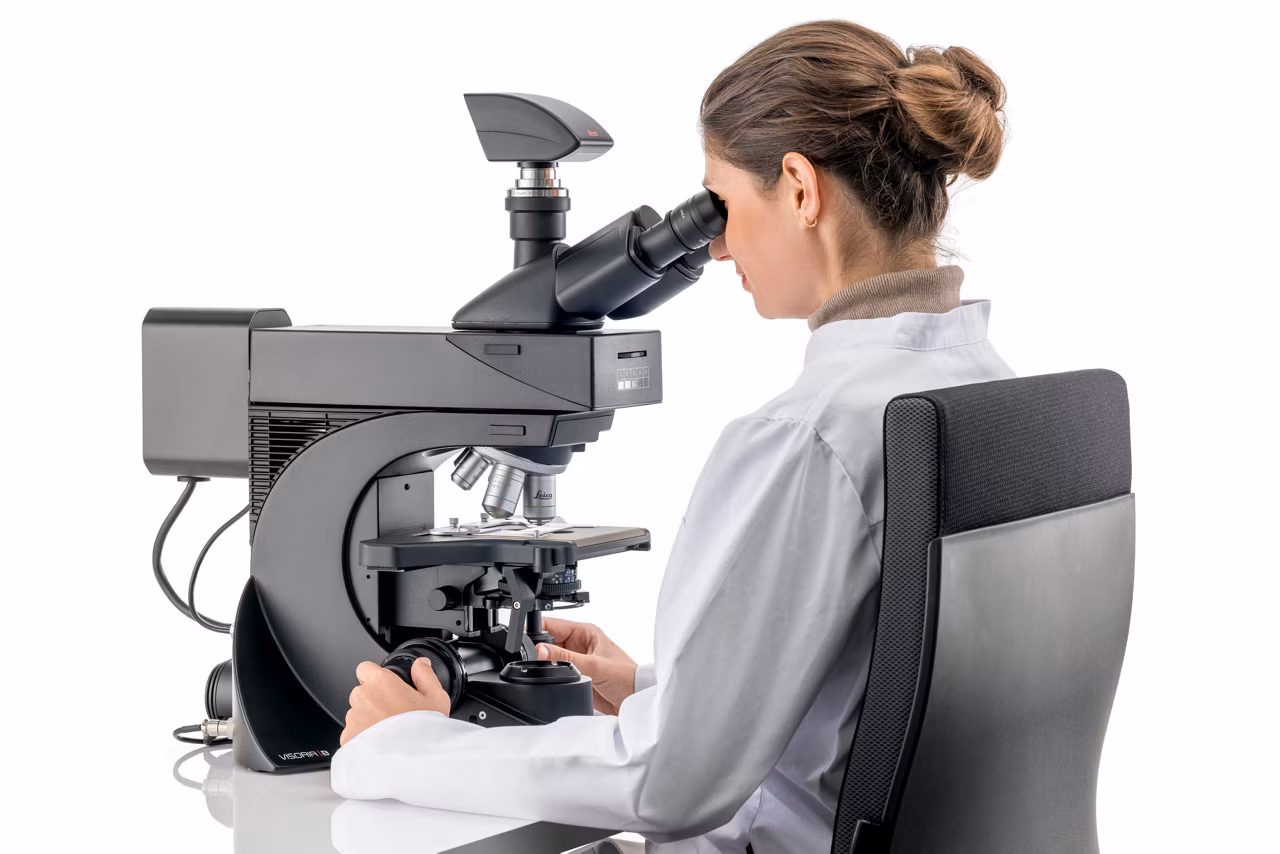

Visoria B Laboratory Microscope for Histopathology or Cytopathology
