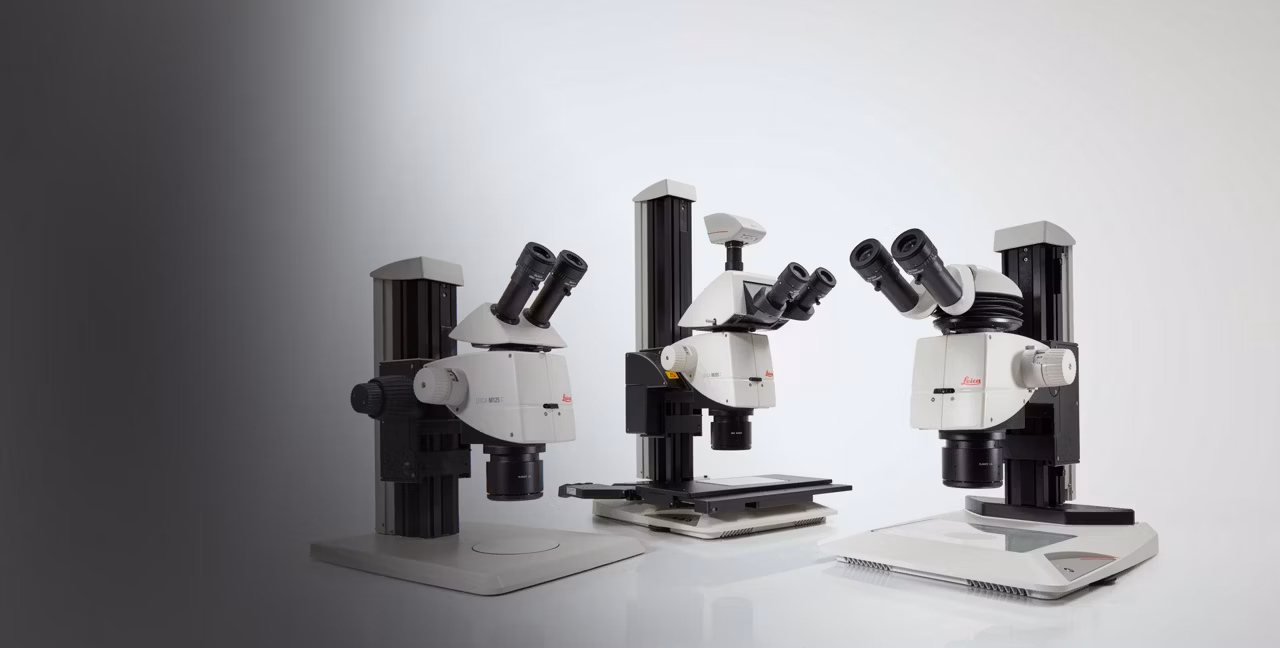

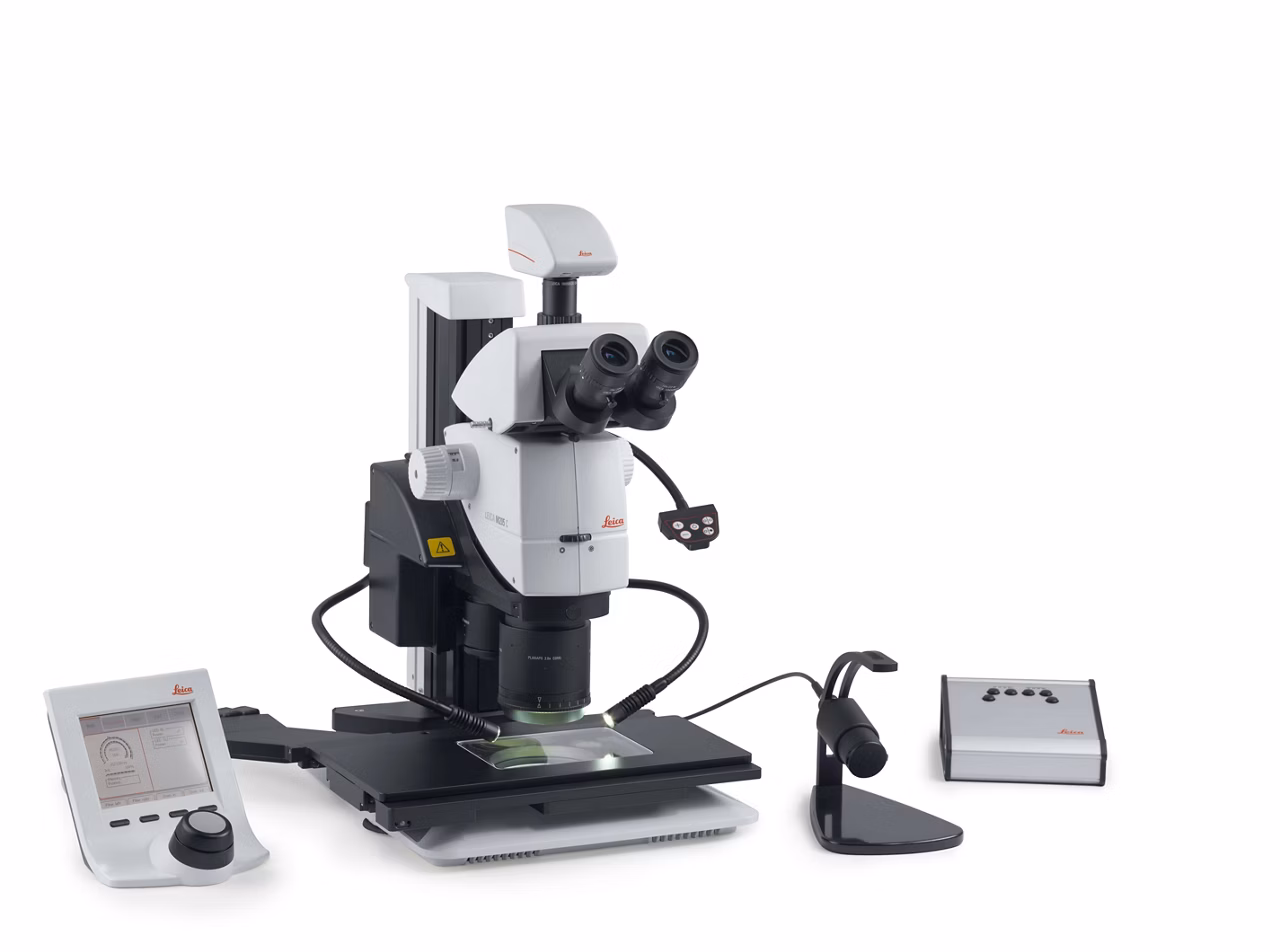

M125 C, M205 C & M205 A Encoded stereo microscopes

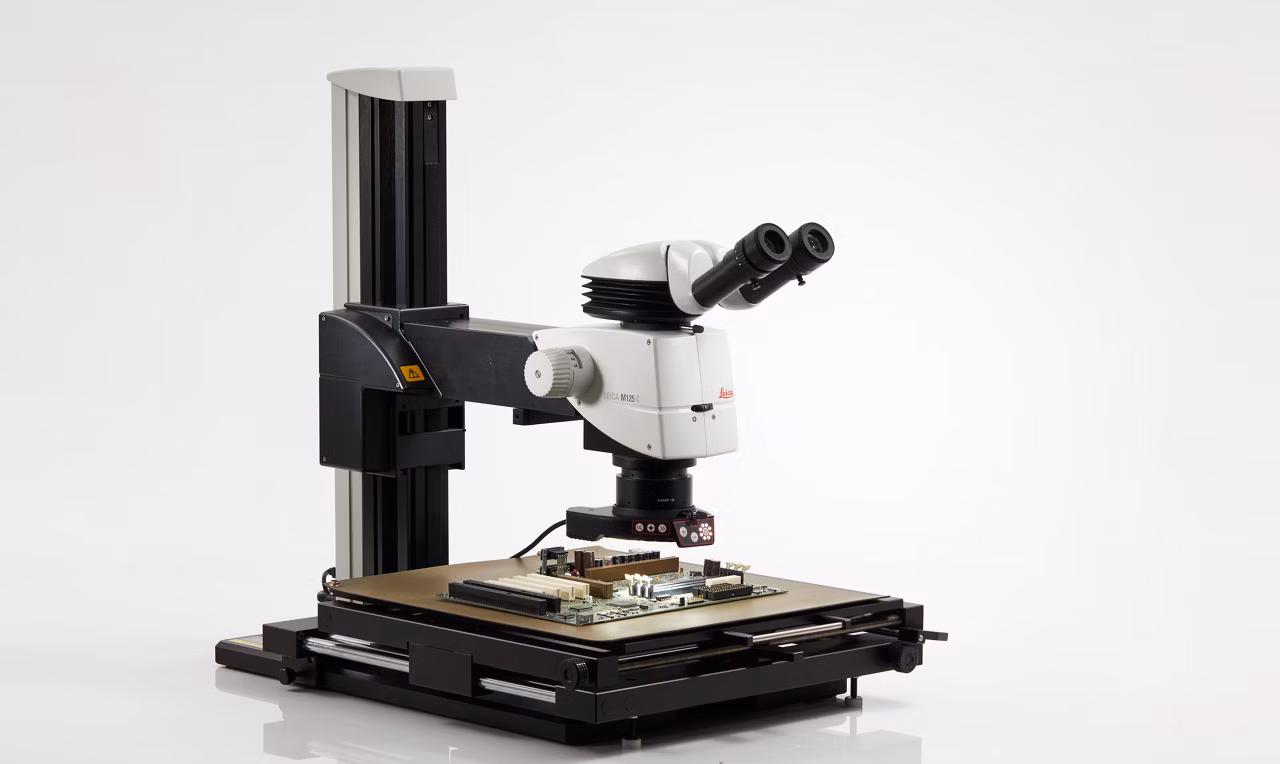

Leica Microsystems M125 C Hero

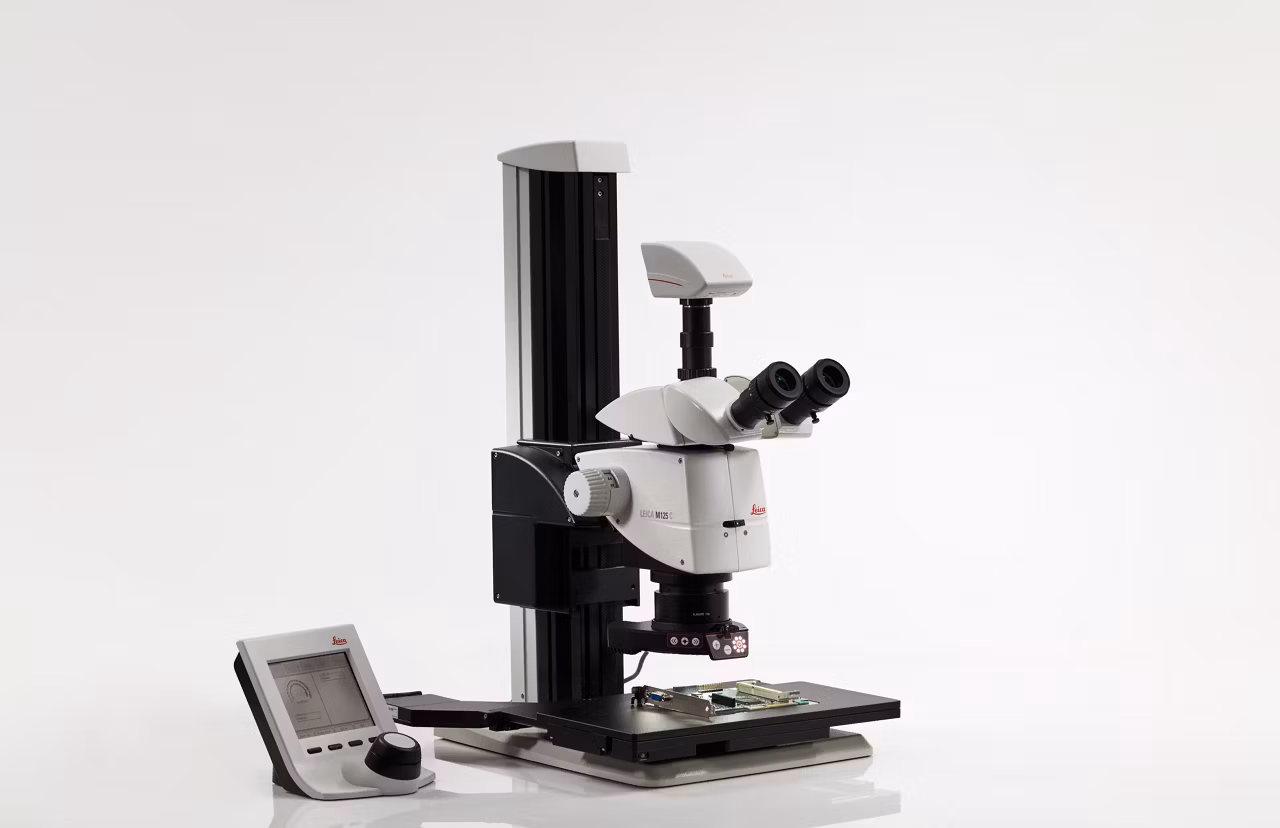

Leica Microsystems M125 C Image1

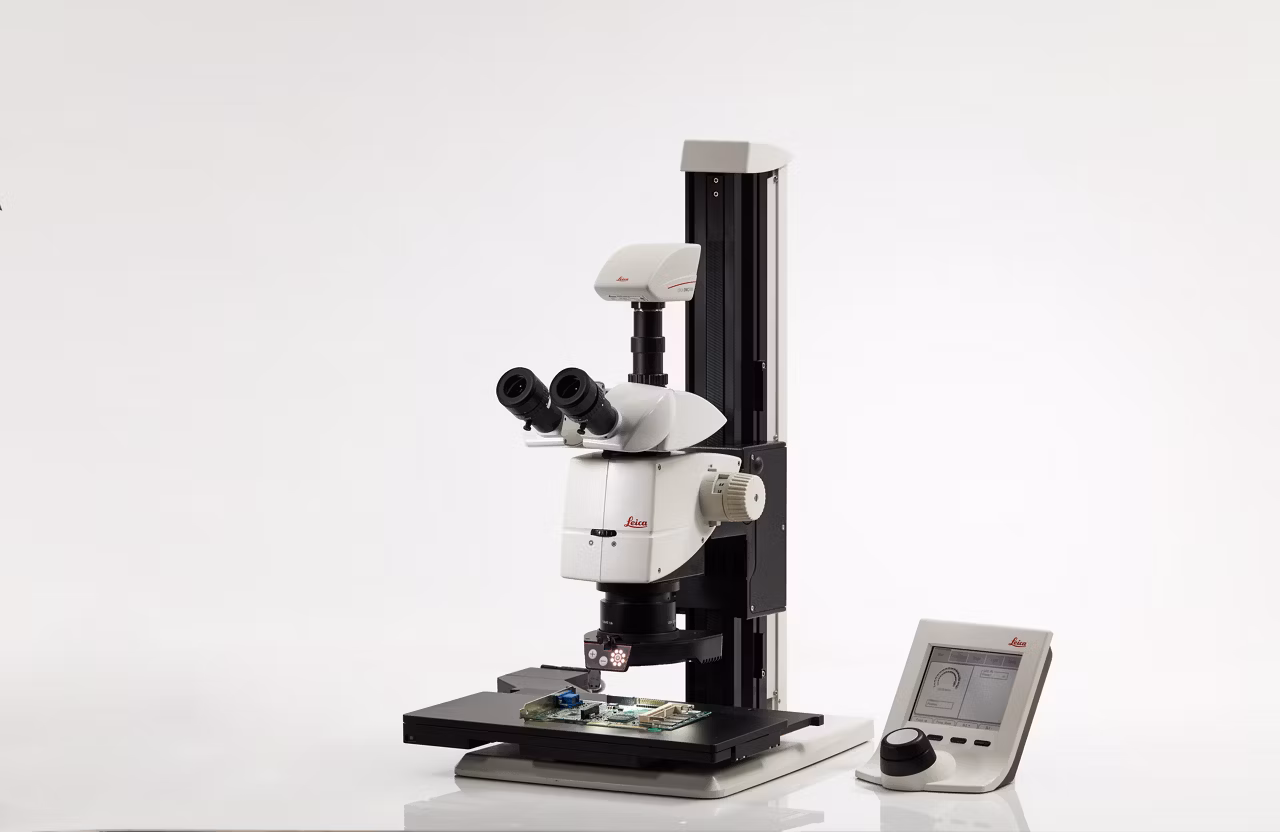

Leica Microsystems M125 C Image2

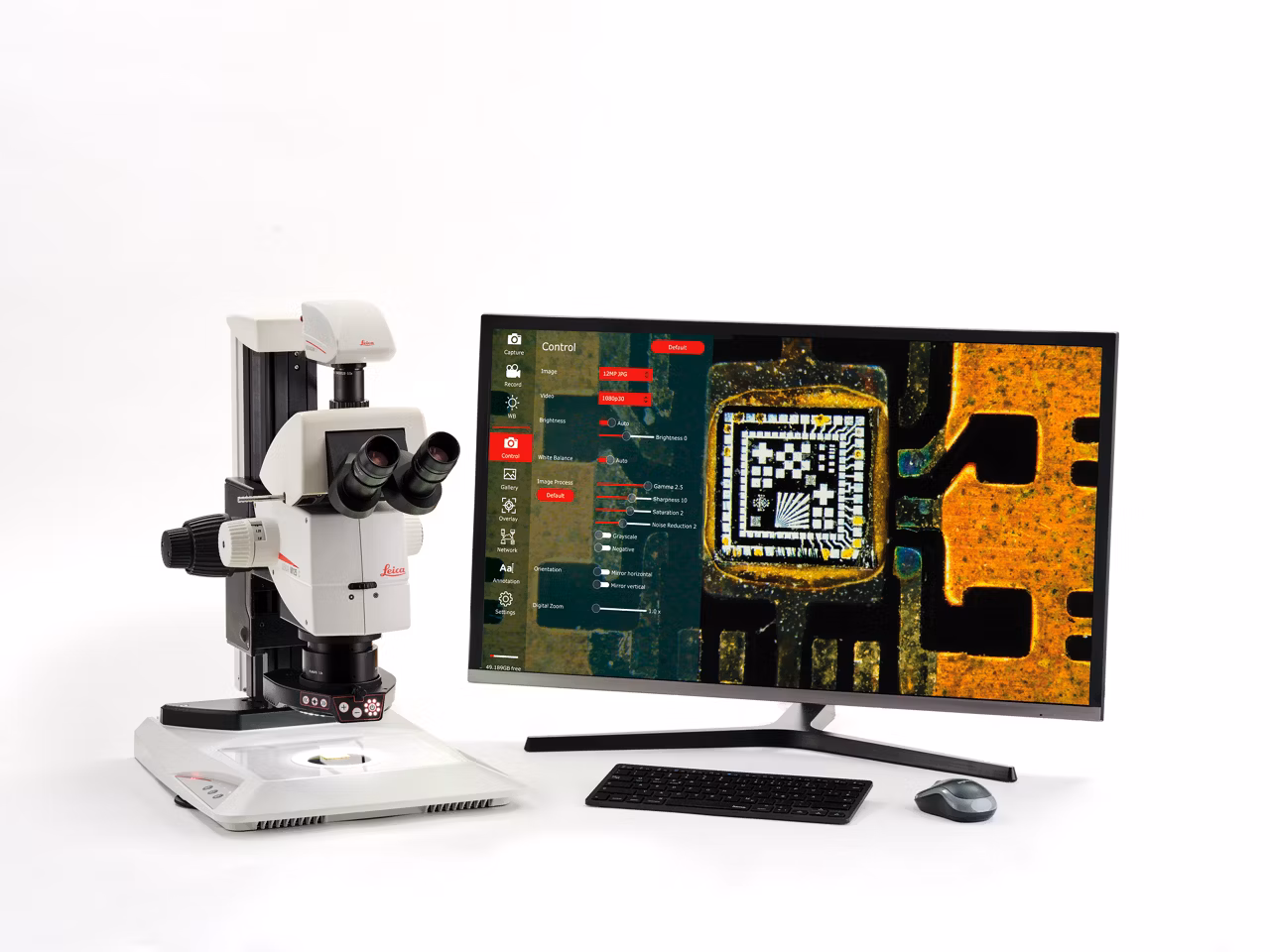

Leica Microsystems M125 C Image3

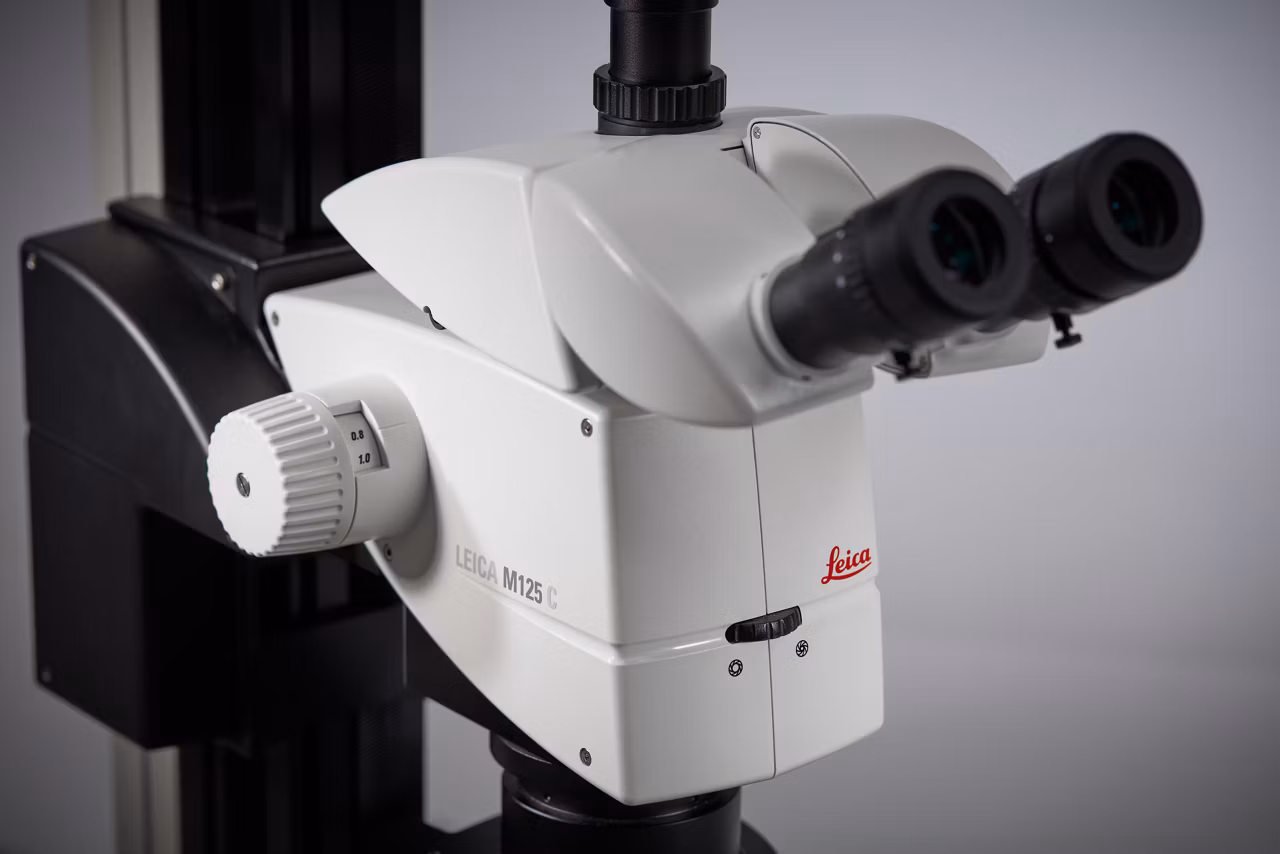

Leica Microsystems M125 C Image5

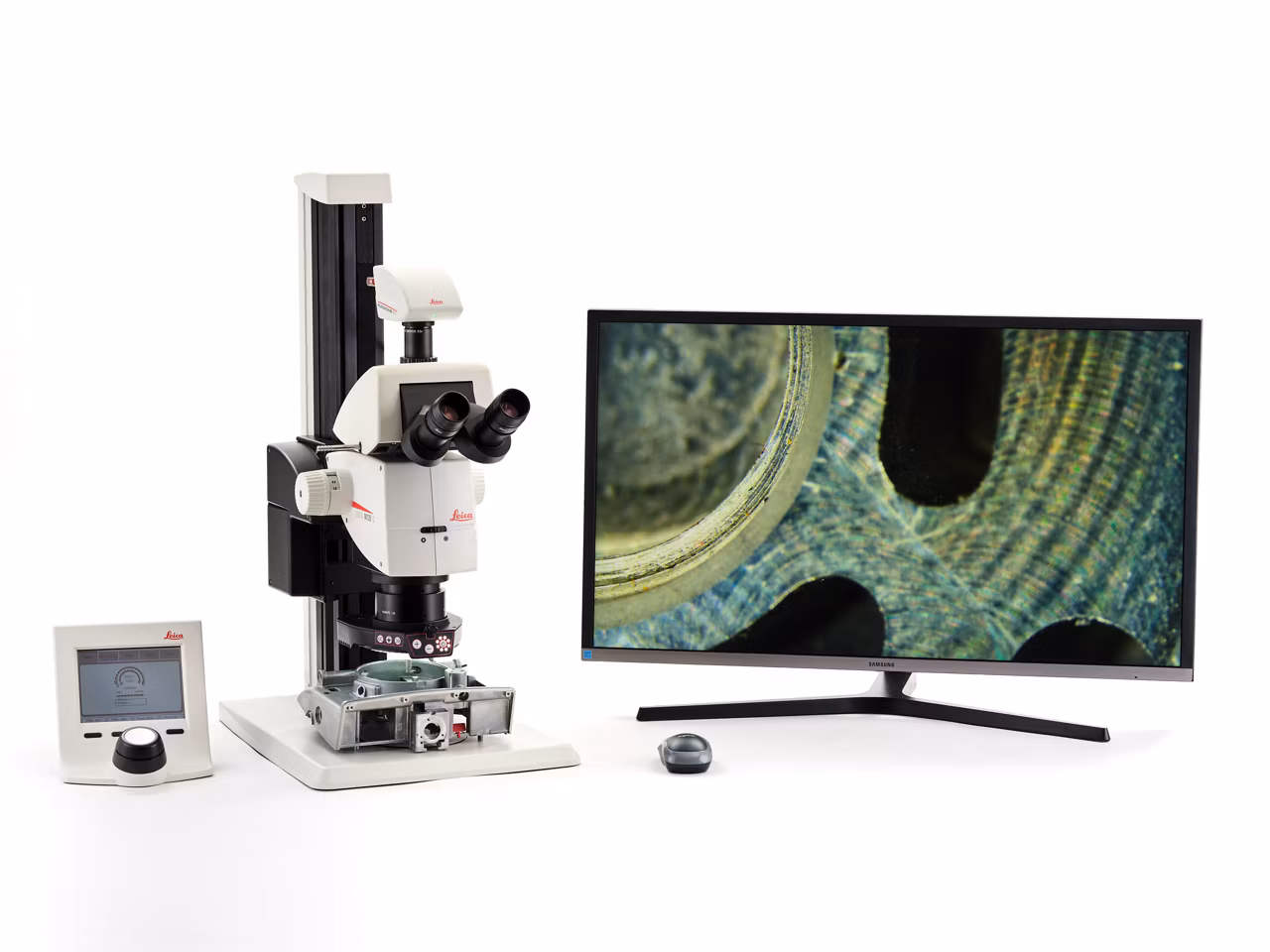

Leica Microsystems M125 C Image4

Leica Microsystems M125 C Image6

Application Image Taken With The Leica M205 C

Leica Application Suite X Software

Leica M125 C With Monitor And Flexacam I5

Total recall of your settings

Your goal: high-quality images that allow measurements and can be accurately repeated with minimal effort. The Leica coded stereo microscopes help you to pave the way to correct results.

  • Coded microscopes consistently deliver calibrated and comparable images
  • Reproduce images in moments with the Leica “Store and Recall” function
  • Fully apochromatic corrected zoom optics deliver high quality images
  • Customize the microscope system to your task with the exclusive range of accessories

Tailored solution – for those who demand more

Specific tasks need individual solutions: configure your microscope system to suit your application, not the other way around. With a Leica M-series stereo microscope you can choose from a comprehensive range of accessories to adapt your microscope to your application, whether it is in materials testing or life science research.

Increase productivity of your users by creating ergonomic microscope solutions

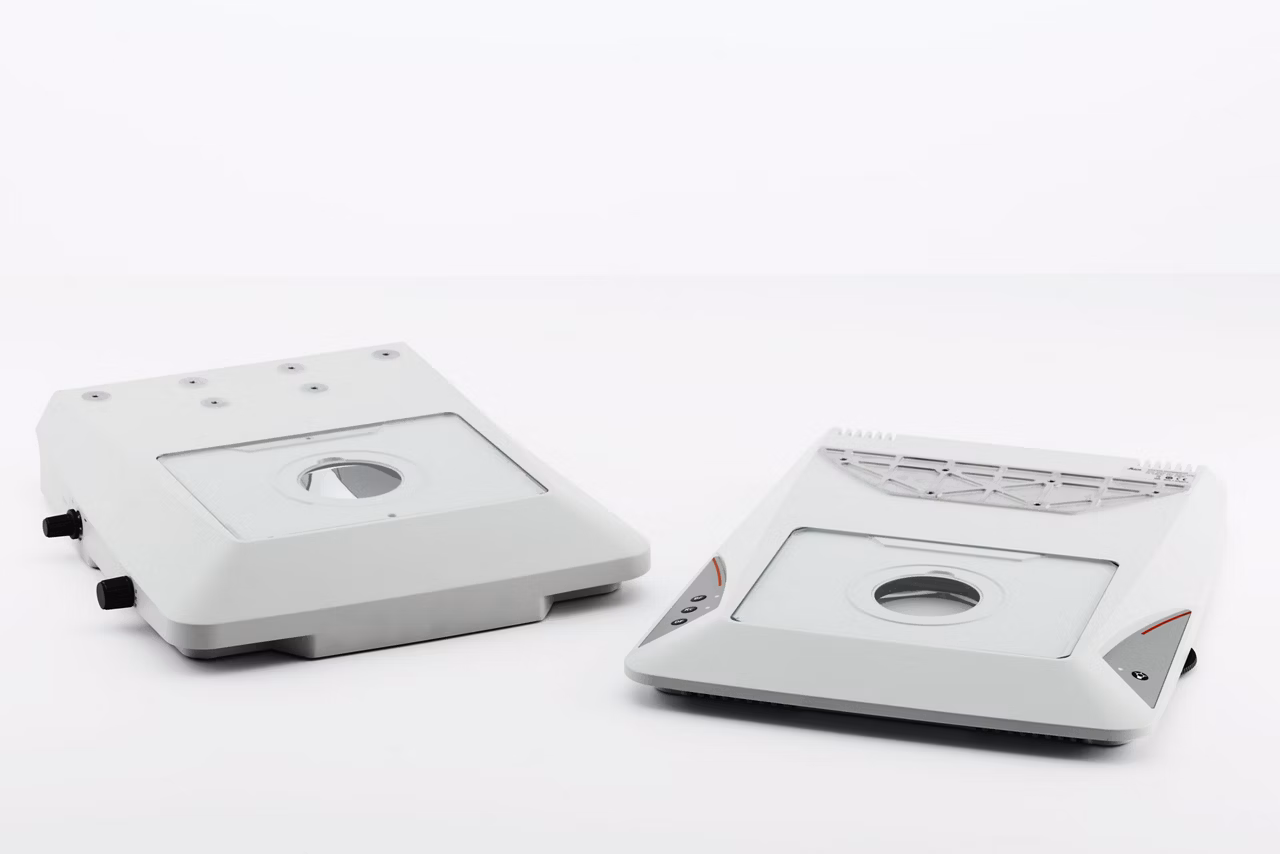

Ergo accessories help to work accurately and efficiently

Choose from the powerful range of Leica illumination to discover the details you have been missing

Acquire images with Leica digital cameras to share your results

Precision in results relies on precision in optics

Application Image Taken With The Leica M205 C

Reproducing results is important, especially if the images show the details that are essential. Rich in detail and contrast, undistorted colors combined with true 3D-impression yield superlative image quality. Take advantage of the ultimate optical capability:

Rely on award-winning objectives with great optical performance for high quality images

Obtain high resolution with maximum depth of field. The revolutionary FusionOptics technology featured in the Leica M205 reveals the finest details

Further enhance your resolution up to 1050 lp/mm with the 2.0x PlanApo objective

The clever way to reproduce results

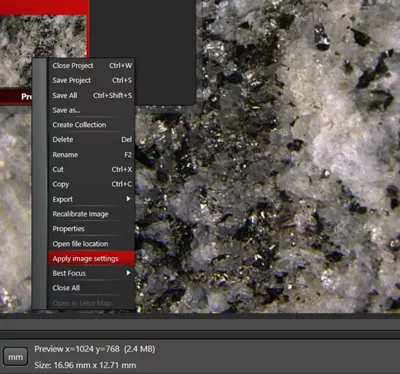

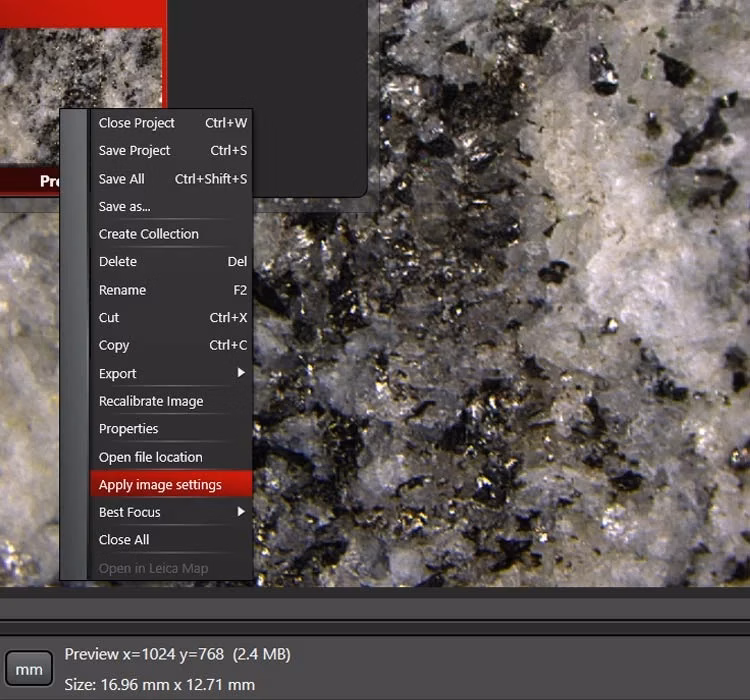

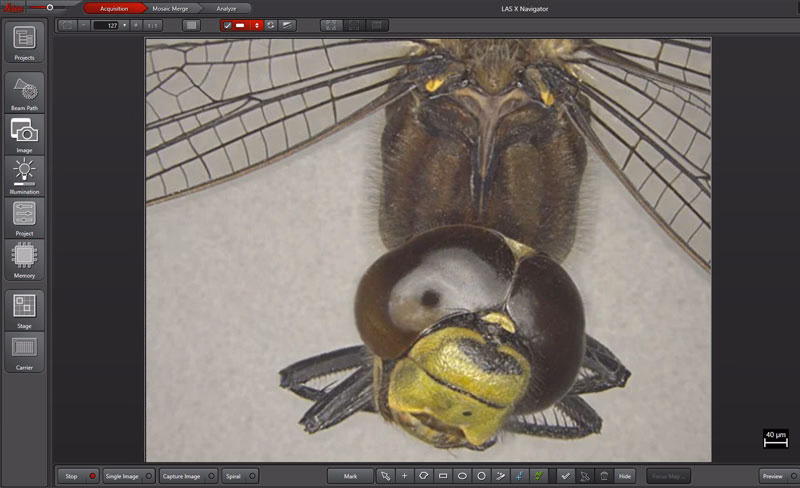

Leica Application Suite X Software

Image coding is the smart way to reproduce settings for easy documentation and consistent reporting. The microscope encoding transmits both the magnification and the position of the iris diaphragm in real time to the software.

A scale bar is superimposed on the image and adjusted with changing magnification. When you store an image, key system parameters are saved with it.

Easily recall them at any time

  • Reliable results even from inexperienced operators
  • Change settings without manually adjusting the calibration
  • Easily acquire calibrated images for comparable results and consistent documentation

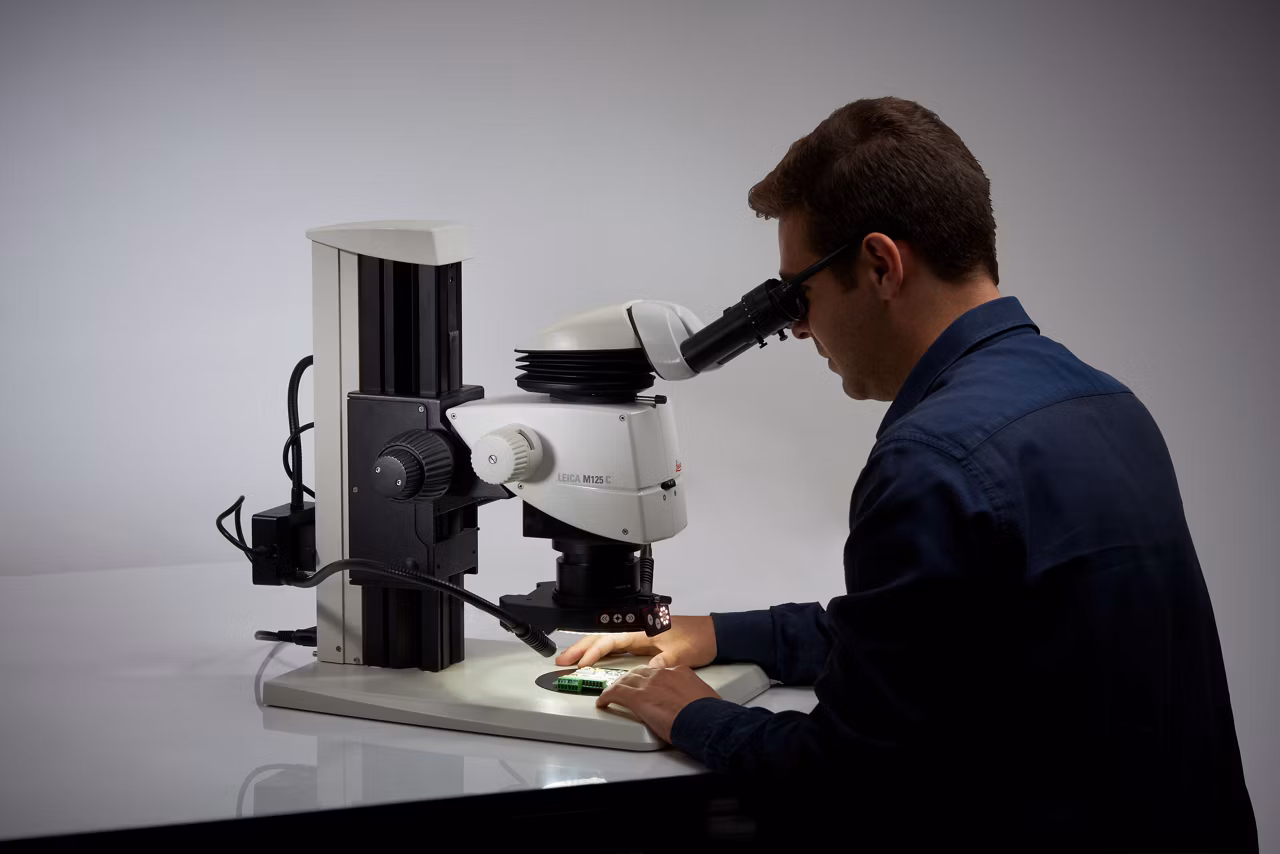

The workhorse Leica M125 C

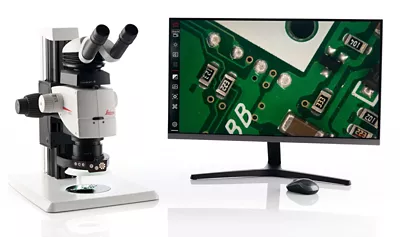

Leica M125 C With Monitor And Flexacam I5

Don’t accept compromises: With a coded zoom and apochromatic optics, the Leica M125 C offers high-end quality for mid-range budgets. Combining optimal resolution and depth of field with the integrated double iris diaphragm.

  • 12.5:1 zoom
  • 8x to 100x magnification
  • up to 864 lp/mm resolution (with 2.0x objective)

Typical applications

  • Medical device manufacturing
  • Semiconductor inspection
  • Materials science
I want to integrate the Microscope in my own software, is this possible?
There is a SDK available. Please contact your local sales rep for more info.
Can I mount a SLR/DSLR camera to a Leica microscope?
We offer several adapter an video tubes that will adapt a “c-mount” to a standard T2 threaded adapter. However, as there are so many different manufactures on the market, you will need to find the T2-adapter specific to your camera from a local supplier. Please contact your local sales specialist to find out more.
Can I use the Leica M125C, M165C, M205C or the M205A with autofocus and tile scan?
Yes, our coded stereos can be mounted on motor focus columns. Leica offers different scanning stages for stereos. LAS X software can provide autofocus and tile scanning. Since the zooms of Leica M125C, M165C, M205C or the M205A are encoded it will always make the right step size in x/y/z.
Do I need a computer to operate a Leica M125C, M165C, M205C or the M205A?

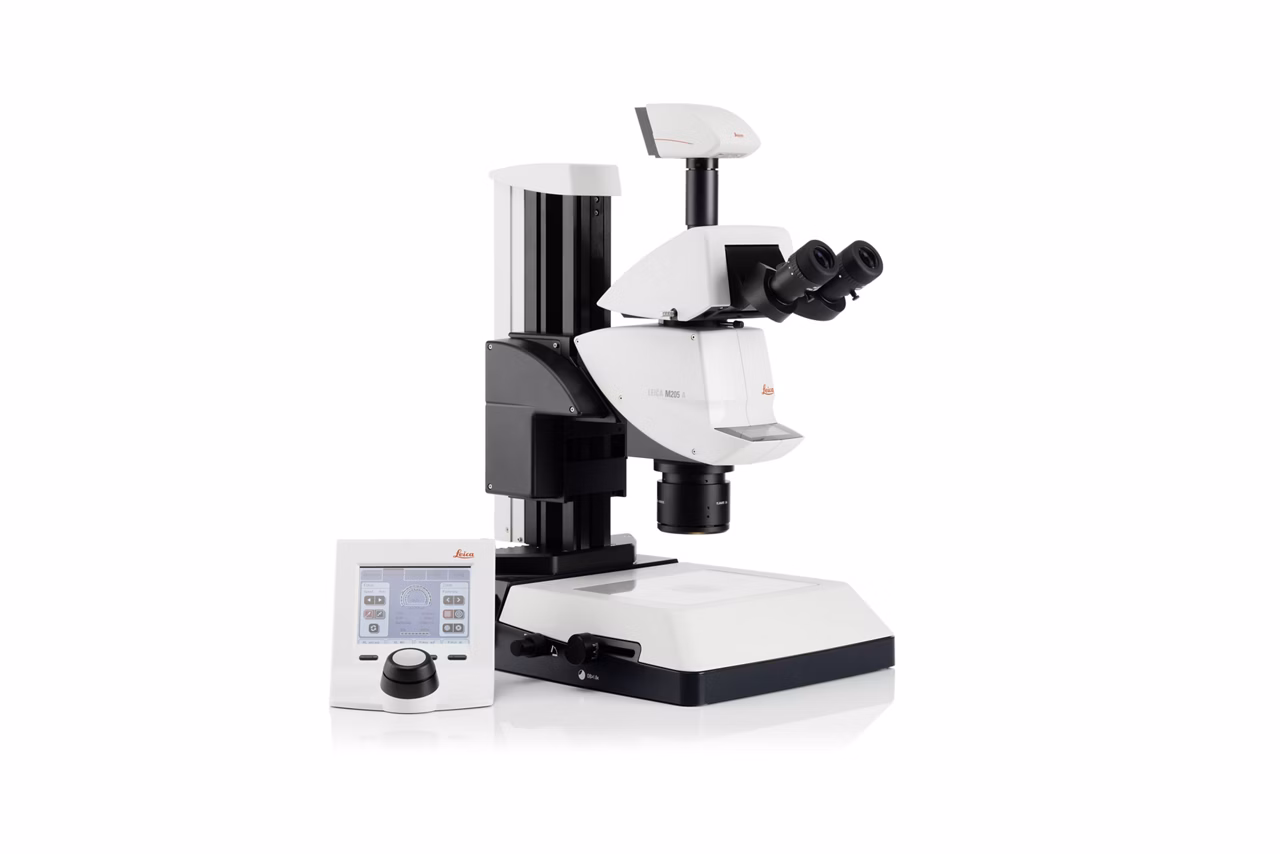

No PC is required to operate a Leica stereo microscope, even with the advanced M205 A. All motorized functions are usable without PC, but require other control devices such as hand wheels, Smarttouch or footswitches to control motorized features. However, in order to get the most out of your coded microscope, one can benefit with Leica software for documentation, measurements and generating reports.
Can I use two cameras on the Leica M125C, M165C, M205C or the M205A?
Yes. We have made a camera attachment that can be used on all M-series stereos in combination with a photo tube. This allows the mounting of one camera on the right optical path and one on the left. Leica Application Suite (LAS X) supports two cameras, various c-mounts and different calibrations for two cameras. Simultaneous acquisition however, is not supported.
What are FusionOptics?
In short, FusionOptics is an ingenious way to give you the best of both imaging worlds. The right optical path of the microscope delivers an image with the highest possible resolution, while the left channel provides an image with maximum depth of field. Now the ingenious part, the human brain does the rest: it creates a three-dimensional image combing the best information from both channels. With FusionOptics you can visualize the finest details of your specimen.
