Brightfield Microscope: An Overview

What Is a Brightfield Microscope?

A brightfield microscope is one of microbiology and medicine's most common optical microscopes. It transmits white light through a sample, producing a bright background and darker specimen contrast. Its preliminary form, the compound microscope, was developed in the 16th and 17th centuries, while Dutch microbiologist Antonie van Leeuwenhoek translated the device into biology. Further design modifications improved image clarity, illumination and magnification, making brightfield microscopy a standard tool in research for monitoring stained or naturally pigmented specimens.¹

Brightfield microscopy contrasts with dark field microscopy, which uses oblique lighting to illuminate and accentuate unstained samples against a dark background.²

Key Components and Optical Path of a Brightfield Microscope

Parts of the brightfield microscope include:

• The objective lens: The lens system comprises multiple glass lenses. The primary lens system is close to the specimen, gathering light transmitted through the sample and producing a magnified real image.
• The stage is below the objective lens system and designed to secure the sample, allowing X and Y axes to be adjusted.
• Eyepiece (ocular) lenses at the top of the microscope enlarge the image received from the objective lens to make it visible to the observer.
• The light source, typically a built-in LED or halogen lamp, provides the illumination necessary for the bright background contrast.
• The aperture diaphragm adjusts the diameter and intensity of the light beam to optimize image contrast and resolution.
• The coverslip is placed over the sample to protect it and ensure flatness.

The light source's beam passes through the condenser mounted below the stage, which focuses it onto the specimen. The stage can be raised or lowered to enhance focus, while the diaphragm aperture can be controlled by the fine and coarse adjustment knobs to optimize the contrast. Sample staining is used to amplify the contrast in transparent cells or tissues.

A brightfield microscope can be compound (monocular) or binocular. Binocular microscopes are preferred over monocular microscopes for the increased depth of field, higher magnification and the natural viewing experience enabled by the dual eyepiece. However, monocular microscopes are more cost-effective and lightweight.

How Brightfield Microscopy Works

The light source beneath the stage emits light, which the condenser focuses onto the specimen on the stage. The light passing through the sample interacts with structures varying in density, thickness or staining—the differential absorption and refraction of light throughout the sample result in image formation.

Staining techniques amplify the absorption/refraction gradient by introducing artificial contrast. In other words, the dyed cellular or subcellular components show increased light absorption, causing them to appear darker against the bright background. Unstained and transparent specimens often require phase contrast or dark field microscopy to improve visibility, as they do not significantly alter the light path.²

In addition to contrast, magnification plays a critical role in the final image quality. A brightfield microscope's magnification power depends on the objective (40-1000x) and ocular lenses (10x) and is calculated by multiplying the two values.³

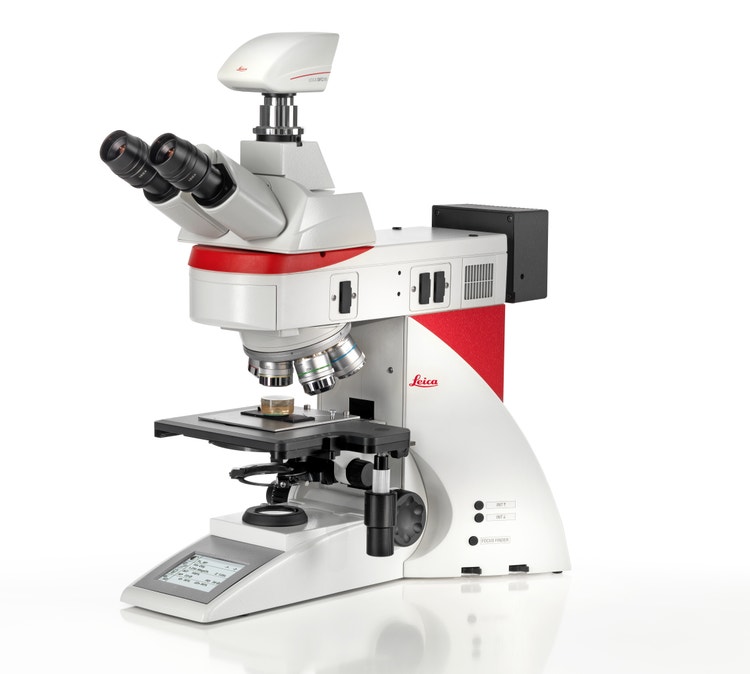

Featured Product

Brightfield Imaging and Image Characteristics

A brightfield microscope image displays the specimen as a darker object against a brightly illuminated background. Depending on the natural pigmentation of the sample or the type of staining used, structures with varying densities, such as cell walls, nuclei and organelles, can be easily distinguished with sharp structural definition. On the other hand, transparent regions may appear faint or invisible without staining.⁴

Several techniques were developed to improve visibility and image acquisition, including:

• Placing blue or polarizing filters on the light source helps display features invisible under white light.⁵
• Differential staining using multiple stains improves contrast across different cells or tissue compartments.⁶
• While aperture diaphragms may cause distortions while tweaking contrast, an iris diaphragm provides an alternative for controlling the amount and angle of light reaching the specimen to adjust contrast.⁷
• Mounting a digital camera to the microscope, which captures high-resolution images, can enhance image sharpness and color depth. Software solutions for rapid image acquisition and analysis also accompany digital cameras.

Applications of Brightfield Microscopy in Life Sciences

Brightfield microscopy remains the standard imaging tool across several disciplines in the life sciences, owing to its simple design, versatile adjustment features and non-destructive technique.

Brightfield microscopes are commonly used in cell biology to examine cell shape, size and organization. By staining the specimen, researchers can identify cell components such as the nucleus, cytoplasm and membranes.⁸

Tissue analysis in histology relies on brightfield microscopy. Researchers can visualize cellular architecture, tissue types and pathological changes by staining tissue sections with hematoxylin and eosin (H&E) and viewing under a brightfield microscope.⁹

It is also frequently used in microbiology to examine fixed microorganisms. Although most microbes are transparent and require staining, this technique remains essential for identifying and differentiating microbial species without disrupting their cellular integrity and functions.¹⁰

Brightfield microscopes are among the most essential instruments in hematology and pathology laboratories and medical educational settings for examining blood smears, tissue biopsies and other patient samples.¹¹

Brightfield microscopes' tissue and cell imaging prowess make them one of the core imaging methods in small-molecule drug discovery and biomedical research. Scientists can assess drug effects and potential toxicity by viewing changes in morphology, cellular organization and subcellular structures as a response to small-molecule drugs, cell therapies or monoclonal antibodies.¹²

Advantages and Disadvantages of Brightfield Microscopes

Brightfield microscopes offer several advantages over other imaging methods. These are:

• Lower cost compared to other microscopes
• Simple design, requiring few adjustments to optimize image clarity and contrast
• The ability to view naturally pigmented specimens without alterations
• Adaptability with digital imaging, software-driven analysis and lab automation
• Non-destructive viewing of biological specimens for longitudinal studies

Nevertheless, there are significant disadvantages associated with brightfield microscopes, including:

• Poor contrast for transparent specimens
• Only a fixed specimen can be viewed, which makes it unsuitable for live cell imaging
• The need for staining to improve contrast, which requires expertise in staining techniques
• Greater contrast might introduce image distortion
• Possible damage to cells caused by prolonged heat exposure from the light source

Advances in Automated Brightfield Imaging

To drive automation, brightfield microscopes can be combined with digital imaging, robotics and image analysis software. Automated imaging significantly increases throughput, enables batch image acquisition and time-lapse imaging. Automation can be invaluable for research facilities handling large samples, such as clinical pathology laboratories and R&D departments running drug screening and toxicity assessments. Automated brightfield imaging is also crucial for reproducibility, as it standardizes imaging conditions, such as focus, lighting and exposure, reducing variability between users or sessions. Furthermore, automated microscopes can seamlessly integrate into LIMS and LIS systems for efficient and secure image data transfer across collaborators.¹³

Another advancement in brightfield imaging is the invention of hybrid systems, combining the technique with phase contrast, fluorescence and confocal microscopy. This multimodal capability allows researchers to correlate structural data from brightfield with functional insights from fluorescence or 3D imaging, expanding the analytical power of microscopy in complex biological studies.¹⁴

Choosing the Best Brightfield Microscope

The key criteria for determining the best brightfield microscope include:

• Magnification: Researchers should determine the ideal magnification depending on the size of their samples (i.e., higher magnification for cells and lower magnification for tissues)
• Illumination: LED or halogen light sources provide sufficient brightness
• Stability: The microscope must have a robust and stable frame made from aluminum or steel to minimize vibration during imaging
• Focusing: The microscope should allow smooth and precise movement of knobs for accurate focusing, especially at high magnifications
• Optical quality: Optical glass lenses provide crisper images with higher resolution
• Advanced imaging modes: Especially for research and clinical use, users must opt for more advanced brightfield microscopes featuring digital image capturing and integrated image analysis software

The best choice of brightfield microscopes depends on the intended use. More advanced brightfield microscopes with superior optics, magnification and digital imaging are preferred for research and clinical applications that demand image documentation, longitudinal use and finer specimen details. Furthermore, other light microscopy types may be better suited for specific biological applications:

• Phase contrast for live, unstained cells
• Fluorescence microscopy for labeled molecules
• Confocal microscopy for high-resolution 3D imaging

References

1. Robertson LA. Antoni van Leeuwenhoek 1723–2023: a review to commemorate Van Leeuwenhoek’s death, 300 years ago: for submission to Antonie van Leeuwenhoek journal of microbiology. Antonie Van Leeuwenhoek 2023;116(10):919-935.
2. Gao PF, Lei G, Huang CZ. Dark-field microscopy: recent advances in accurate analysis and emerging applications. Anal Chem 2021;93(11):4707-4726.
3. Uka A, Ndreu Halili A, Polisi X, Topal AO, Imeraj G, Vrana NE. Basis of image analysis for evaluating cell biomaterial interaction using brightfield microscopy. Cells Tissues Organs 2021;210(2):77-104.
4. Gutiérrez-Medina B. Making sense of blobs, whorls, and shades: methods for label-free, inverse imaging in bright-field optical microscopy. Biophys Rev 2025:1-11.
5. Schlesinger N, Lipsky PE. Gout: Elsevier Health Sciences, 2018.
6. Ugolini F, Pasqualini E, Simi S, Baroni G, Massi D. Bright-field multiplex immunohistochemistry assay for tumor microenvironment evaluation in melanoma tissues. Cancers (Basel) 2022;14(15):3682.
7. Marcos C. The Polarizing Microscope. Crystallography: Introduction to the Study of Minerals: Springer; 2022:299-310.
8. Reigoto AM, Andrade SA, Seixas MC, Costa ML, Mermelstein C. A comparative study on the use of microscopy in pharmacology and cell biology research. PLoS One 2021;16(1):e0245795.
9. Hristu R, Stanciu SG, Dumitru A, Paun B, Floroiu I, Costache M, et al. Influence of hematoxylin and eosin staining on the quantitative analysis of second harmonic generation imaging of fixed tissue sections. Biomed Opt Express 2021;12(9):5829-5843.
10. Thomas P, Franco CM. Intracellular bacteria in plants: elucidation of abundant and diverse cytoplasmic bacteria in healthy plant cells using in vitro cell and callus cultures. Microorganisms 2021;9(2):269.
11. Liu Y, Levenson RM, Jenkins MW. Slide over: advances in slide-free optical microscopy as drivers of diagnostic pathology. Am J Pathol 2022;192(2):180-194.
12. Wang Y, Jeon H. 3D cell cultures toward quantitative high-throughput drug screening. Trends Pharmacol Sci 2022;43(7):569-581.
13. Dodkins R, Delaney JR, Overton T, Scholle F, Frias-De-Diego A, Crisci E, et al. A rapid, high-throughput, viral infectivity assay using automated brightfield microscopy with machine learning. SLAS technology 2023;28(5):324-333.
14. Gordon PD, De Ville C, Sacchettini JC, Coté GL. A portable brightfield and fluorescence microscope toward automated malarial parasitemia quantification in thin blood smears. PLoS One 2022;17(4):e0266441.
