ATTO 700 DPPE Labeled Phospholipid 5 mg
$undefined
Product No. AD-700-155
ATTO-Dye Labeled Phospholipids
In recent years the investigation of biological membranes, e.g. intracellular membranes of live cells, plasma membranes etc., has become a major subject of interest. As a result there is a growing demand for fluorescent dye-labeled lipids, in particular glycero-phospholipids, to be incorporated in biological membranes. ATTO offers a variety of glycero-phospholipids, carrying one or two fatty acid chains (lipophilic groups) and a phosphate ester residue (hydrophilic group).
ATTO-dye fluorescent phospholipids are labeled at the hydrophilic head group. After incorporation in, e.g., a plasma membrane (phospholipid bilayer) the fluorophore is located at the water/lipid interface of the membrane.
ATTO-TEC is a wholly owned subsidiary of Leica Microsystems
Currently we provide the phospholipids
- 1,2-dipalmitoyl-sn-glycero-3-phosphoethanolamine (DPPE),
- 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine (DOPE),
- 1-palmitoyl-2-hydroxy-sn-glycero-3-phosphoethanolamine (PPE)
- 1,2-dimyristoyl-sn-glycero-3-phosphoethanolamine (DMPE), and
- 1,2-dilauroyl-sn-glycero-3-phosphoethanolamine (DLPE)
labeled with ATTO-dyes.
- High fluorescence yield
- Excellent thermal and photo-stability
- Fluorescence quenching by guanine, tryptophan, etc.
- Hydrophilic
- Zwitterionic dye
- Highly suitable for single-molecule applications and high-resolution microscopy (SIM, STED, dSTORM, etc.)
| Modification | DPPE |
| Unit of Measure | 5 mg |
| Product Group | ATTO 700 |
| Product Type | Labeled Phospholipid |
| Emission Line (nm) | 647, 676 |
| Fluorescence Maximum (nm) | 716 |
| Light Source | Krypton-Ion laser |
| Correction Factor Used in Calculation of Degree of Labeling (DOL) in Case of Dye-DNA Conjugates (CF260 = e260 /emax ) | 0.26 |
| Correction Factor Used in Calculation of Degree of Labeling (DOL) in Case of Dye-Protein Conjugates (CF280 = e280 /emax) | 0.41 |
| Increase of Molecular Mass on Conjugation with ATTO-label (NHS-ester : amine) | 547.7 |
| Increase of Molecular Mass on Conjugation with ATTO-label (maleimide : thiol) | 687.8 |
| Change of Electrical Charge on Conjugation with ATTO-Label | 0 |
| Microscope Group | Fluorescent Labels |
| Applications | Fluorescence |

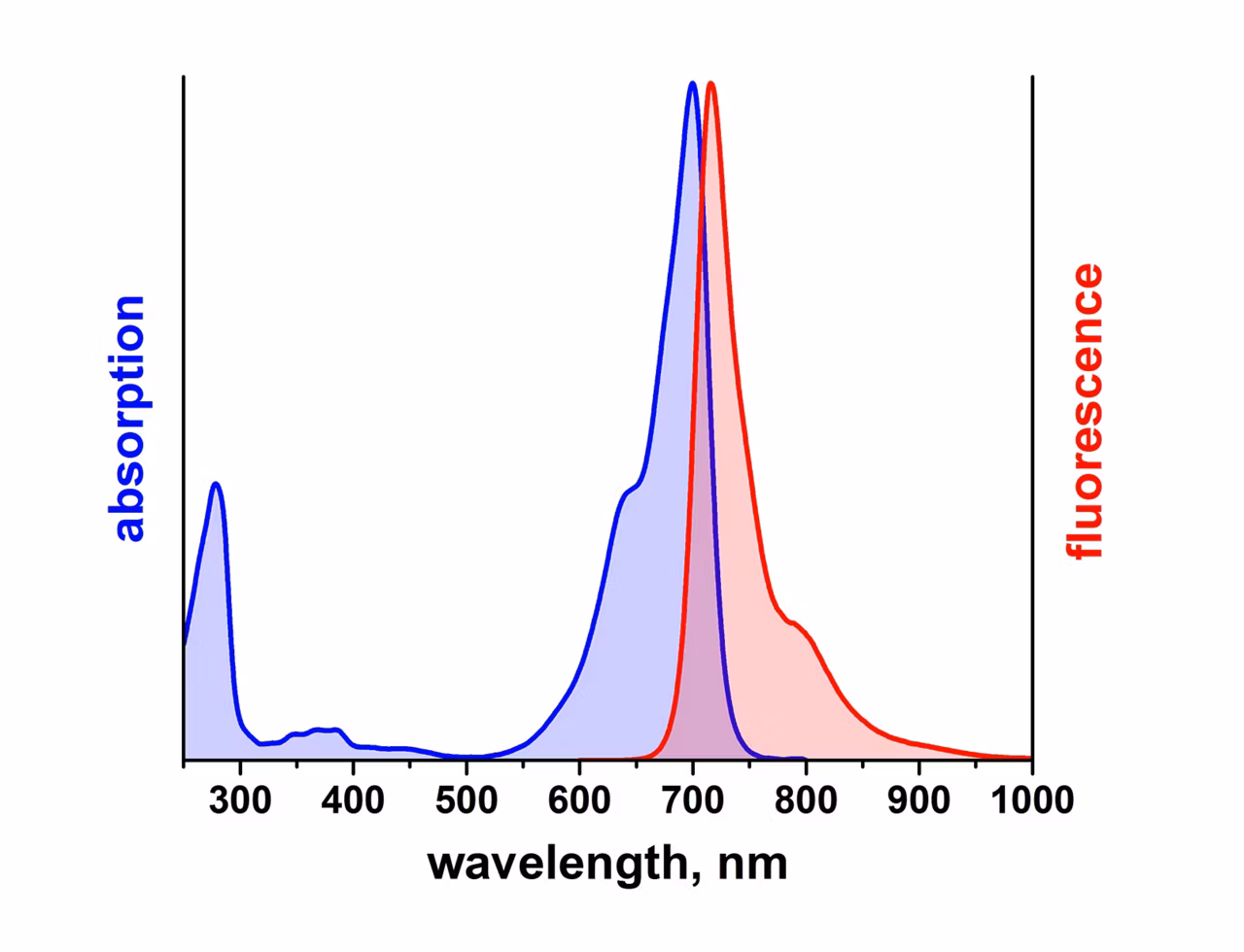

| Longest Wavelength Absorption Maximum (nm) | 700 |
| Molar Decadic Extinction Coefficient at the Longest Wavelength Absorption Maximum (M-1 cm-1) | 120000 |
| Fluorescence Quantum Yield (%) | 25 |
| Real Fluorescence Decay Time (ns) | 1.6 |
