ATTO 514 Iodoacetamide Fluorescent Label 5 mg
$undefined
Product No. AD-514-115
ATTO 514 is a new hydrophilic fluorescent label with excellent water solubility.
ATTO-TEC is a wholly owned subsidiary of Leica Microsystems

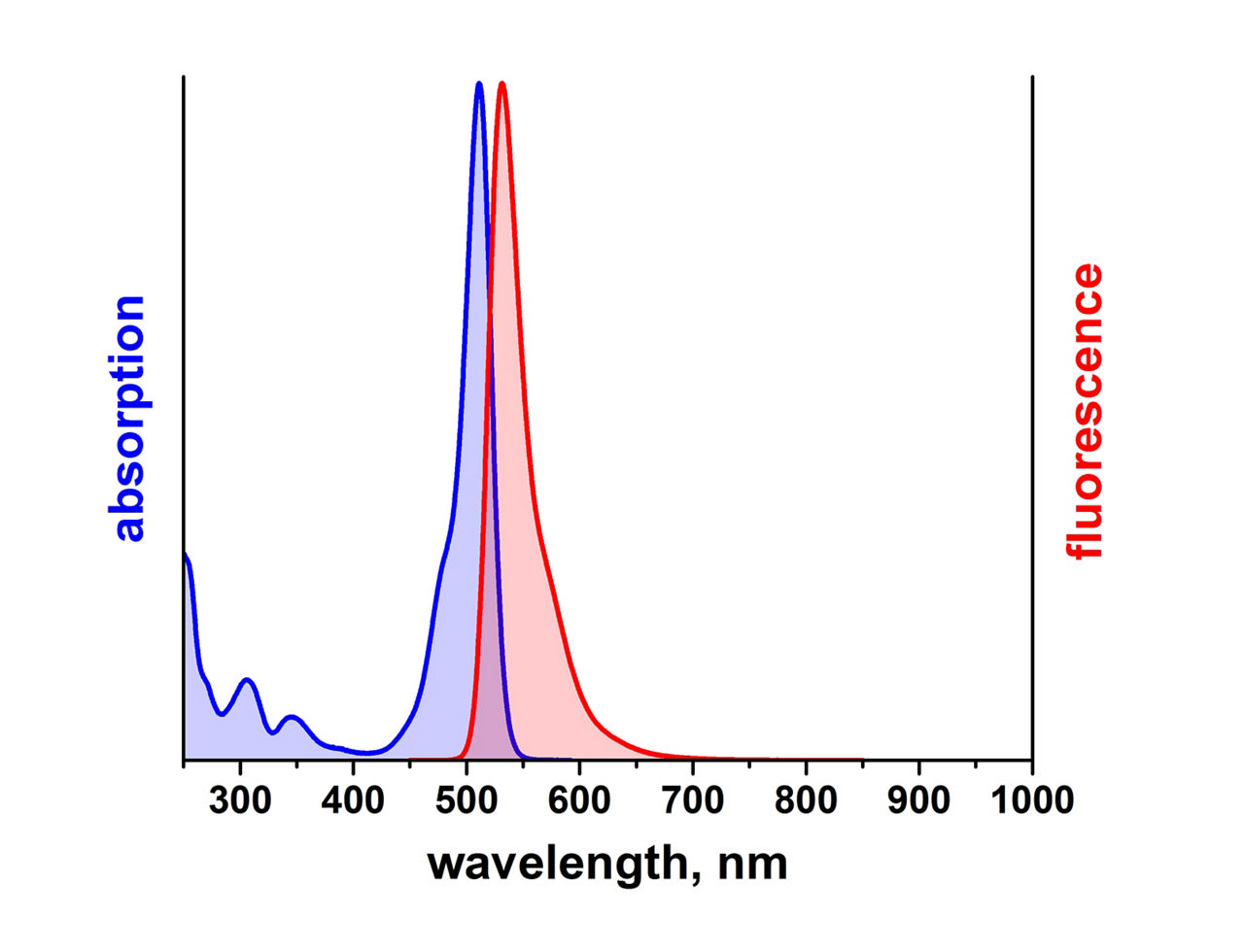

Optical properties
- λ abs = 511 nm
- ε max = 1.15×105 M -1 cm -1
- λ fl = 532 nm
- n fl = 85 %
- τ fl = 3.9 ns
- CF 260 = ε 260 /ε max = 0.21
- CF 280 = ε 280 / ε max = 0.07
ATTO 514 is a new hydrophilic fluorescent label with excellent water solubility. The dye exhibits strong absorption, high fluorescence quantum yield, and exceptional thermal and photo-stability. Thus ATTO 514 is highly suitable for single-molecule detection applications and high-resolution microscopy such as PALM, dSTORM, STED etc. Additionally the dye highly qualifies to be applied in flow cytometry (FACS), fluorescence in-situ hybridization (FISH and many more.
The fluorescence is excited most efficiently in the range 510 - 535 nm. A suitable source of excitation is the 514 nm line of an Argon-Ion laser.
Characteristic properties of our fluorescent dyes
- Strong absorption (high extinction coefficient)
- High fluorescence quantum yield
- High photostability
| Modification | Iodoacetamide |
| Unit of Measure | 5 mg |
| Product Group | ATTO 514 |
| Product Type | Fluorescent Label |
| Emission Line (nm) | 488, 514 |
| Fluorescence Maximum (nm) | 532 |
| MH+ (g/mol) | 964 |
| Molecular Weight (g/mol) | 1078 |
| Light Source | Argon-Ion laser |
| Correction Factor Used in Calculation of Degree of Labeling (DOL) in Case of Dye-DNA Conjugates (CF260 = e260 /emax ) | 0.21 |
| Correction Factor Used in Calculation of Degree of Labeling (DOL) in Case of Dye-Protein Conjugates (CF280 = e280 /emax) | 0.07 |
| Increase of Molecular Mass on Conjugation with ATTO-label (NHS-ester : amine) | 734.6 |
| Increase of Molecular Mass on Conjugation with ATTO-label (maleimide : thiol) | 874.7 |
| Change of Electrical Charge on Conjugation with ATTO-Label | - 1 |
| Microscope Group | Fluorescent Labels |
| Applications | Fluorescence |
| Longest Wavelength Absorption Maximum (nm) | 511 |
| Molar Decadic Extinction Coefficient at the Longest Wavelength Absorption Maximum (M-1 cm-1) | 115000 |
| Fluorescence Quantum Yield (%) | 85 |
| Real Fluorescence Decay Time (ns) | 3.9 |
