ATTO 488 DMPE Labeled Phospholipid 1 mg
$undefined
Product No. AD-488-191
ATTO-Dye Labeled Phospholipids
In recent years the investigation of biological membranes, e.g. intracellular membranes of live cells, plasma membranes etc., has become a major subject of interest. As a result there is a growing demand for fluorescent dye-labeled lipids, in particular glycero-phospholipids, to be incorporated in biological membranes. ATTO offers a variety of glycero-phospholipids, carrying one or two fatty acid chains (lipophilic groups) and a phosphate ester residue (hydrophilic group).
ATTO-dye fluorescent phospholipids are labeled at the hydrophilic head group. After incorporation in, e.g., a plasma membrane (phospholipid bilayer) the fluorophore is located at the water/lipid interface of the membrane.
ATTO-TEC is a wholly owned subsidiary of Leica Microsystems
Currently we provide the phospholipids
- 1,2-dipalmitoyl-sn-glycero-3-phosphoethanolamine (DPPE),
- 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine (DOPE),
- 1-palmitoyl-2-hydroxy-sn-glycero-3-phosphoethanolamine (PPE)
- 1,2-dimyristoyl-sn-glycero-3-phosphoethanolamine (DMPE), and
- 1,2-dilauroyl-sn-glycero-3-phosphoethanolamine (DLPE)
labeled with ATTO-dyes.
| Modification | DMPE |
| Unit of Measure | 1 mg |
| Product Group | ATTO 488 |
| Product Type | Labeled Phospholipid |
| Emission Line (nm) | 488 |
| Fluorescence Maximum (nm) | 520 |
| Light Source | Argon-Ion laser |
| Correction Factor Used in Calculation of Degree of Labeling (DOL) in Case of Dye-DNA Conjugates (CF260 = e260 /emax ) | 0.22 |
| Correction Factor Used in Calculation of Degree of Labeling (DOL) in Case of Dye-Protein Conjugates (CF280 = e280 /emax) | 0.09 |
| Increase of Molecular Mass on Conjugation with ATTO-label (NHS-ester : amine) | 570.6 |
| Increase of Molecular Mass on Conjugation with ATTO-label (maleimide : thiol) | 710.7 |
| Change of Electrical Charge on Conjugation with ATTO-Label | - 1 |

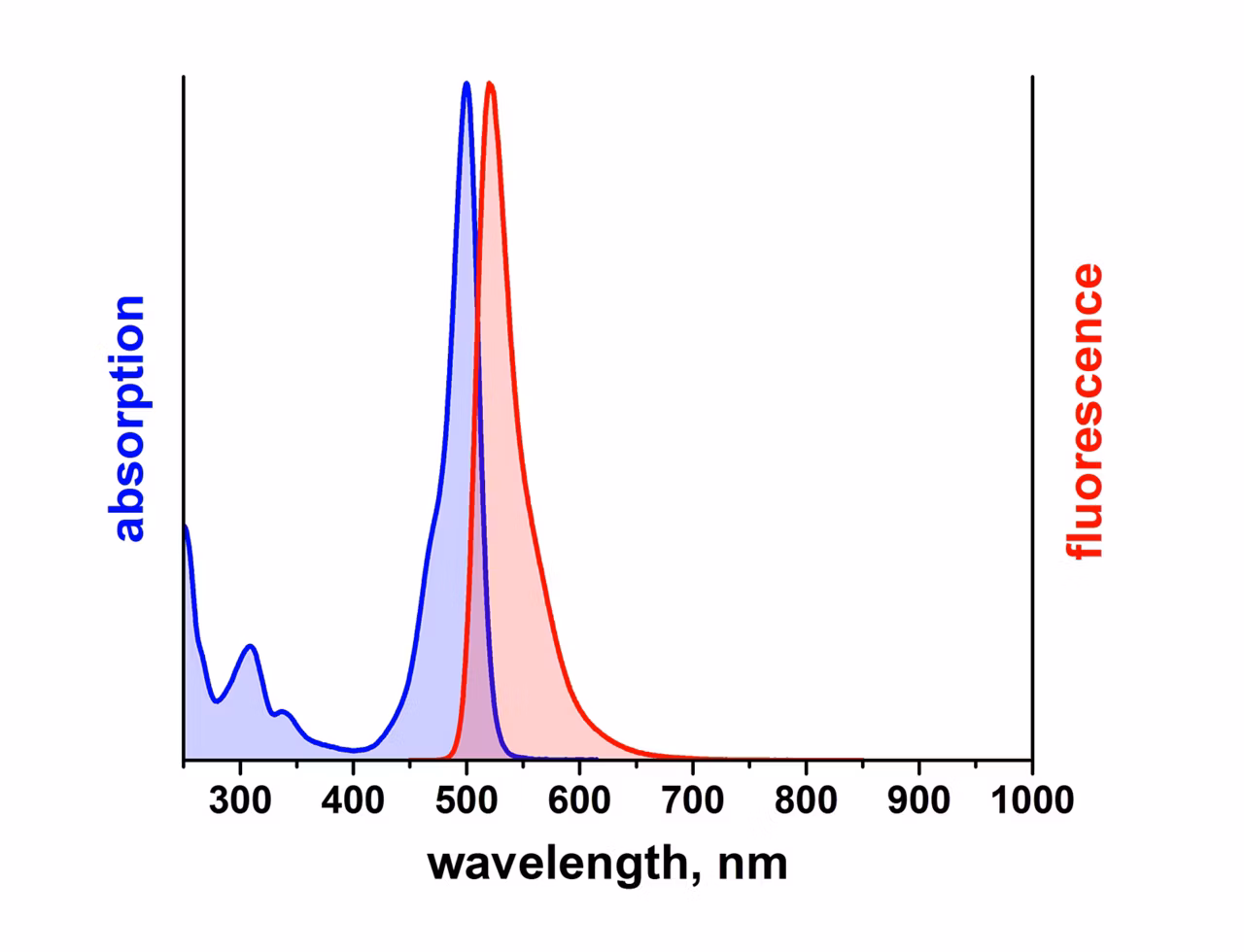

| Longest Wavelength Absorption Maximum (nm) | 500 |
| Molar Decadic Extinction Coefficient at the Longest Wavelength Absorption Maximum (M-1 cm-1) | 90000 |
| Fluorescence Quantum Yield (%) | 80 |
| Real Fluorescence Decay Time (ns) | 4.1 |
