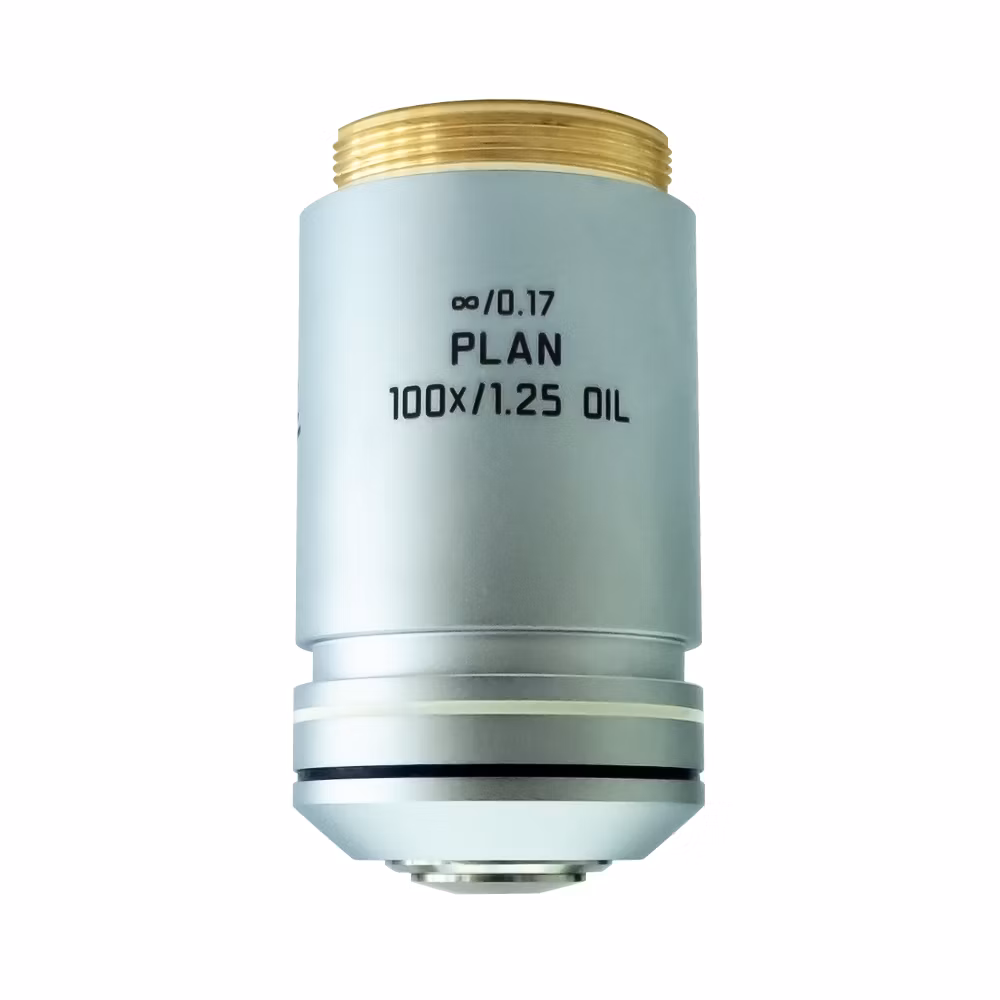

Microscope Objective PLAN 100x/1,25 OIL
$undefined
Plan 100x/1.25 NA, 0.10MM W.D., Oil
Product No. 13613243
Objective PLAN 100x/1,25 OIL has a magnification of 100X and a numerical aperture of 1.25. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.10mm and a FN of 18.
| Light | Transmitted Light (TL) |
| Contrasting Methods | Fluorescence, Brightfield, Qualitative Polarization |
| Numerical Aperture | 1.25 |
| Objective Type | HI PLAN |
| Immersion | OIL |
| Coverglass | With Coverglass |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 0.10 |
| Field Number (FN) | 18 |
| Magnification | 100 |
| Iris Diaphragm | NO |
| Spring Loaded | YES |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | NO |
| Numeric Aperture Filter | ≥ 1 |
| Magnification Filter | 86x - 100x |
| Field Number Filter | < 20 |
| Working Distance Filter | < 0.3 |
