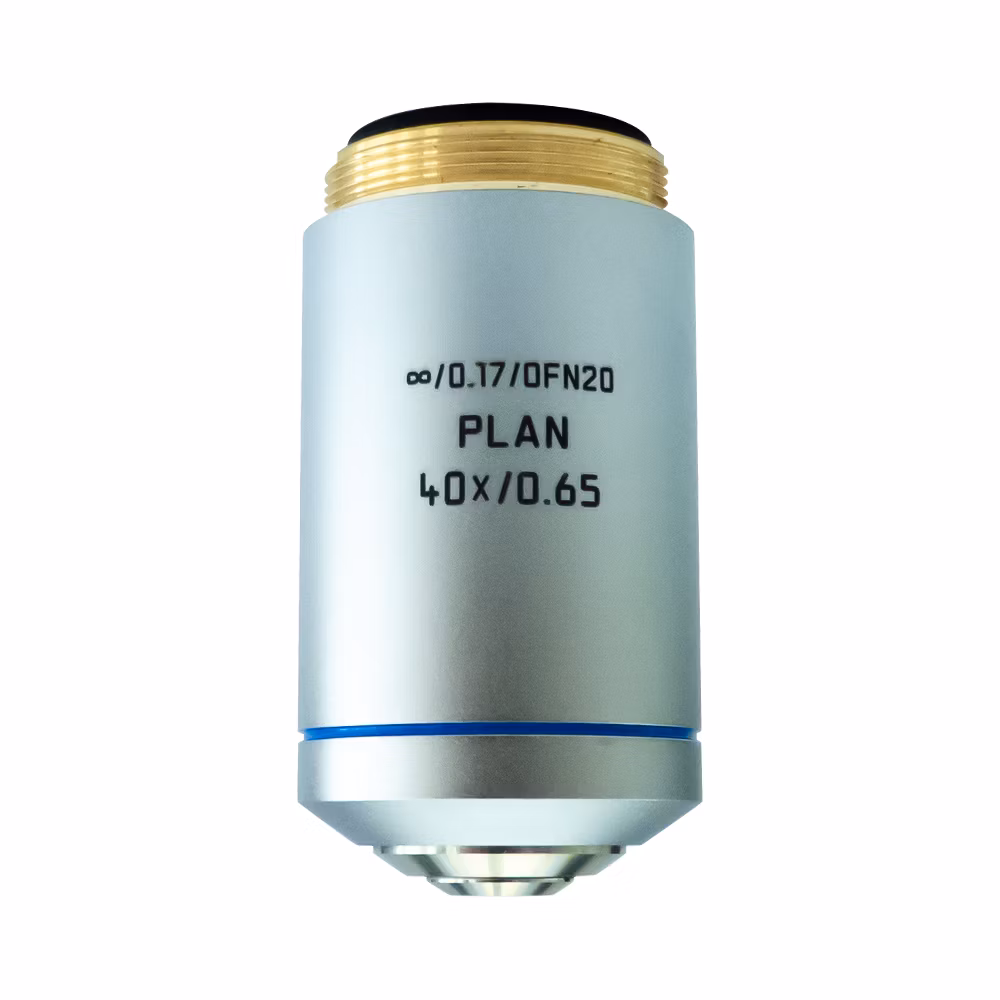

Microscope Objective PLAN 40x/0,65
$undefined
Plan 40X/0.65 NA, 0.31MM W.D.
Product No. 13613242
Objective PLAN 40x/0,65 has a magnification of 40X and a numerical aperture of 0.65. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 0.3mm and a FN of 20.
| Light | Transmitted Light (TL) |
| Contrasting Methods | Fluorescence, Brightfield, Transmitted Light Darkfield, Qualitative Polarization |
| Numerical Aperture | 0.65 |
| Objective Type | HI PLAN |
| Immersion | DRY |
| Coverglass | With Coverglass |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 0.3 |
| Field Number (FN) | 20 |
| Magnification | 40 |
| Iris Diaphragm | NO |
| Spring Loaded | YES |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | NO |
| Numeric Aperture Filter | 0.65 - 0.95 |
| Magnification Filter | 40x |
| Field Number Filter | 20 - 24 |
| Working Distance Filter | < 0.3 |
