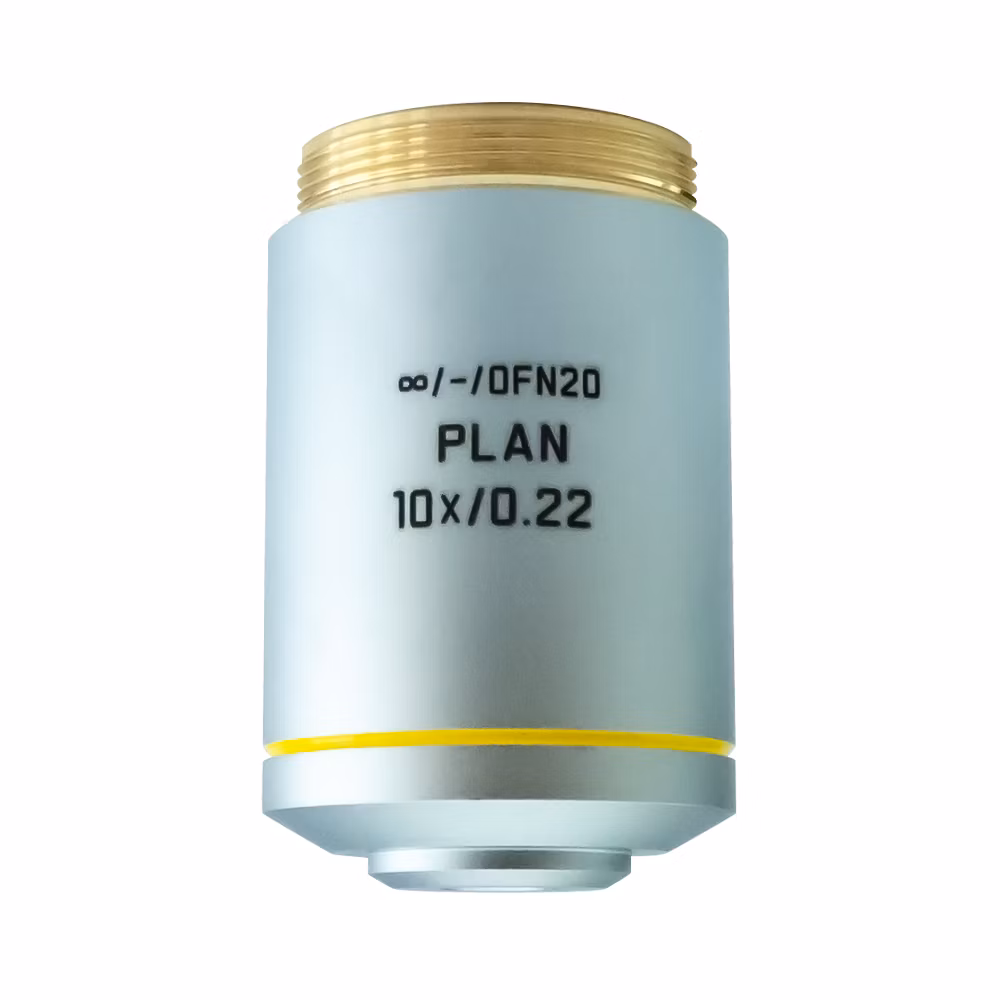

Microscope Objective PLAN 10x/0,22
$undefined
Plan 10X/0.22 NA, 7.8mm W.D.
Product No. 13613241
Objective PLAN 10x/0,22 has a magnification of 10X and a numerical aperture of 0.22. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 7.8mm and a FN of 20.
| Light | Transmitted Light (TL) |
| Contrasting Methods | Fluorescence, Brightfield, Transmitted Light Darkfield, Qualitative Polarization |
| Numerical Aperture | 0.22 |
| Objective Type | HI PLAN |
| Immersion | DRY |
| Coverglass | With and without Coverglass |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 7.8 |
| Field Number (FN) | 20 |
| Magnification | 10 |
| Iris Diaphragm | NO |
| Spring Loaded | NO |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | NO |
| Numeric Aperture Filter | 0.12 - 0.32 |
| Magnification Filter | 10x |
| Field Number Filter | 20 - 24 |
| Working Distance Filter | > 5 |
