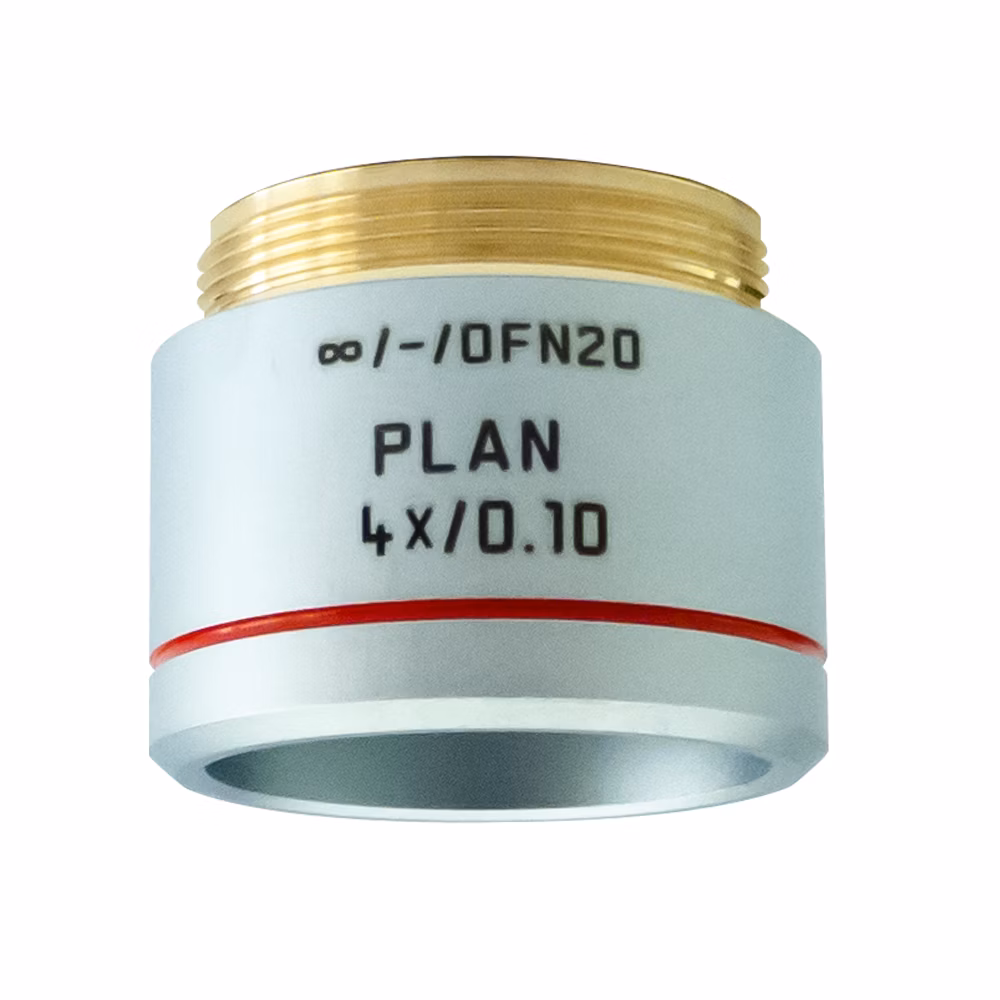

Microscope Objective PLAN 4x/0,10
$undefined
Plan 4X/0.10NA, 26.2mmW.D.
Product No. 13613240
Objective PLAN 4x/0,10 has a magnification of 4X and a numerical aperture of 0.1. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 26.2mm and a FN of 20.
| Light | Transmitted Light (TL) |
| Contrasting Methods | Fluorescence, Brightfield, Qualitative Polarization |
| Numerical Aperture | 0.1 |
| Objective Type | HI PLAN |
| Immersion | DRY |
| Coverglass | With and without Coverglass |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 26.2 |
| Field Number (FN) | 20 |
| Magnification | 4 |
| Iris Diaphragm | NO |
| Spring Loaded | NO |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | NO |
| Numeric Aperture Filter | ≤ 0.1 |
| Magnification Filter | 1.25x - 4x |
| Field Number Filter | 20 - 24 |
| Working Distance Filter | > 5 |
