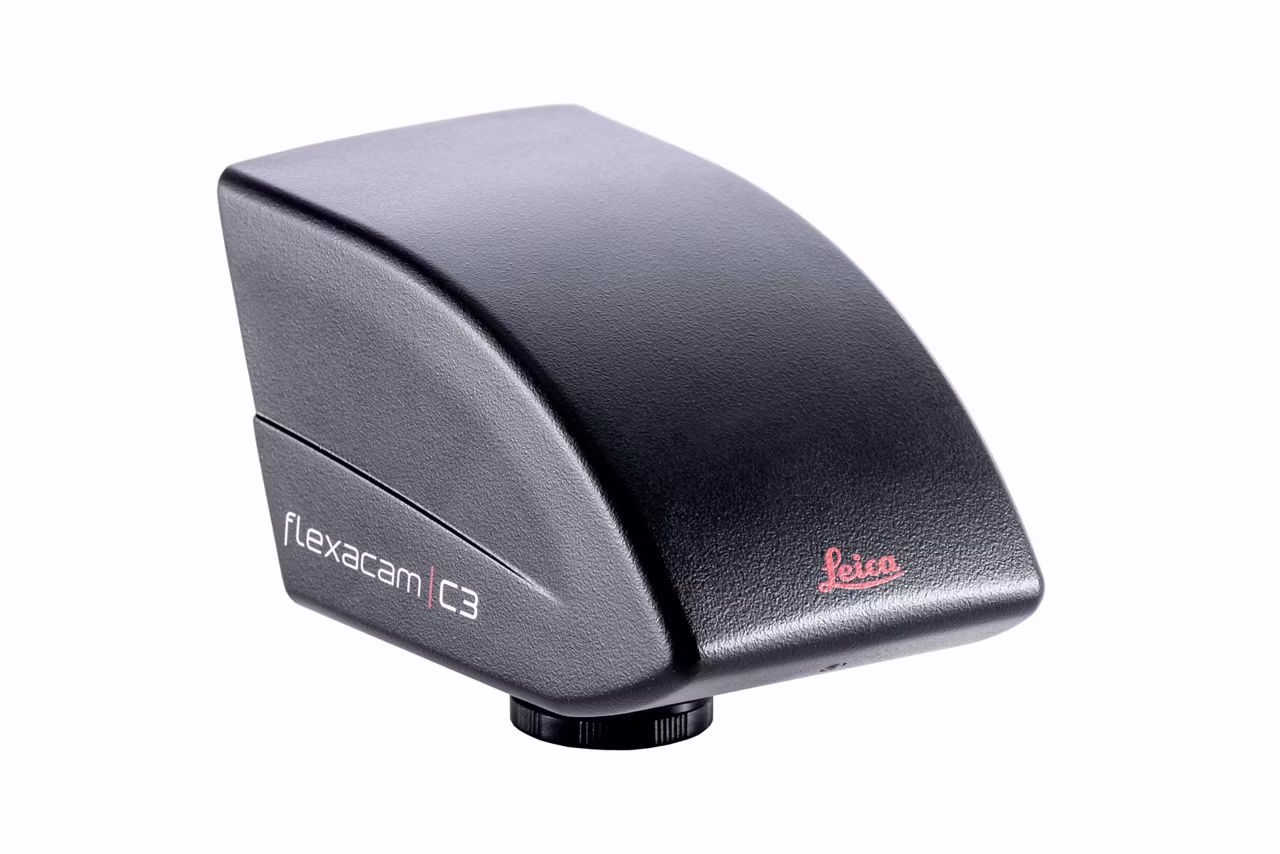

Flexacam C3 Camera
$undefined
Save time when capturing, documenting, and sharing images with the Flexacam C3 microscope camera. It transforms your microscope into a stand-alone digital imaging station without the need for a PC.
Flexacam C3
- Camera Digital color camera with CMOS sensor (1/2.3)
- Stand alone operation possible*
- 4k 60fps live image via HDMI*
- JPG images with up to 12 MP
- Full HD MJPG Video recording with 30 fps
- Camera control via computer (PC mode) or via USB Mouse (not included)
- Capture directly to USB Stick or send images via E-Mail*
- USB3.1 type C connection
- Including: USB C to A cable
- Supported OS: Win 10, 11
- Recommended c-mount adapter 0.5x/0.55x.
*Stand Alone Kit 12730534 needed to enable Stand alone operation (Mouse, USB Stick, HDMI Cable and Power Supply)
Recommended c-mount adapters:
- Stereo Microscope: 0.50x No 10450528
- Compound Microscope: 0.55x No: 11541544
| Sensor Type | CMOS |
| Snesor Size | 1 / 2.3“ |
| Sensor Format | 4,000px X 3,000px (12 MP) |
| Sensor Cooling | Passive |
| Shutter Mode | Rolling |
| Trigger Type | Footswitch |
| Exposure Range | 100 μs – 120 ms |
| Maximum Frames Per Second | 60 fps |
| Pixel Dimensions | 1.55 μm × 1.55 μm |
| USB Connectors | 4 |
| Mechanical Interface | C-mount |
| Optical Filter | 650 nm IR |
| Operating System | LAS X |
| Power Consumption | 15 W |
| Operating Tempreature | 10 - 40 C |
