Microscope Objective Optik Kit GSD 160x
$undefined
Optic Kit GSD, 160x
Product No. 11888434

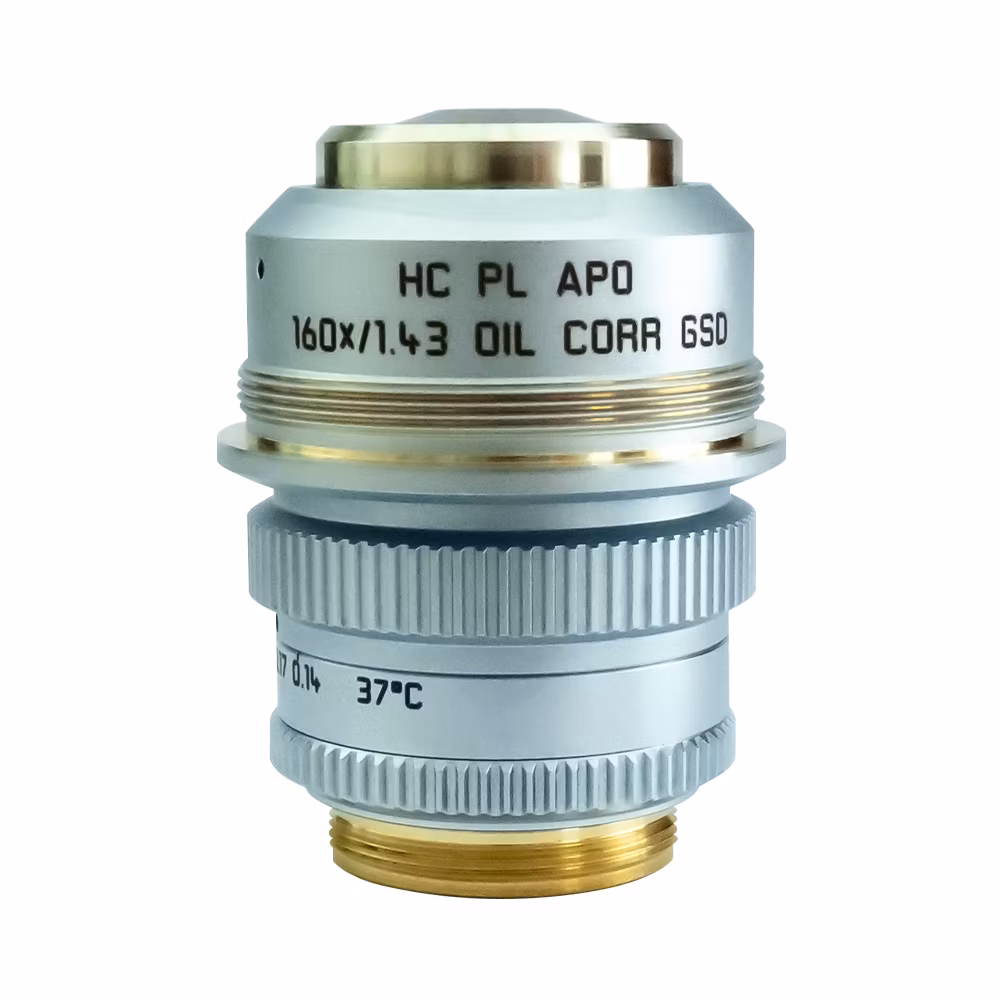

Objective Optik Kit GSD 160x has a magnification of 160X and a numerical aperture of 1.43. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.07mm and a FN of 25.
| Light | Transmitted Light (TL) |
| Contrasting Methods | Brightfield, Differential Interference Contrast, Fluorescence |
| Technique/Application | STORM / GSD, TIRF (Total Internal Reflection Microscopy) |
| Transmission | UV (365nm) |
| Numerical Aperture | 1.43 |
| Objective Type | PLAN APO |
| Immersion | OIL |
| Coverglass | With Coverglass |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 0.07 |
| Field Number (FN) | 25 |
| Magnification | 160 |
| Iris Diaphragm | NO |
| Spring Loaded | YES |
| Suitable for AFC (Adaptive Focus Control) | YES |
| Correction Ring (CORR) | CORR |
| Exit Pupil Position/DIC prism | C |
| Numeric Aperture Filter | ≥ 1 |
| Magnification Filter | > 100x |
| Field Number Filter | 25 |
| Working Distance Filter | < 0.3 |
