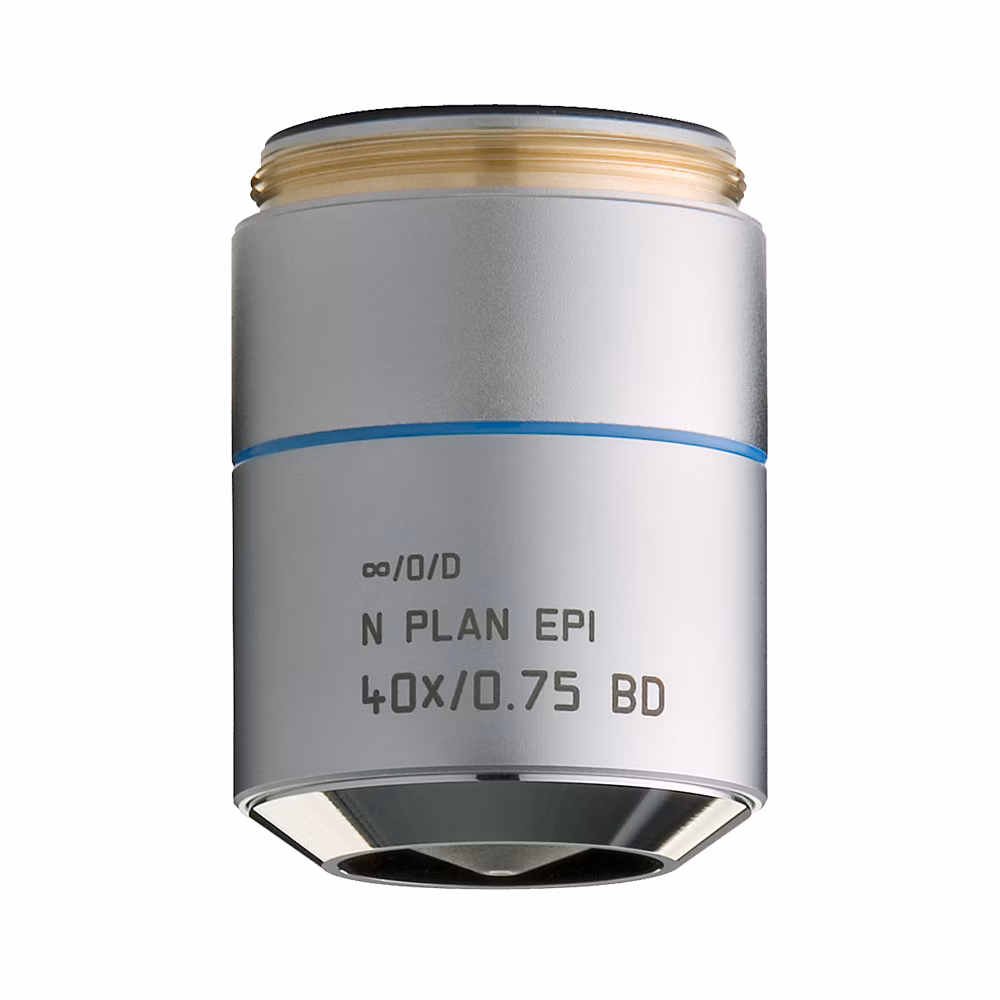

Microscope Objective N PLAN EPI 40x/0,75 BD
$undefined
The N PLAN objective class comprises further improved achromats with good field flatness up to 25 mm. N PLAN objectives are suitable for transmitted light and DIC, N PLAN PH for phase contrast. For incident light applications including differential interference contrast (DIC), N PLAN EPI objectives are available. The N PLAN EPI BD can also be used as a darkfield objective. The N PLAN EPI incident light objectives feature excellent image contrast and safe working distances
Product No. 11566078
Objective N PLAN EPI 40x/0,75 BD has a magnification of 40X and a numerical aperture of 0.75. For use in dry immersion material environment and attached with an objective thread of M32 having a free working distance of 0.37mm and a FN of 22.
- Field Flatness (OFN) up to 25 mm
- Absolute Value(s) of Focus between red and blue wavelength (2 colors) is ≤ 2x depth of field
- Application for standard applications in the visual spectral range
| Contrasting Methods | Brightfield, Differential Interference Contrast, Fluorescence, Incident Light Darkfield, Qualitative Polarization, Transmitted Light Darkfield |
| Immersion | DRY |
| Coverglass | NO |
| Objective Thread | M32 |
| Free Working Distance (WD in mm) | 0.37 |
| Field Number (FN) | 22 |
| Iris Diaphragm | NO |
| Spring Loaded | YES |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Transmission | UV (365nm) |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | D |
