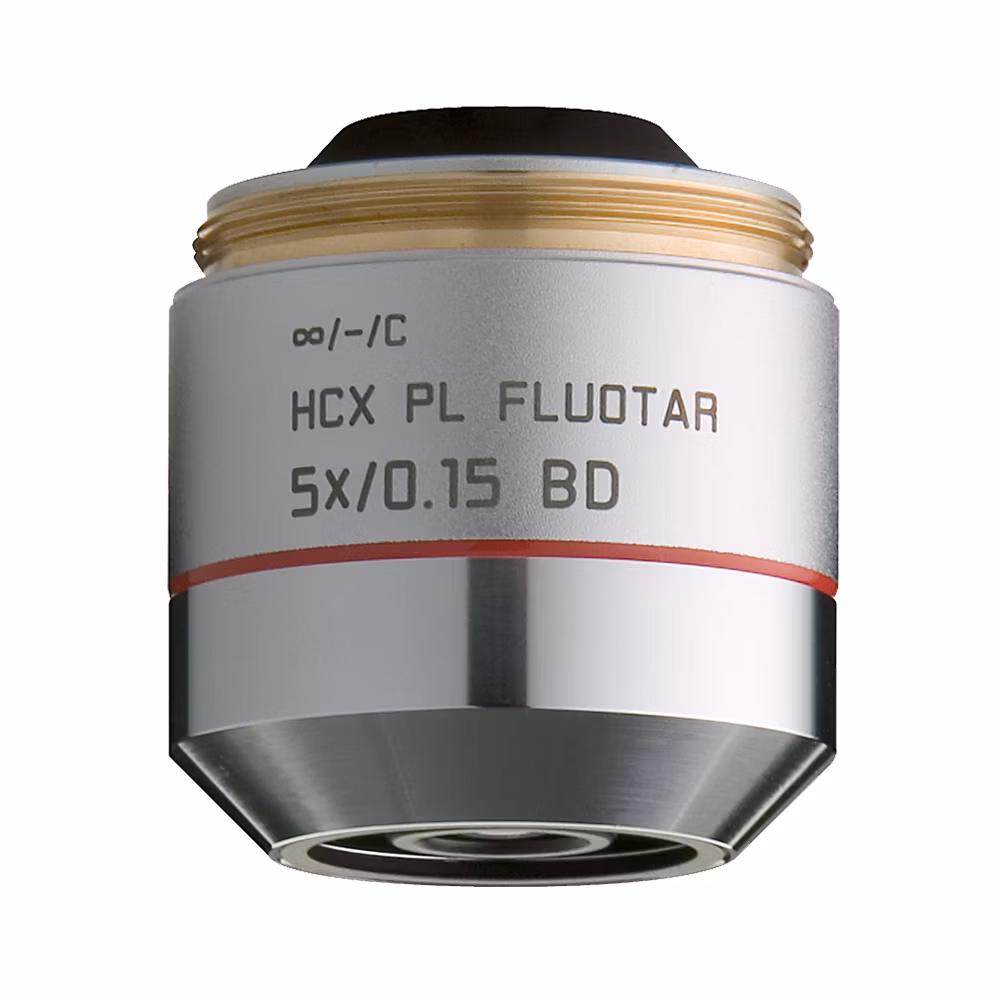

Microscope Objective HC PL FLUOTAR 5x/0,15 BD
$undefined
PL Fluotars are powerful universal objectives with outstanding chromatic correction for at least three wavelengths which makes them suitable for fluorescence imaging.
Field planarity (PL) is computed for a 25 mm field of view. They are made of special glass to enable maximum transmission. This makes them powerful photon collectors in fluorescence microscopy.
Leica’s Fluotar portfolio features various application-optimized correction collars (CORR) to compensate for external influences such as temperature, coverslip thickness and immersion media.
Product No. 11566046

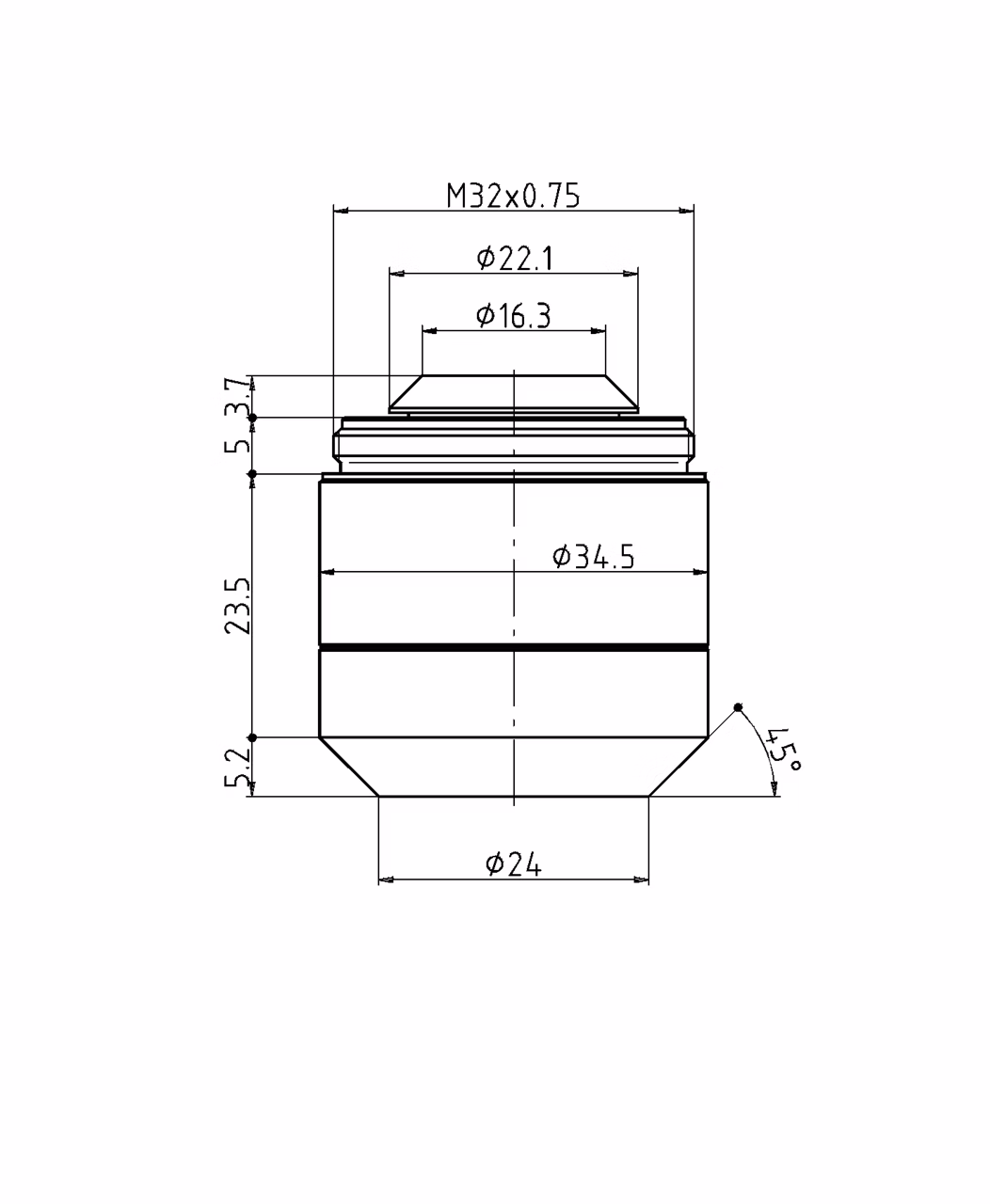

Objective HC PL FLUOTAR 5x/0,15 BD has a magnification of 5X and a numerical aperture of 0.15. For use in dry immersion material environment and attached with an objective thread of M32 having a free working distance of 13.0mm and a FN of 25.
| Light | Transmitted Light (TL), Incident Light (IL) |
| Contrasting Methods | Brightfield, Differential Interference Contrast, Fluorescence, Incident Light Darkfield, Qualitative Polarization, Transmitted Light Darkfield |
| Numerical Aperture | 0.15 |
| Objective Type | PL FLUOTAR |
| Immersion | DRY |
| Coverglass | With and without Coverglass |
| Objective Thread | M32 |
| Free Working Distance (WD in mm) | 13.0 |
| Field Number (FN) | 25 |
| Magnification | 5 |
| Iris Diaphragm | NO |
| Spring Loaded | NO |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | C |
| Numeric Aperture Filter | 0.12 - 0.32 |
| Magnification Filter | 5x - 8x |
| Field Number Filter | 25 |
| Working Distance Filter | > 5 |
