Microscope Objective HC PL FLUOTAR 20x/0,50 POL

$undefined

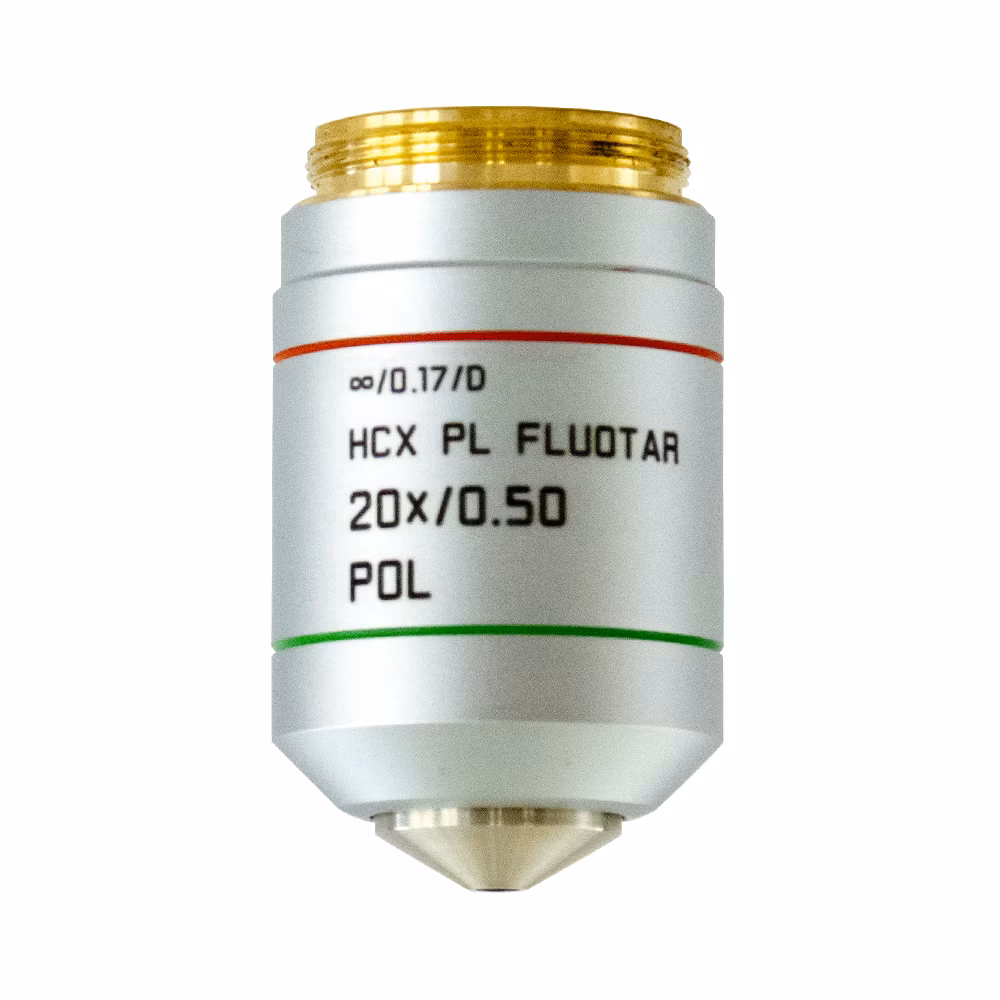

11556501 Picture Kid10480484

11556501 Dimension Sheet Kid10480034

11556501 Transmission Curve Card Kid21018515

11556501 Transmission Curve Card Large Kid21018514

Product No. 11556501

Objective HC PL FLUOTAR 20x/0,50 POL has a magnification of 20X and a numerical aperture of 0.5. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 1.15mm and a FN of 25.

Product No. 11556501

Objective HC PL FLUOTAR 20x/0,50 POL has a magnification of 20X and a numerical aperture of 0.5. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 1.15mm and a FN of 25.

Technical Specifications
Light Transmitted Light (TL)
Contrasting Methods Brightfield, Differential Interference Contrast, Fluorescence, Qualitative Polarization, Quantitative Polarization, Transmitted Light Darkfield
Transmission UV (340nm), UV (365nm)
Numerical Aperture 0.5
Objective Type PL FLUOTAR
Immersion DRY
Coverglass With Coverglass
Objective Thread M25
Free Working Distance (WD in mm) 1.15
Field Number (FN) 25
Magnification 20
Iris Diaphragm NO
Spring Loaded NO
Suitable for AFC (Adaptive Focus Control) YES
Correction Ring (CORR) NO
Exit Pupil Position/DIC prism D
