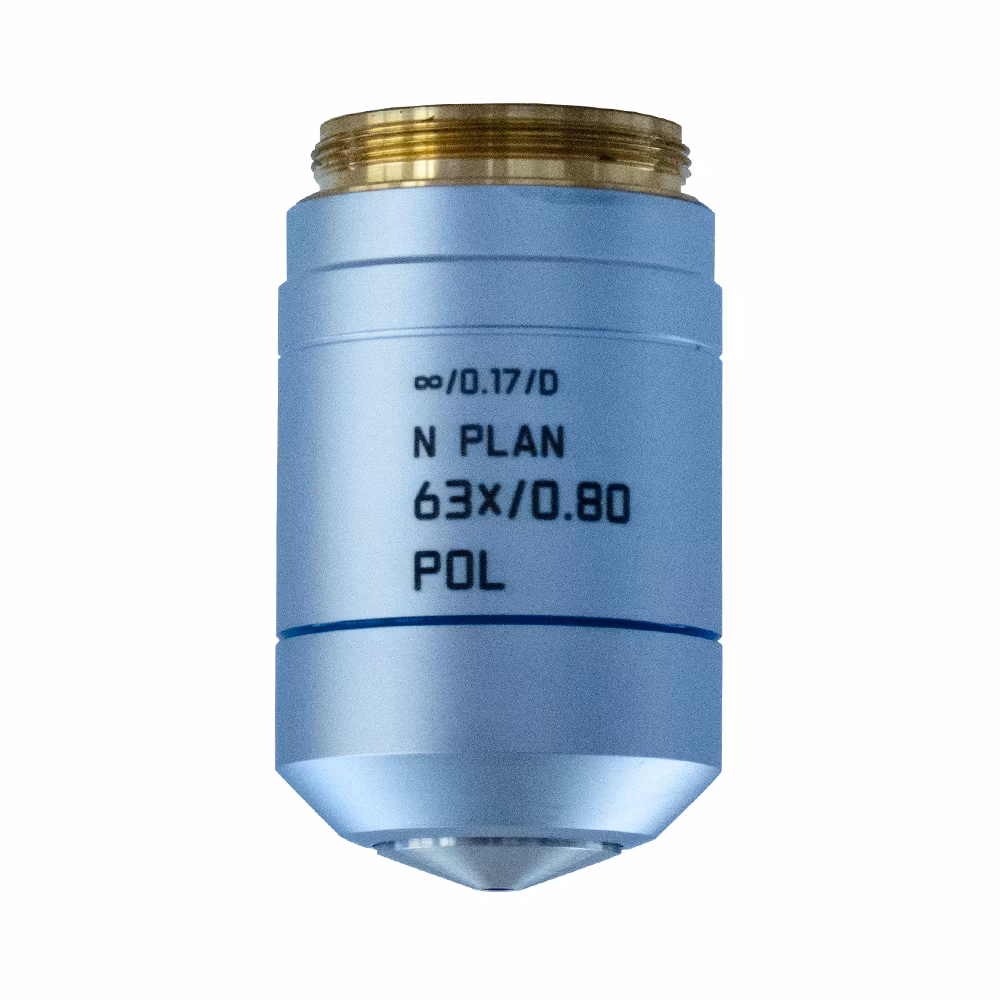

Microscope Objective N PLAN 63x/0,80 POL
$undefined
The N PLAN objective class comprises further improved achromats with good field flatness up to 25 mm. N PLAN objectives are suitable for transmitted light and DIC, N PLAN PH for phase contrast. For incident light applications including differential interference contrast (DIC), N PLAN EPI objectives are available. The N PLAN EPI BD can also be used as a darkfield objective. The N PLAN EPI incident light objectives feature excellent image contrast and safe working distances.
Product No. 11556056
Objective N PLAN 63x/0,80 POL has a magnification of 63X and a numerical aperture of 0.8. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 0.26mm and a FN of 22.
| Light | Transmitted Light (TL) |
| Contrasting Methods | Brightfield, Differential Interference Contrast, Fluorescence, Qualitative Polarization, Quantitative Polarization, Transmitted Light Darkfield |
| Transmission | UV (365nm) |
| Numerical Aperture | 0.8 |
| Objective Type | N PLAN |
| Immersion | DRY |
| Coverglass | With Coverglass |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 0.26 |
| Field Number (FN) | 22 |
| Magnification | 63 |
| Iris Diaphragm | NO |
| Spring Loaded | YES |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | D |
| Numeric Aperture Filter | 0.65 - 0.95 |
| Magnification Filter | 63x |
| Field Number Filter | 20 - 24 |
| Working Distance Filter | < 0.3 |
