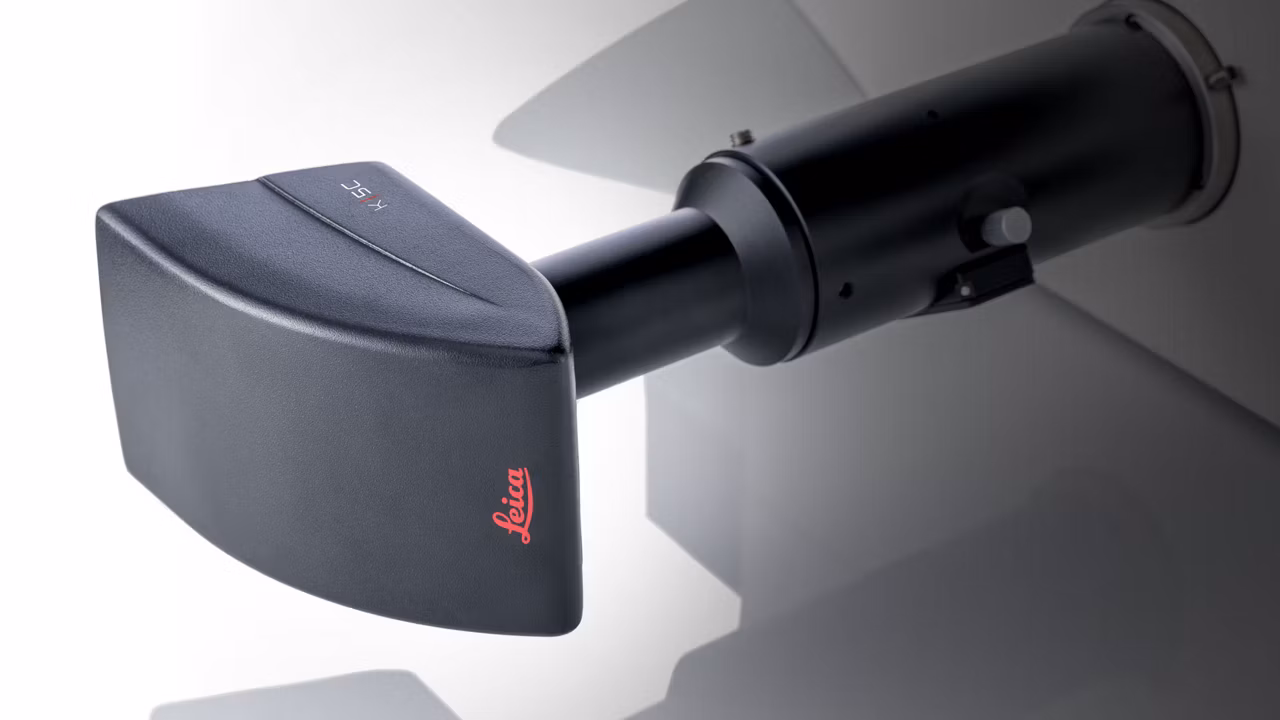

K5C The Color CMOS Camera
$undefined
The powerful, focused research choice
When small details make all the difference, the K5C microscope camera gives you the power to find them. The color CMOS camera of choice for the materials and life science research expert, the K5C helps you to distinguish, study and document the small details in high resolution.
The K5C enables you to capture high-resolution images at any magnification level due to its 20 MP CMOS sensor. You’ll get insights and results for live images fast, thanks to the frame rate of 32 fps, helping you use speed to your imaging advantage.
Your benefits
- Distinguish, study and document small differences
- Capture more in a single shot
- See changes immediately in your live image
| Sensor Type | CMOS |
| Snesor Size | 15.86mm |
| Sensor Format | 5472px x 3648px, (20 MP) |
| Sensor Cooling | Passive |
| Shutter Mode | Rolling |
| Exposure Range | 1 ms - 10 s |
| Maximum Frames Per Second | 32 fps |
| Pixel Dimensions | 2.4 μm x 2.4 μm |
| USB Connectors | 1 |
| Mechanical Interface | C-mount |
| Binning Options | 2 x 2, 3 x 3 |
| Optical Filter | 650 nm IR |
| Operating System | LAS X |
| Power Consumption | 3.5 W |
| Operating Tempreature | 5 - 40 C |
| Dark Current | 4 e- |
| Maximum Full Well Capacity | 15000 e- |
| Dynamic Range | 71 dB |
