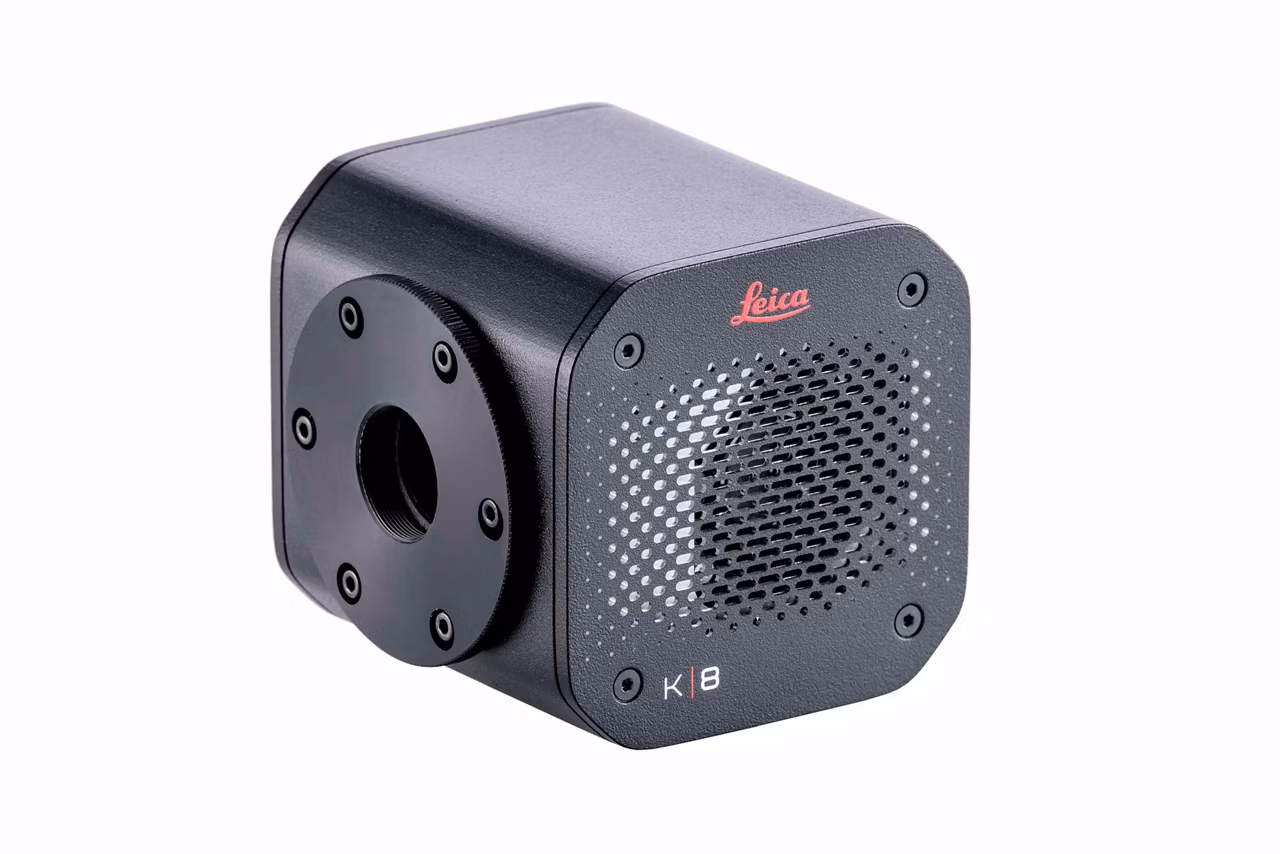

K8 Scientific CMOS Camera
$undefined
The K8 is a cooled 4.2 MP sCMOS camera with a 95% peak quantum efficiency (QE) offering up to 95 frames per second acquisition speed at full resolution, with an extremely low read noise (1 e- median). Based on cutting-edge Gpixel scientific CMOS sensor technology with a pixel size of 6.5 µm (18.8 mm sensor diagonal) and an extended dynamic range of 25000:1, this monochrome fluorescence camera is perfectly suited for demanding fluorescence applications.
- Pixel: 2048 x 2048 (4.2 Megapixel)
- Pixel size: 6.5 µm
- QE: 95% max at 580nm
- Cooling: Air cooled (-5°C)
- Bit depth: 8//11/12/16 bit
- Fps: up to 95 fps
- Binning: 2 x 2
- Interface: USB3.2 Gen2
The K8 camera kit includes camera head, USB3.2 cable and PCIe board, power supply, Leica DVD with camera manual, and a quick start guide
| Sensor Type | CMOS |
| Snesor Size | 18.8mm |
| Sensor Format | 2048px x 2048px (4.2 Mp) |
| Sensor Cooling | Ambient |
| Shutter Mode | Rolling |
| Trigger Type | Tigger Cable |
| Exposure Range | 1 ms - 10 s |
| Maximum Frames Per Second | 95 fps |
| Pixel Dimensions | 6.5 μm x 6.5 μm |
| USB Connectors | 1 |
| Mechanical Interface | C-mount |
| Binning Options | 2 x 2 |
| Operating System | LAS X |
| Power Consumption | 60 W |
| Operating Tempreature | 5 - 40 C |
| Dark Current | 1.5 e- |
| Maximum Full Well Capacity | 45000 e- |
| Dynamic Range | 72 dB |
