K5 Microscope Camera
$undefined

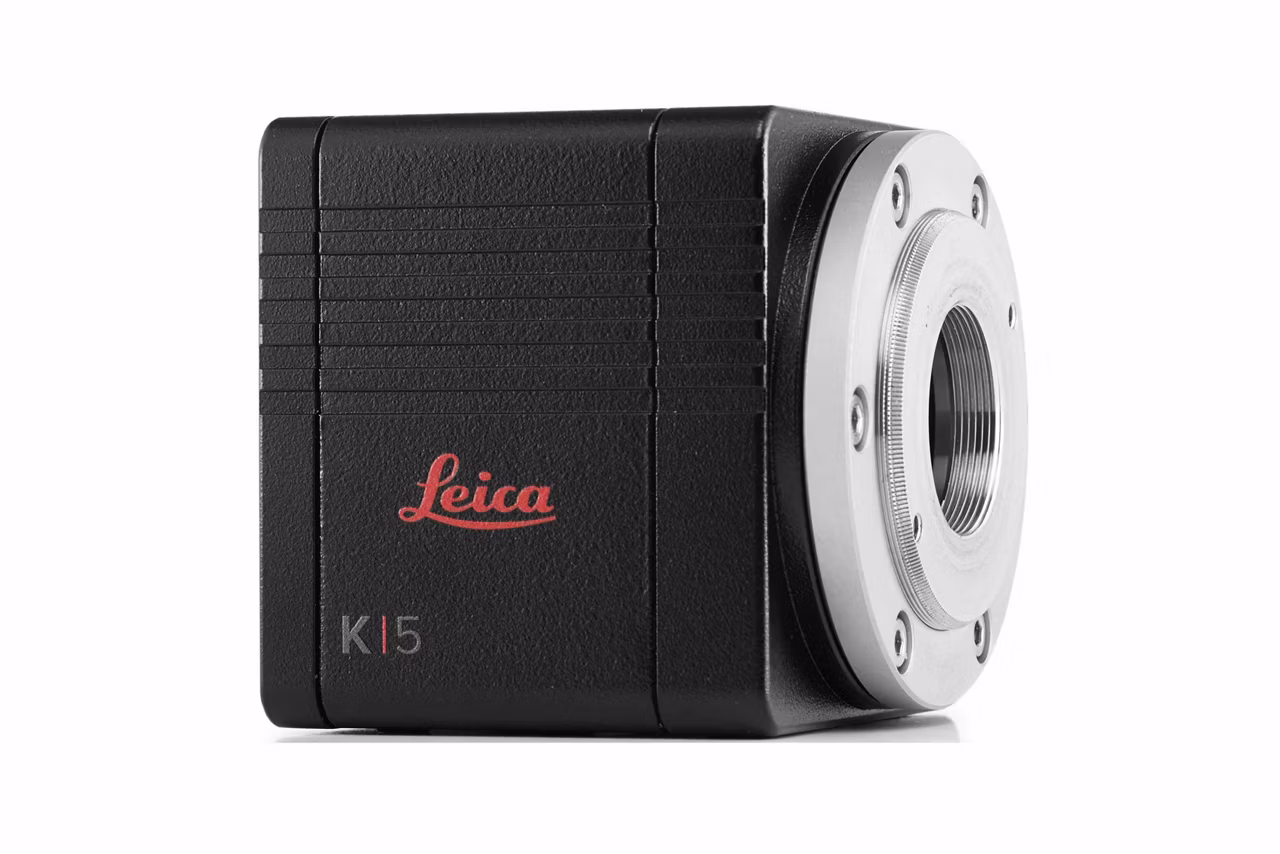

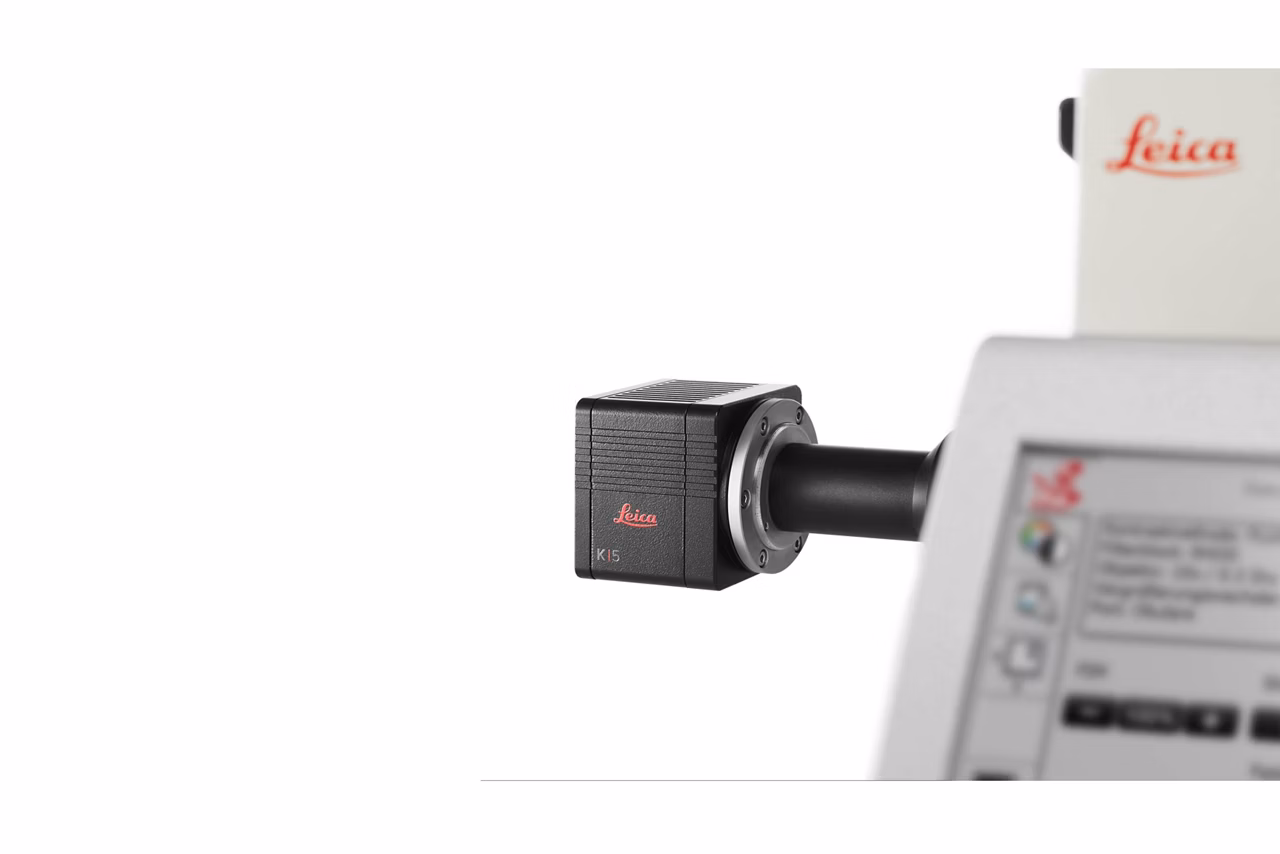

The Leica K5 - small but effective: Despite small-size dimensions of roughly 65 x 65 x 65 mm³, the new Leica k5 passive cooled sCMOS camera system provides high quantum efficiency with low readout noise making it suitable for countless applications. Trigger cable included.
Main Features:
- Resolution: 2048 x 2048 pixels
- Pixel size: 6.5µm x 6.5µm
- Superior quantum efficiency up to 80%
- 21 400 : 1 dynamic range
| Sensor Type | CMOS |
| Snesor Size | 18.8mm |
| Sensor Cooling | Passive |
| Shutter Mode | Rolling |
| Trigger Type | Tigger Cable |
| Maximum Frames Per Second | 40 fps |
| Pixel Dimensions | 6.5 μm x 6.5 μm |
| USB Connectors | 1 |
| Mechanical Interface | C-mount |
| Power Consumption | 4.5 W |
| Operating Tempreature | 10 - 40 C |
| Dark Current | 2.1 e- |
| Maximum Full Well Capacity | 45000 e- |
| Dynamic Range | 72 dB |
