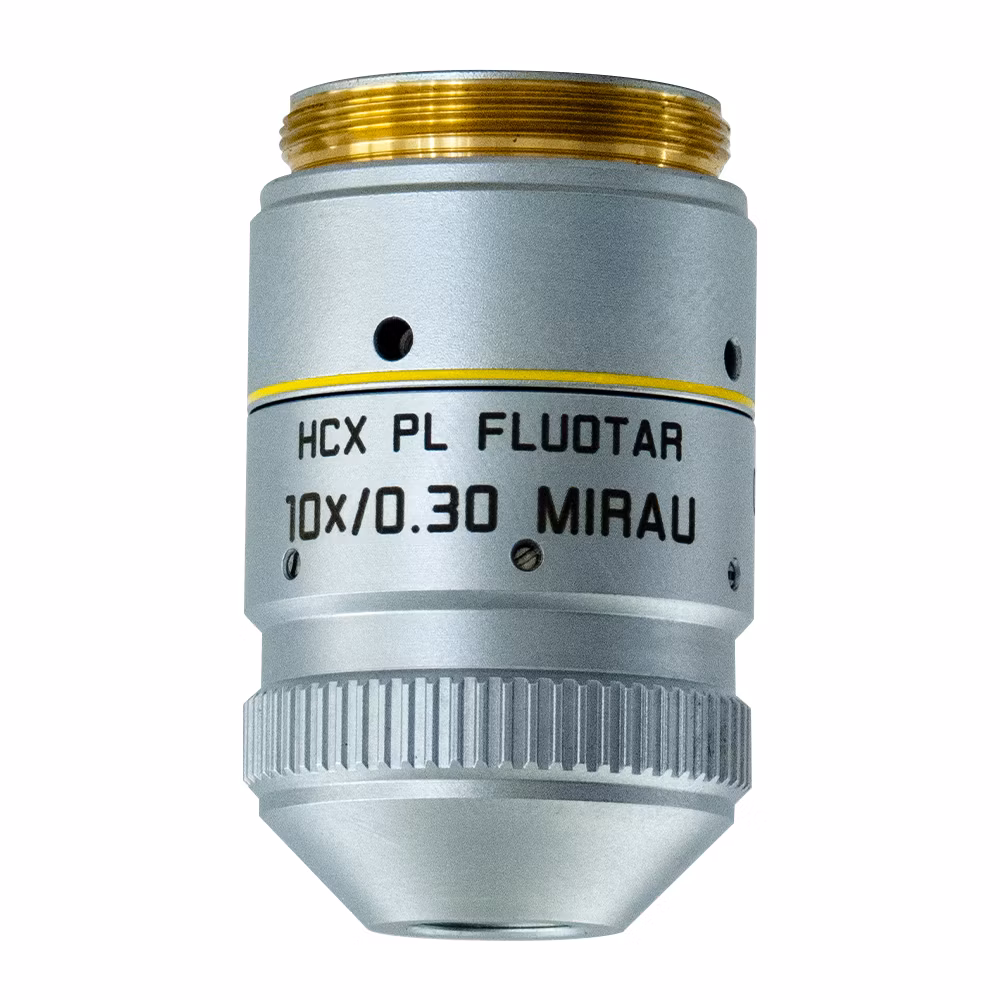

Microscope Objective HC PL FLUOTAR 10x/0.30 3,57 Mirau
Obj. HC PL FLUOTAR 10x/0.30 3,57 Mirau
Product No. 11532670
Objective HC PL FLUOTAR 10x/0.30 3,57 Mirau has a magnification of 10X and a numerical aperture of 0.30. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 4.27mm and a FN of 22.
| Light | Transmitted Light (TL), Incident Light (IL) |
| Contrasting Methods | Brightfield |
| Numerical Aperture | 0.3 |
| Objective Type | PL FLUOTAR |
| Immersion | DRY |
| Coverglass | Without Coverglass |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 4.27 |
| Field Number (FN) | 22 |
| Magnification | 10 |
| Iris Diaphragm | NO |
| Spring Loaded | NO |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | NO |
| Numeric Aperture Filter | 0.12 - 0.32 |
| Magnification Filter | 10x |
| Field Number Filter | 20 - 24 |
| Working Distance Filter | 1.1 - 5 |
