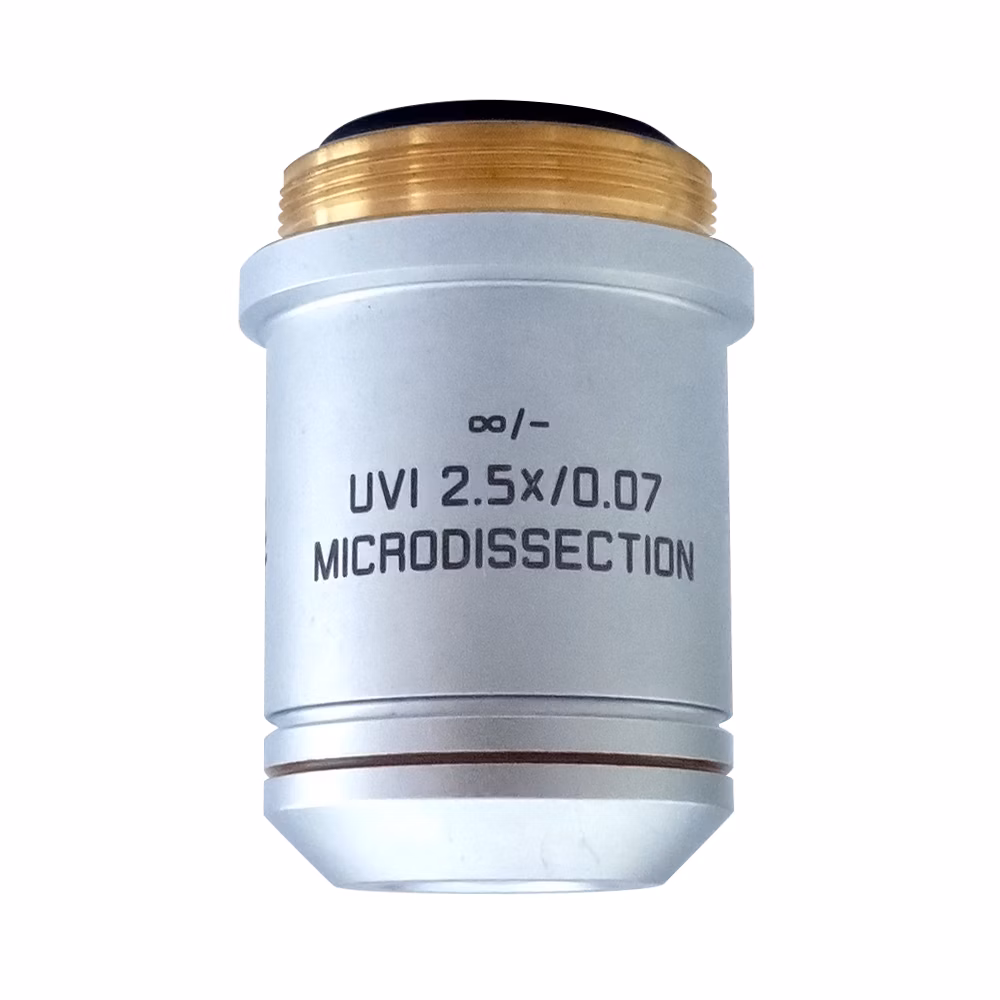

Microscope Objective UVI 2,5x/0,07 MICRODISSECTION
$undefined
Obj. UVI 2.5x/0.07 Microdissection
Product No. 11518148
Objective UVI 2,5x/0,07 MICRODISSECTION has a magnification of 2.5X and a numerical aperture of 0.07. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 11.7mm and a FN of 22.
| Light | Transmitted Light (TL) |
| Contrasting Methods | Fluorescence, Brightfield, Transmitted Light Darkfield, Qualitative Polarization |
| Technique/Application | Laser Microdissection |
| Transmission | UV (340nm), UV (365nm) |
| Numerical Aperture | 0.07 |
| Objective Type | HI PLAN |
| Immersion | DRY |
| Coverglass | With and without Coverglass |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 11.7 |
| Field Number (FN) | 22 |
| Magnification | 2.5 |
| Iris Diaphragm | NO |
| Spring Loaded | NO |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | NO |
| Numeric Aperture Filter | ≤ 0.1 |
| Magnification Filter | 1.25x - 4x |
| Field Number Filter | 20 - 24 |
| Working Distance Filter | > 5 |
