Microscope Objective UVI 10x/0,25 MICRODISSECTION
$undefined

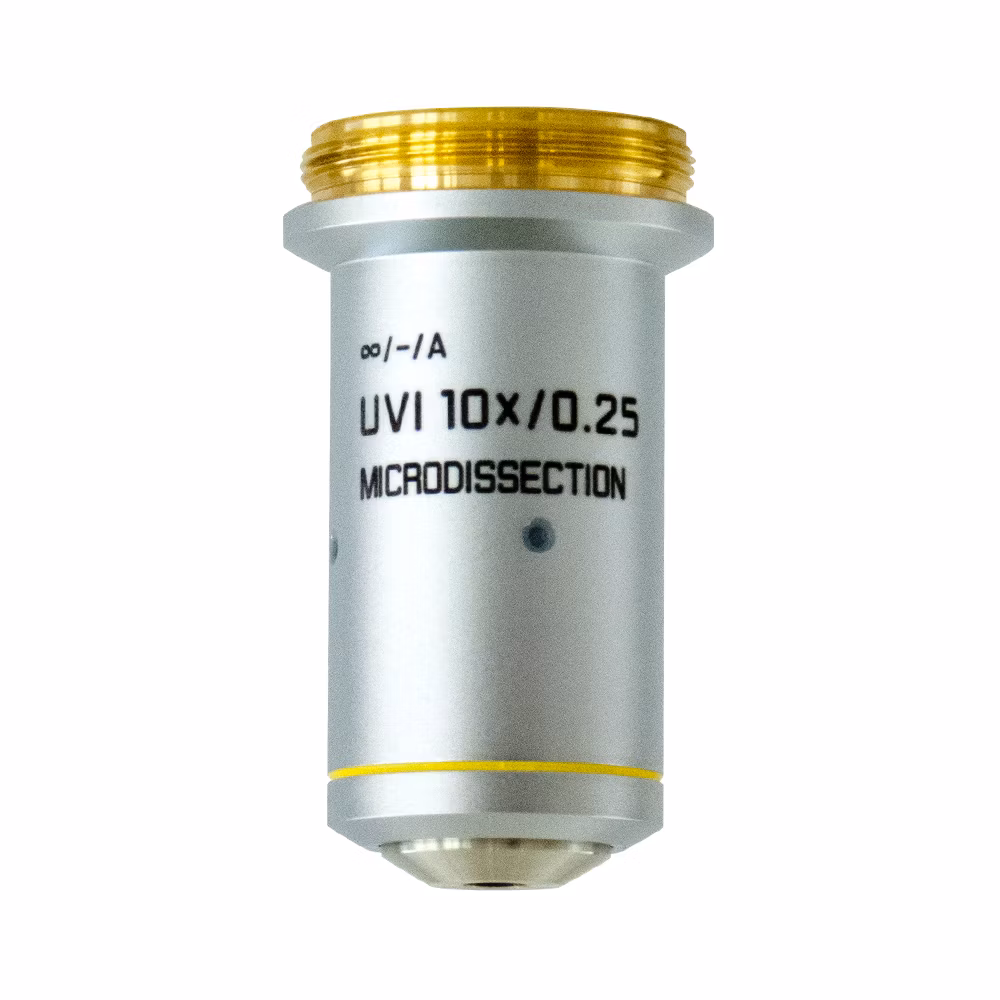

Obj. UVI 10x/0.25 Microdissection
Product No. 11518147
Objective UVI 10x/0,25 MICRODISSECTION has a magnification of 10X and a numerical aperture of 0.25. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 2.9mm and a FN of 22.
| Light | Transmitted Light (TL) |
| Contrasting Methods | Fluorescence, Brightfield, Transmitted Light Darkfield, Differential Interference Contrast |
| Technique/Application | Laser Microdissection |
| Transmission | UV (340nm), UV (365nm) |
| Numerical Aperture | 0.25 |
| Objective Type | HI PLAN |
| Immersion | DRY |
| Coverglass | With and without Coverglass |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 2.9 |
| Field Number (FN) | 22 |
| Magnification | 10 |
| Iris Diaphragm | NO |
| Spring Loaded | NO |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | A |
| Numeric Aperture Filter | 0.12 - 0.32 |
| Magnification Filter | 10x |
| Field Number Filter | 20 - 24 |
| Working Distance Filter | 1.1 - 5 |
