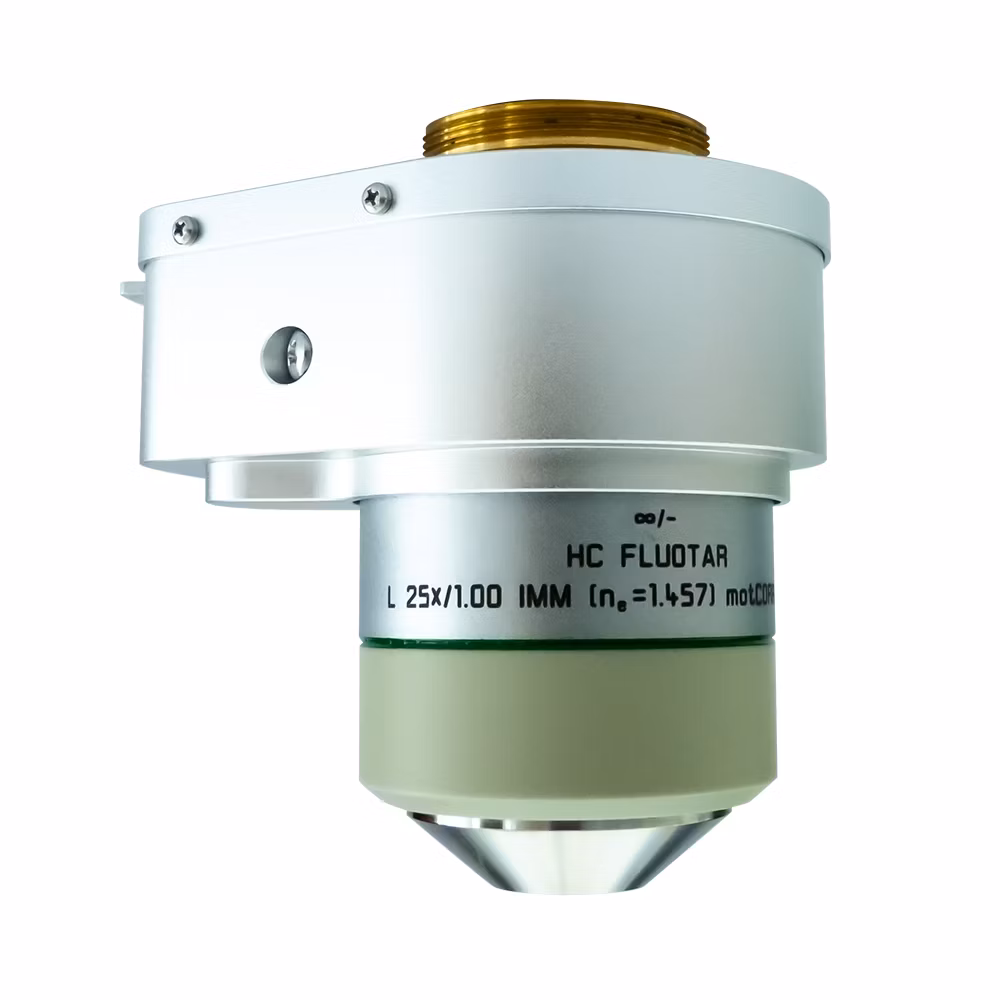

Microscope Objective HC FLUOTAR L 25x/1,0 IMM (ne=1,457) motCORR VISIR
$undefined
HC FLUOTAR L 25x/1.00 IMM motCORR VISIR
Product No. 11507703
Objective HC FLUOTAR L 25x/1,0 IMM (ne=1,457) motCORR VISIR has a magnification of 25X and a numerical aperture of 1. For use in immersive immersion material environment and attached with an objective thread of M32 having a free working distance of 6mm and a FN of 20.
| Light | Transmitted Light (TL) |
| Contrasting Methods | Brightfield, Fluorescence |
| Technique/Application | Confocal Microscopy, MP (Multi Photon) |
| Numerical Aperture | 1 |
| Objective Type | HC FLUOTAR L VISIR |
| Immersion | IMM |
| Coverglass | With and without Coverglass |
| Objective Thread | M32 |
| Free Working Distance (WD in mm) | 6 |
| Field Number (FN) | 20 |
| Magnification | 25 |
| Iris Diaphragm | NO |
| Spring Loaded | NO |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Correction Ring (CORR) | motCORR |
| Exit Pupil Position/DIC prism | NO |
| Numeric Aperture Filter | ≥ 1 |
| Magnification Filter | 25x |
| Field Number Filter | 20 - 24 |
| Working Distance Filter | Long WD |
