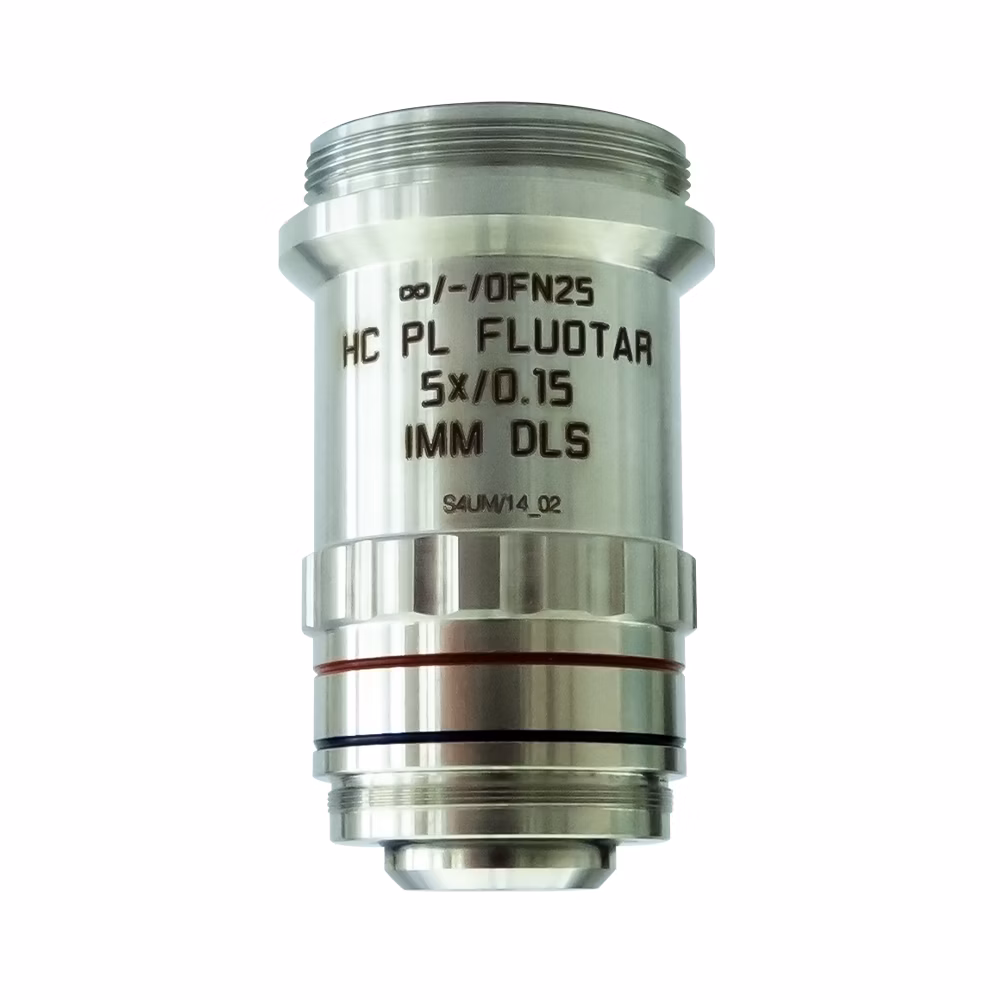

Microscope Objective HC PL FLUOTAR 5x/0,15 IMM DLS
PL Fluotars are powerful universal objectives with outstanding chromatic correction for at least three wavelengths which makes them suitable for fluorescence imaging.
Field planarity (PL) is computed for a 25 mm field of view. They are made of special glass to enable maximum transmission. This makes them powerful photon collectors in fluorescence microscopy.
Leica’s Fluotar portfolio features various application-optimized correction collars (CORR) to compensate for external influences such as temperature, coverslip thickness and immersion media.
Product No. 11506534

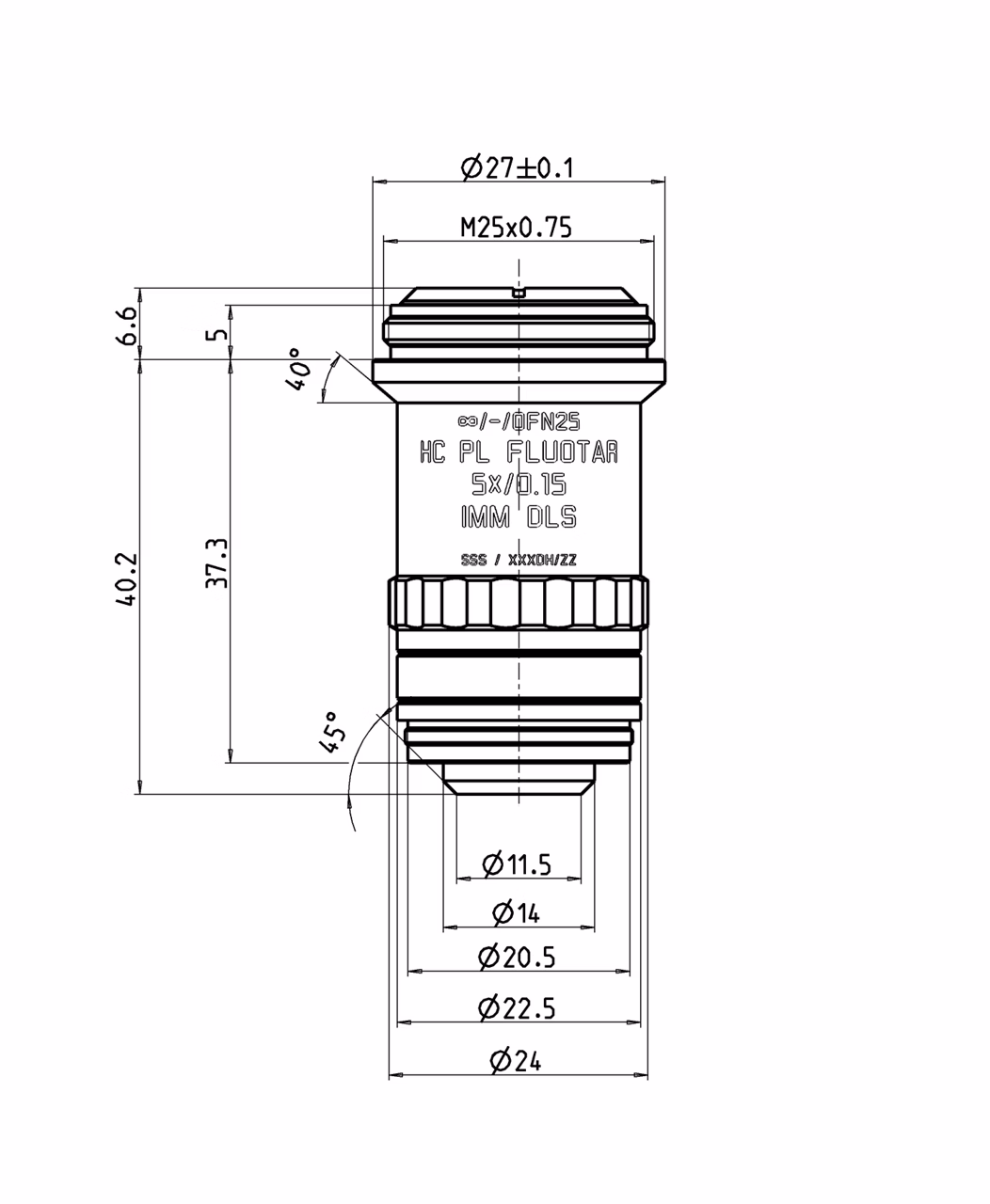

Objective HC PL FLUOTAR 5x/0,15 IMM DLS has a magnification of 5X and a numerical aperture of 0.15. For use in immersive incl BABB immersion material environment and attached with an objective thread of M25 having a free working distance of 4.80mm and a FN of 25.
- Field Flatness (OFN) up to 25 mm
- Absolute Value(s) of Focus for red wavelength and blue to green wavelength (3 colors) are ≤ 2.5x depth of field
- Application for applications with highest specifications in the visual range and beyond
| Contrasting Methods | Brightfield, Fluorescence, Qualitative Polarization |
| Immersion | IMM incl BABB |
| Coverglass | NO |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 4.80 |
| Field Number (FN) | 25 |
| Iris Diaphragm | NO |
| Spring Loaded | NO |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Transmission | UV (340nm), UV (365nm) |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | NO |
