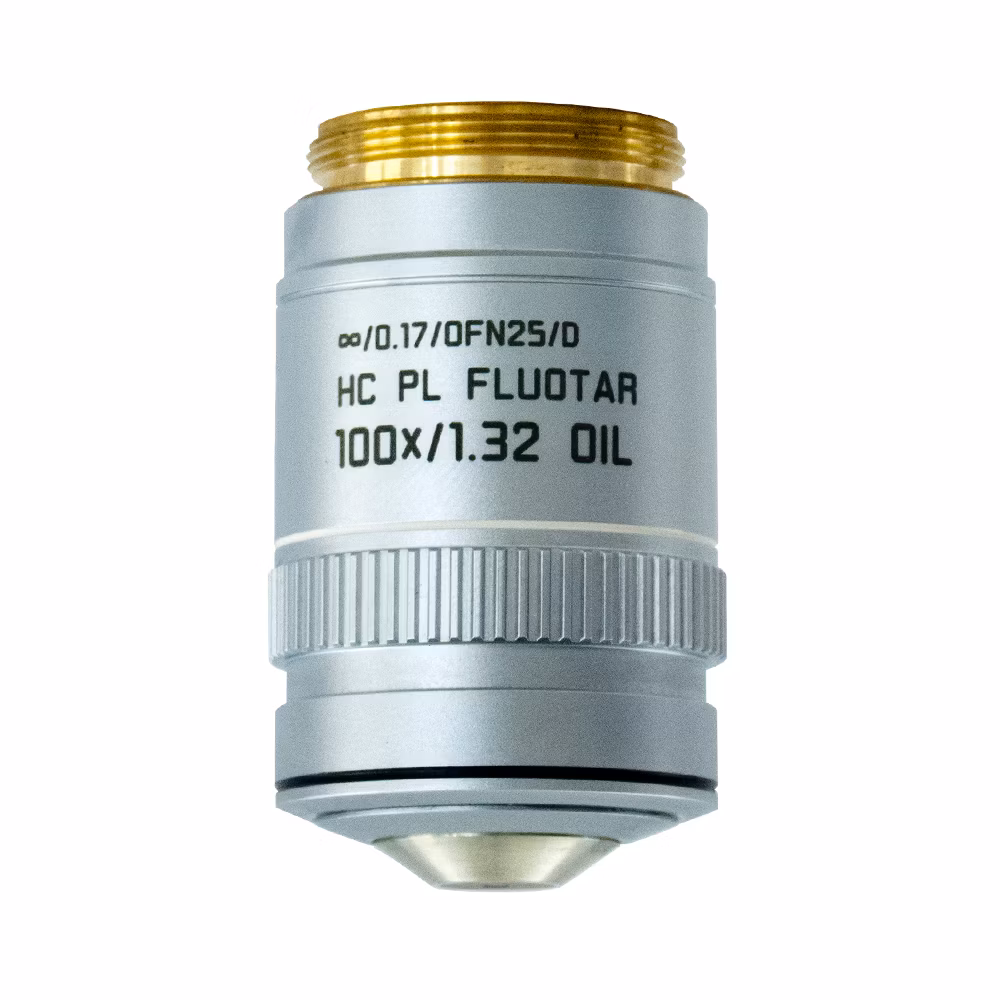

Microscope Objective HC PL FLUOTAR 100x/1,32 OIL
$undefined
Product No. 11506525
Objective HC PL FLUOTAR 100x/1,32 OIL has a magnification of 100X and a numerical aperture of 1.32. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.18mm and a FN of 25.
Product No. 11506525
Objective HC PL FLUOTAR 100x/1,32 OIL has a magnification of 100X and a numerical aperture of 1.32. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.18mm and a FN of 25.
| Light | Transmitted Light (TL) |
| Contrasting Methods | Brightfield, Differential Interference Contrast, Fluorescence, Qualitative Polarization |
| Transmission | UV (365nm) |
| Numerical Aperture | 1.32 |
| Objective Type | PL FLUOTAR |
| Immersion | OIL |
| Coverglass | With Coverglass |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 0.18 |
| Field Number (FN) | 25 |
| Magnification | 100 |
| Iris Diaphragm | NO |
| Spring Loaded | YES |
| Suitable for AFC (Adaptive Focus Control) | YES |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | D |
| Numeric Aperture Filter | ≥ 1 |
| Magnification Filter | 86x - 100x |
| Field Number Filter | 25 |
| Working Distance Filter | < 0.3 |
