Microscope Objective HC PL IRAPO 40x/1,10 W motCORR
$undefined
Whereas PL APO objectives are corrected in the visible wavelength range, with the PL IRAPO objectives a new set of specialized objectives is now available for improved multiphoton imaging (MP). The IR Apochromats are color corrected from at least 700 nm up to 1300 nm and highly transmissive in the visible and infrared wavelength ranges with > 85 % transmission from 470 – 1200 nm. Thus they are ideal for non-linear imaging like multicolor multiphoton imaging including excitation with OPO (optical parametric oscillator), and CARS (Coherent Anti-Stokes Raman Scattering).
Product No. 11506433

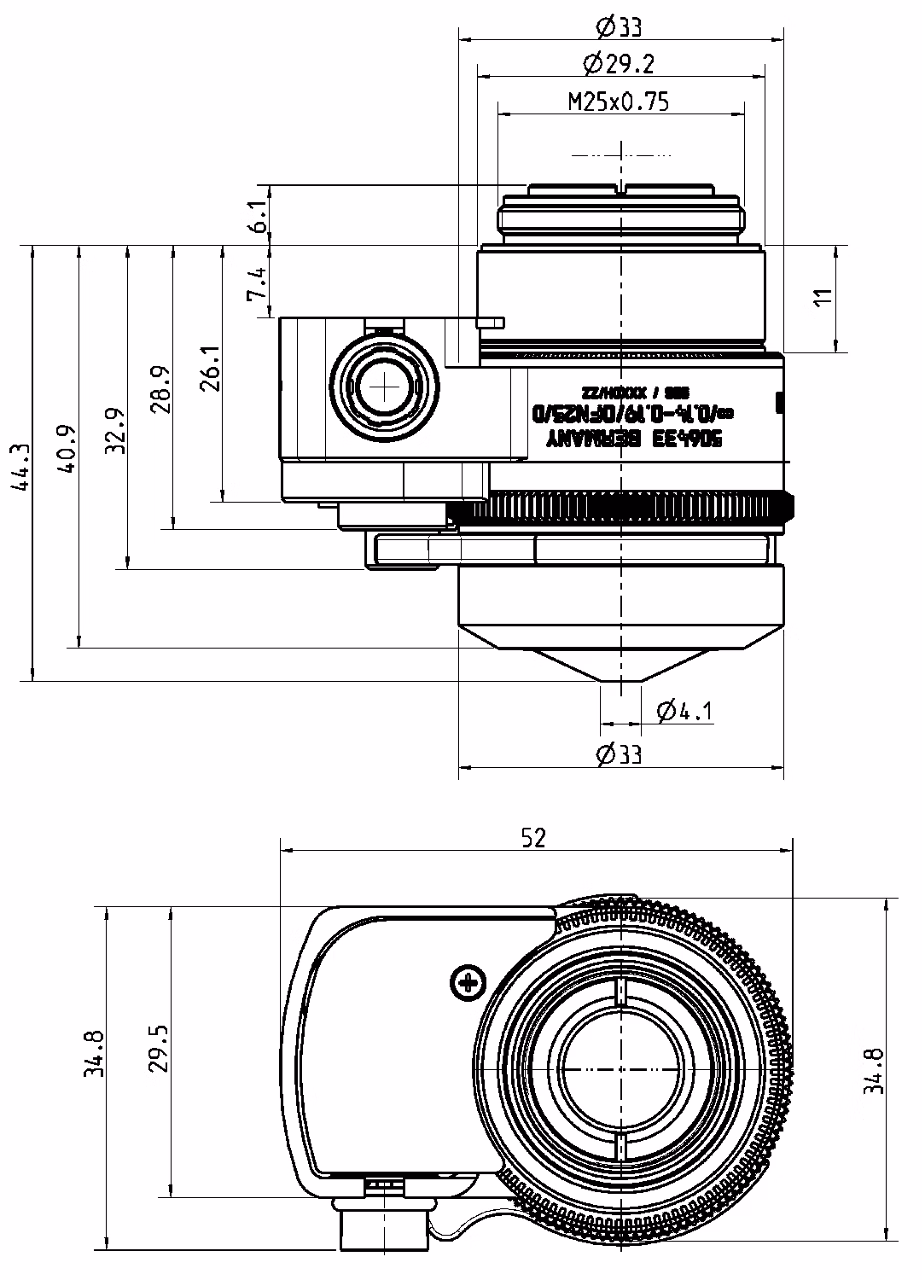

Objective HC PL IRAPO 40x/1,10 W motCORR has a magnification of 40X and a numerical aperture of 1.1. For use in water immersion material environment and attached with an objective thread of M25 having a free working distance of 0.63mm and a FN of 25.
- Field Flatness (OFN) up to 25 mm
- Absolute Value(s) of Focus for red wavelength and blue to green wavelength (3 colors) are ≤ 1x depth of field
- Application for applications with highest specifications in the visual range and beyond
| Contrasting Methods | Brightfield, Fluorescence |
| Immersion | WATER |
| Coverglass | 0.14-0.19 |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 0.63 |
| Field Number (FN) | 25 |
| Iris Diaphragm | NO |
| Spring Loaded | YES |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Transmission | IR (up to 1300nm), |
| Correction Ring (CORR) | motCORR |
| Exit Pupil Position/DIC prism | NO |
