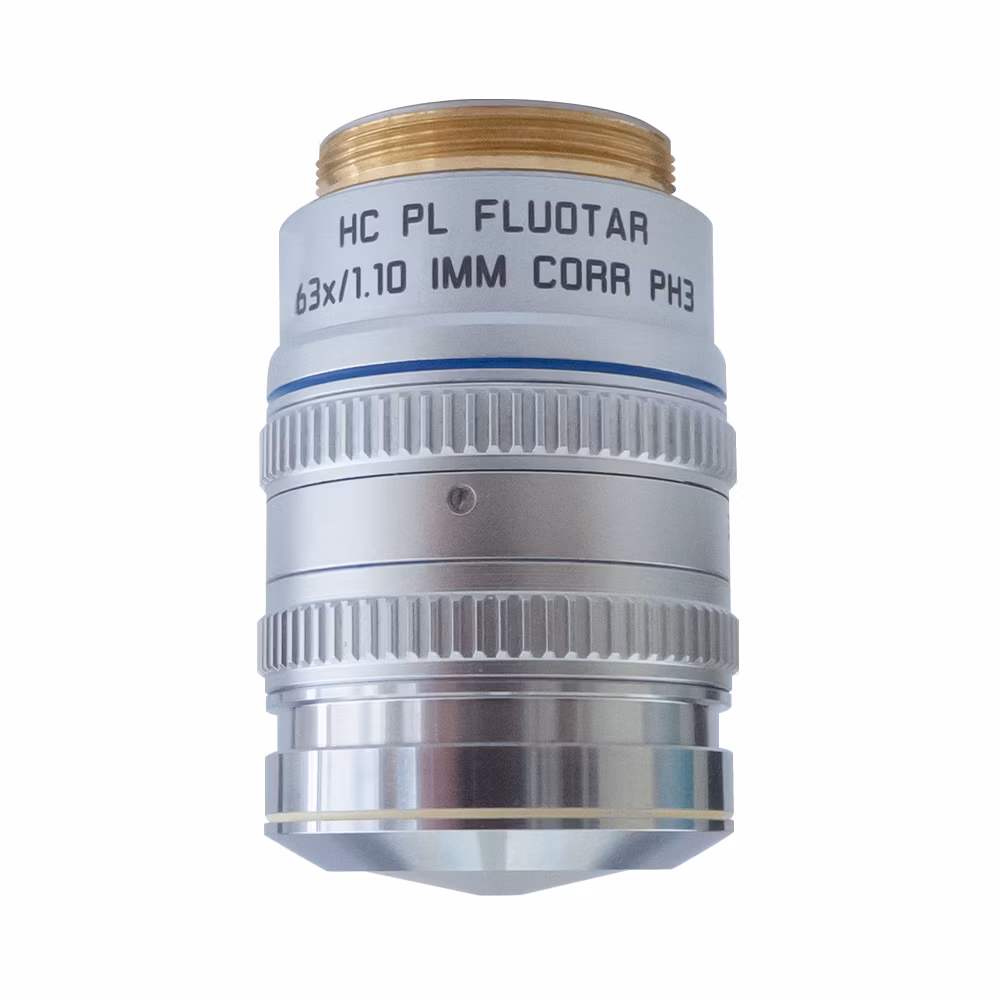

Microscope Objective HC PL FLUOTAR 63x/1.10 IMM CORR PH3
PL Fluotars are powerful universal objectives with outstanding chromatic correction for at least three wavelengths which makes them suitable for fluorescence imaging.
Field planarity (PL) is computed for a 25 mm field of view. They are made of special glass to enable maximum transmission. This makes them powerful photon collectors in fluorescence microscopy.
Leica’s Fluotar portfolio features various application-optimized correction collars (CORR) to compensate for external influences such as temperature, coverslip thickness and immersion media.
Product No. 11506418

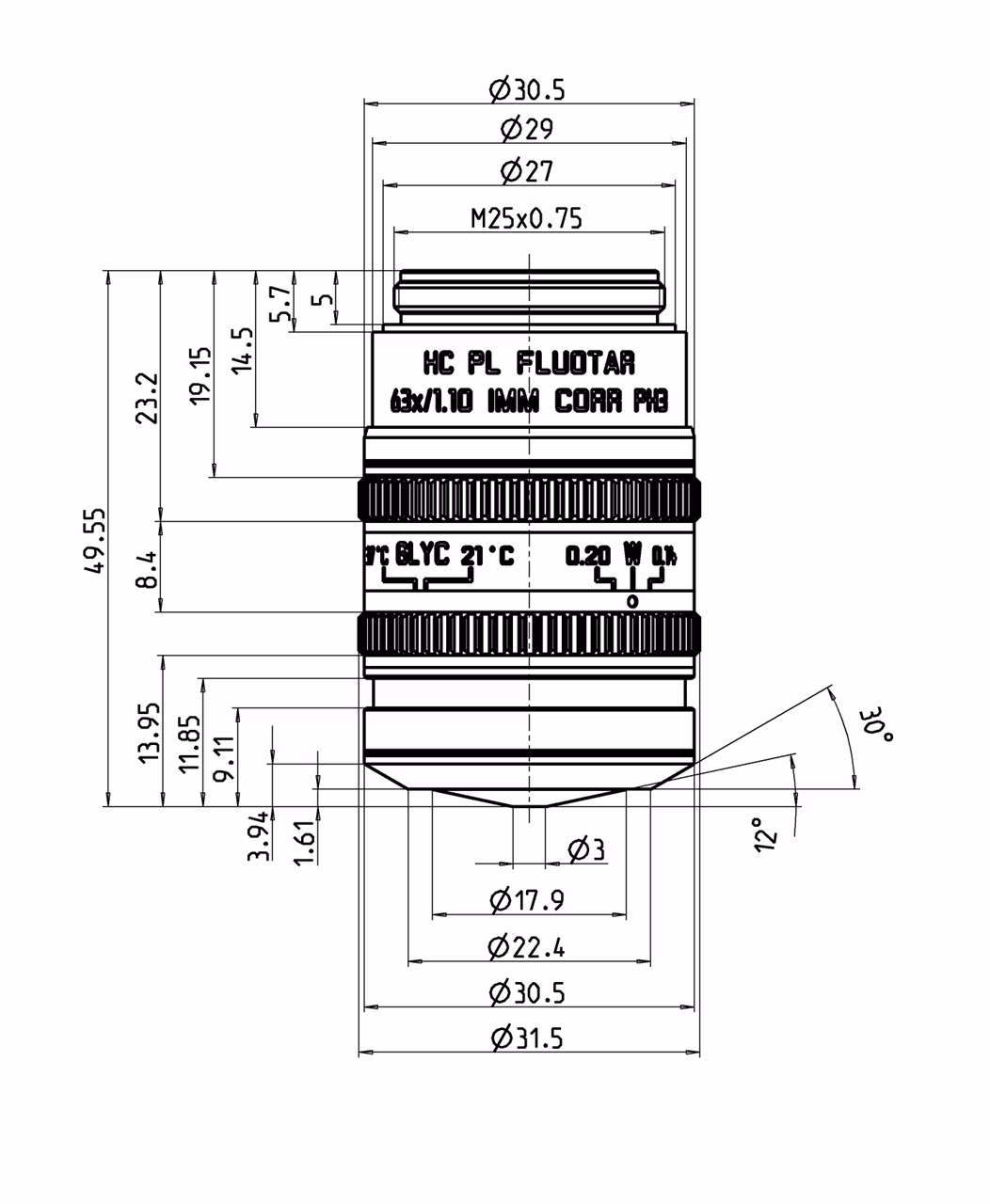

Objective HC PL FLUOTAR 63x/1.10 IMM CORR PH3 has a magnification of 63X and a numerical aperture of 1.1. For use in immersive immersion material environment and attached with an objective thread of M25 having a free working distance of 0.35mm and a FN of 25.
- Field Flatness (OFN) up to 25 mm
- Absolute Value(s) of Focus for red wavelength and blue to green wavelength (3 colors) are ≤ 2.5x depth of field
- Application for applications with highest specifications in the visual range and beyond
| Contrasting Methods | Brightfield, Differential Interference Contrast, Fluorescence, Phase Contrast, Qualitative Polarization |
| Immersion | IMM |
| Coverglass | 0.14-0.19 |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 0.35 |
| Field Number (FN) | 25 |
| Iris Diaphragm | NO |
| Spring Loaded | YES |
| Suitable for AFC (Adaptive Focus Control) | YES |
| Transmission | UV (340nm), UV (365nm) |
| Correction Ring (CORR) | CORR |
| Exit Pupil Position/DIC prism | E |
