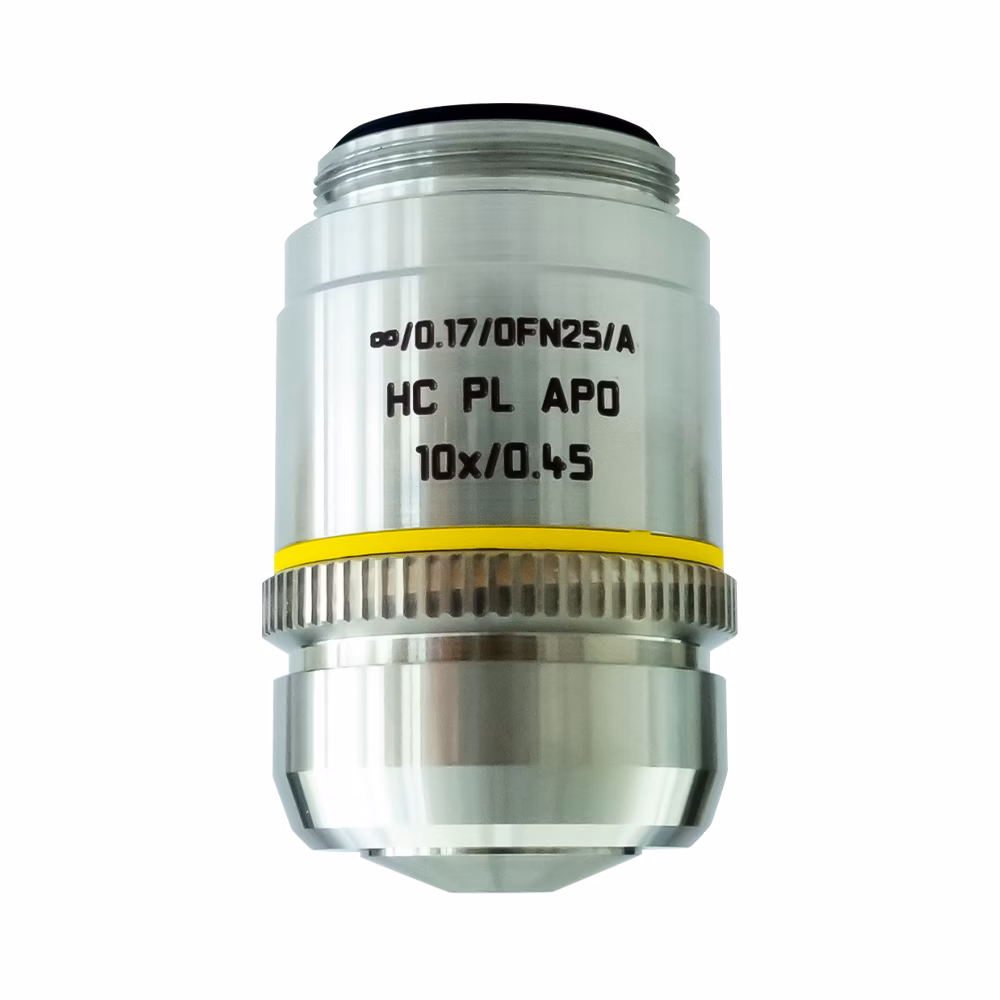

Microscope Objective HC PL APO 10x/0,45
$undefined
PL APO objectives – the class for professionals. They deliver imaging quality that cannot be achieved by conventional objectives. Plan Apochromats provide perfect axial and lateral color matching for applications requiring fast color change and the colocalization of structures. PL APO objectives are characterized by flawless image flatness up to a field number of 25. Top numerical apertures define a resolving power at the limits of what is physically possible.
Product No. 11506410
Objective HC PL APO 10x/0,45 has a magnification of 10X and a numerical aperture of 0.45. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 2.8mm and a FN of 25.
| Light | Transmitted Light (TL) |
| Contrasting Methods | Fluorescence, Brightfield, Transmitted Light Darkfield, Differential Interference Contrast, Integrated Modulation Contrast, Qualitative Polarization, Phase Contrast |
| Transmission | UV (340nm), UV (365nm) |
| Numerical Aperture | 0.45 |
| Objective Type | PLAN APO |
| Immersion | DRY |
| Coverglass | With Coverglass |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 2.8 |
| Field Number (FN) | 25 |
| Magnification | 10 |
| Iris Diaphragm | NO |
| Spring Loaded | NO |
| Suitable for AFC (Adaptive Focus Control) | YES |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | A |
| Numeric Aperture Filter | 0.35 - 0.6 |
| Magnification Filter | 10x |
| Field Number Filter | 25 |
| Working Distance Filter | 1.1 - 5 |
