Microscope Objective L 1,6x/0,05 DLS
Obj. L 1,6x/0,05 DLS
Product No. 11506409

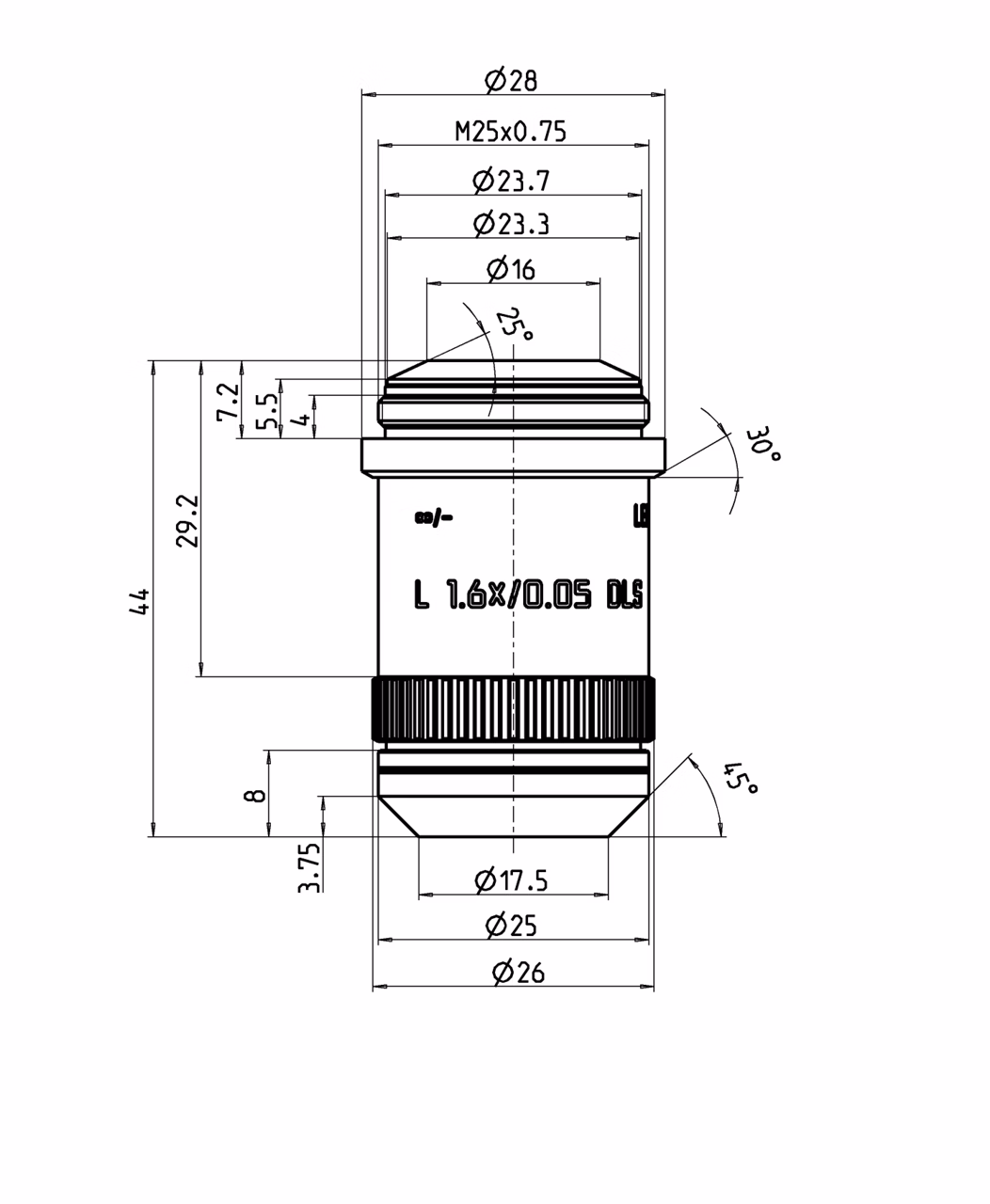

Objective L 1,6x/0,05 DLS has a magnification of 1.6X and a numerical aperture of 0.05. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 8.1mm and a FN of 16.
| Light | Transmitted Light (TL) |
| Contrasting Methods | Fluorescence, Brightfield, Qualitative Polarization |
| Technique/Application | Light Sheet Illumination |
| Numerical Aperture | 0.05 |
| Objective Type | - |
| Immersion | DRY |
| Coverglass | With and without Coverglass |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 8.1 |
| Field Number (FN) | 16 |
| Magnification | 0.6 |
| Iris Diaphragm | NO |
| Spring Loaded | NO |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | NO |
| Numeric Aperture Filter | ≤ 0.1 |
| Magnification Filter | 1.25x - 4x |
| Field Number Filter | < 20 |
| Working Distance Filter | > 5 |
