Microscope Objective N PLAN 10x/0.25 PH1

$undefined

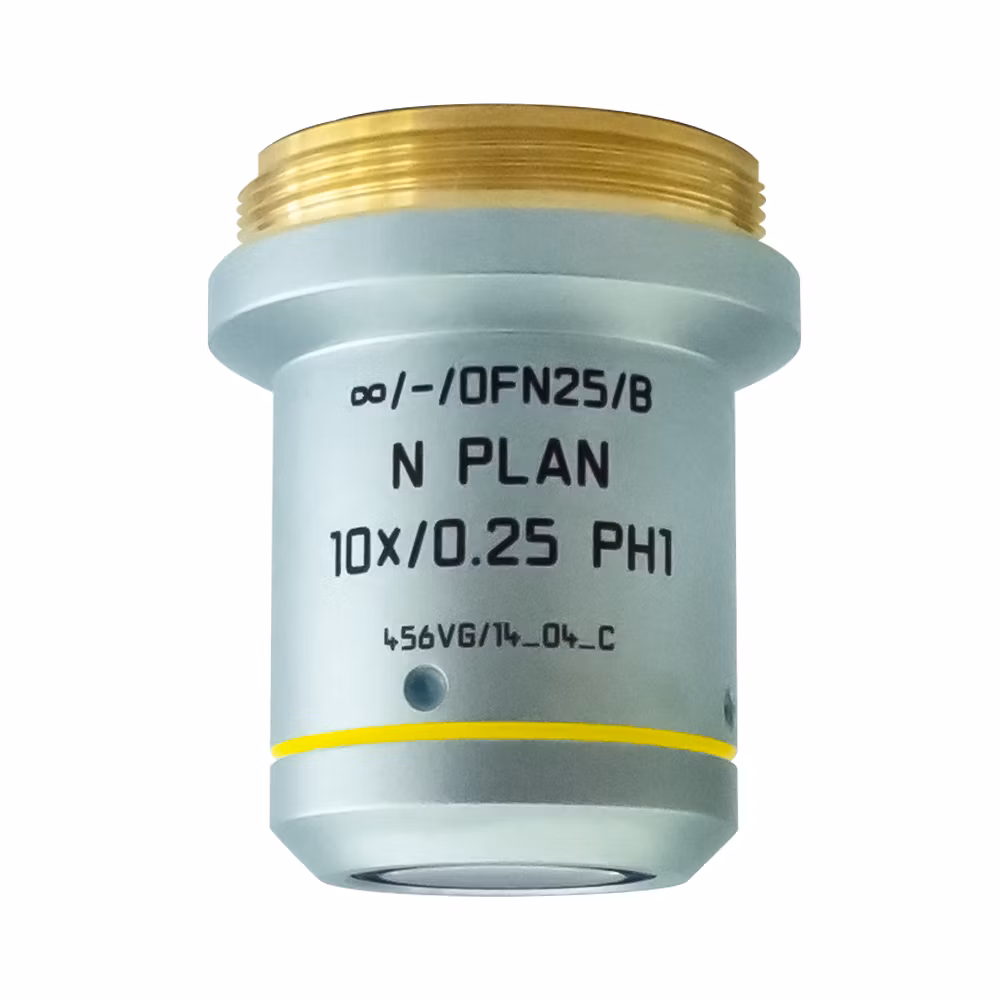

11506406 Picture Kid10480384

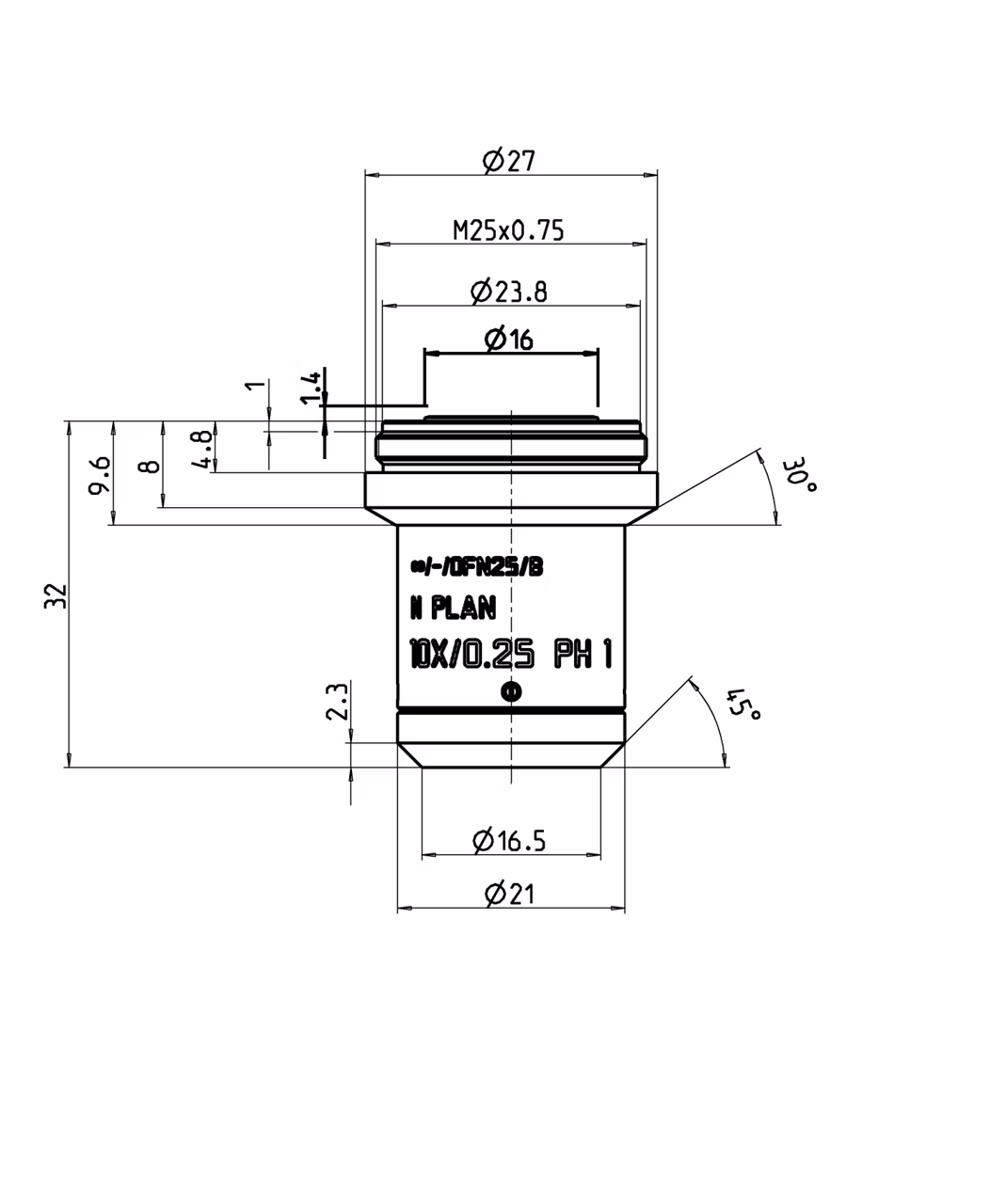

11506406 Dimension Sheet Kid10479969

11506406 Transmission Curve Card Kid21018706

11506406 Transmission Curve Card Large Kid21018708

Objective N PLAN 10x/0.25 PH1 has a magnification of 10X and a numerical aperture of 0.25. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 17.7mm and a FN of 25.

Objective N PLAN 10x/0.25 PH1 has a magnification of 10X and a numerical aperture of 0.25. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 17.7mm and a FN of 25.

Technical Specifications
Light Transmitted Light (TL)
Contrasting Methods Brightfield, Differential Interference Contrast, Fluorescence, Integrated Modulation Contrast, Phase Contrast, Qualitative Polarization, Transmitted Light Darkfield
Transmission UV (365nm)
Numerical Aperture 0.25
Objective Type N PLAN
Immersion DRY
Coverglass With and without Coverglass
Objective Thread M25
Free Working Distance (WD in mm) 17.7
Field Number (FN) 25
Magnification 10
Iris Diaphragm NO
Spring Loaded NO
Suitable for AFC (Adaptive Focus Control) NO
Correction Ring (CORR) NO
Exit Pupil Position/DIC prism B
