Microscope Objective HI PLAN CY 10x/0.25 PH1

$undefined

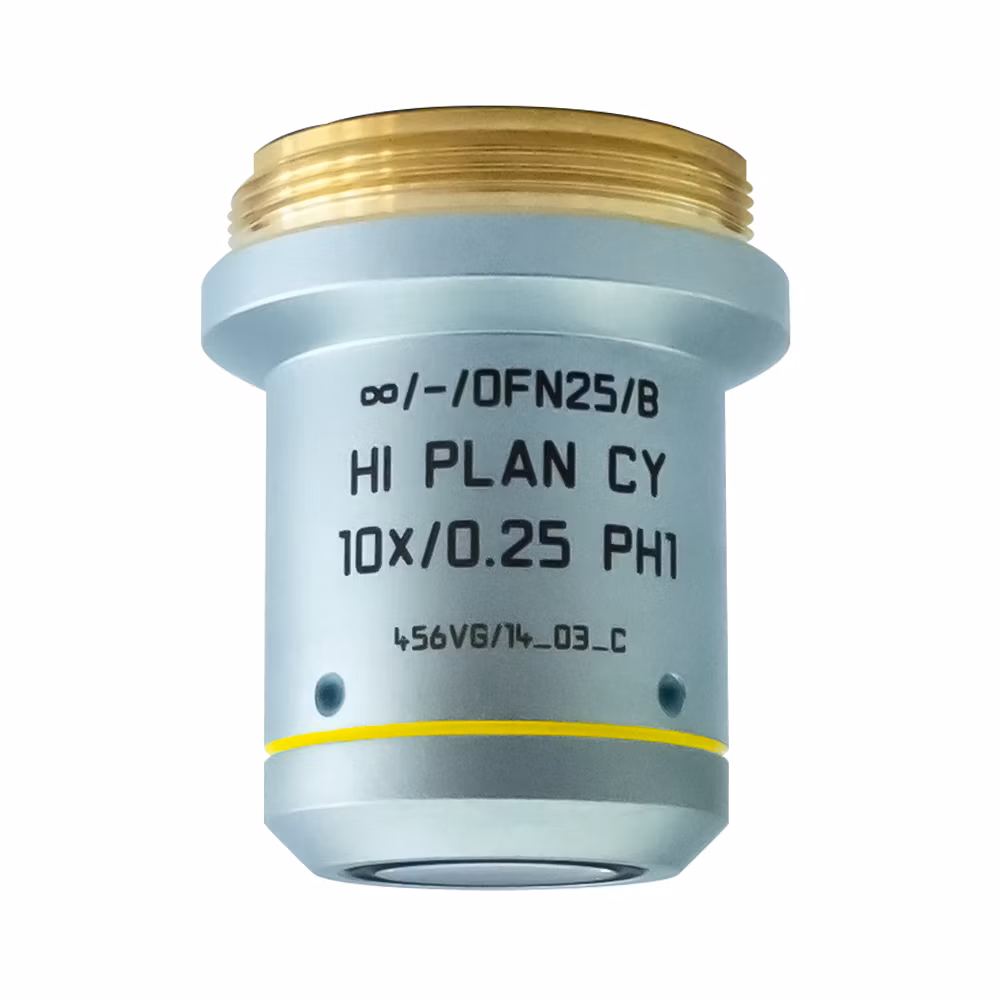

11506402 Picture Kid10480379

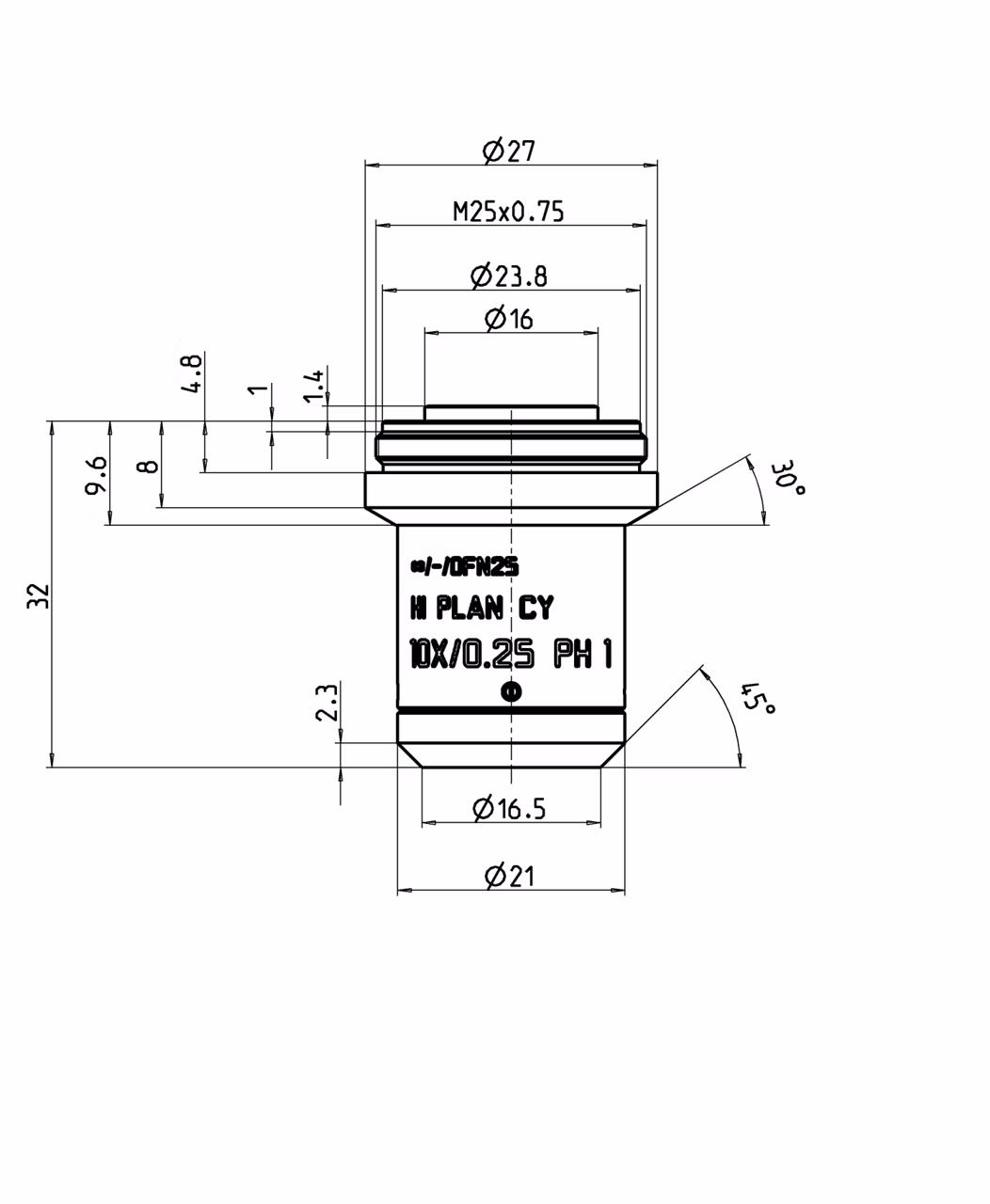

11506402 Dimension Sheet Kid10479964

Product No. 11506402

Objective HI PLAN CY 10x/0.25 PH1 has a magnification of 10X and a numerical aperture of 0.25. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 17.7mm and a FN of 25.

Product No. 11506402

Objective HI PLAN CY 10x/0.25 PH1 has a magnification of 10X and a numerical aperture of 0.25. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 17.7mm and a FN of 25.

Technical Specifications
Light Transmitted Light (TL)
Contrasting Methods Fluorescence, Brightfield, Transmitted Light Darkfield, Qualitative Polarization, Phase Contrast
Numerical Aperture 0.25
Objective Type HI PLAN
Immersion DRY
Coverglass With and without Coverglass
Objective Thread M25
Free Working Distance (WD in mm) 17.70
Field Number (FN) 25
Magnification 10
Iris Diaphragm NO
Spring Loaded NO
Suitable for AFC (Adaptive Focus Control) NO
Correction Ring (CORR) NO
Exit Pupil Position/DIC prism NO
Search Facet
Numeric Aperture 0.12 - 0.32
Magnification 10x
Field Number 25
Working Distance > 5
