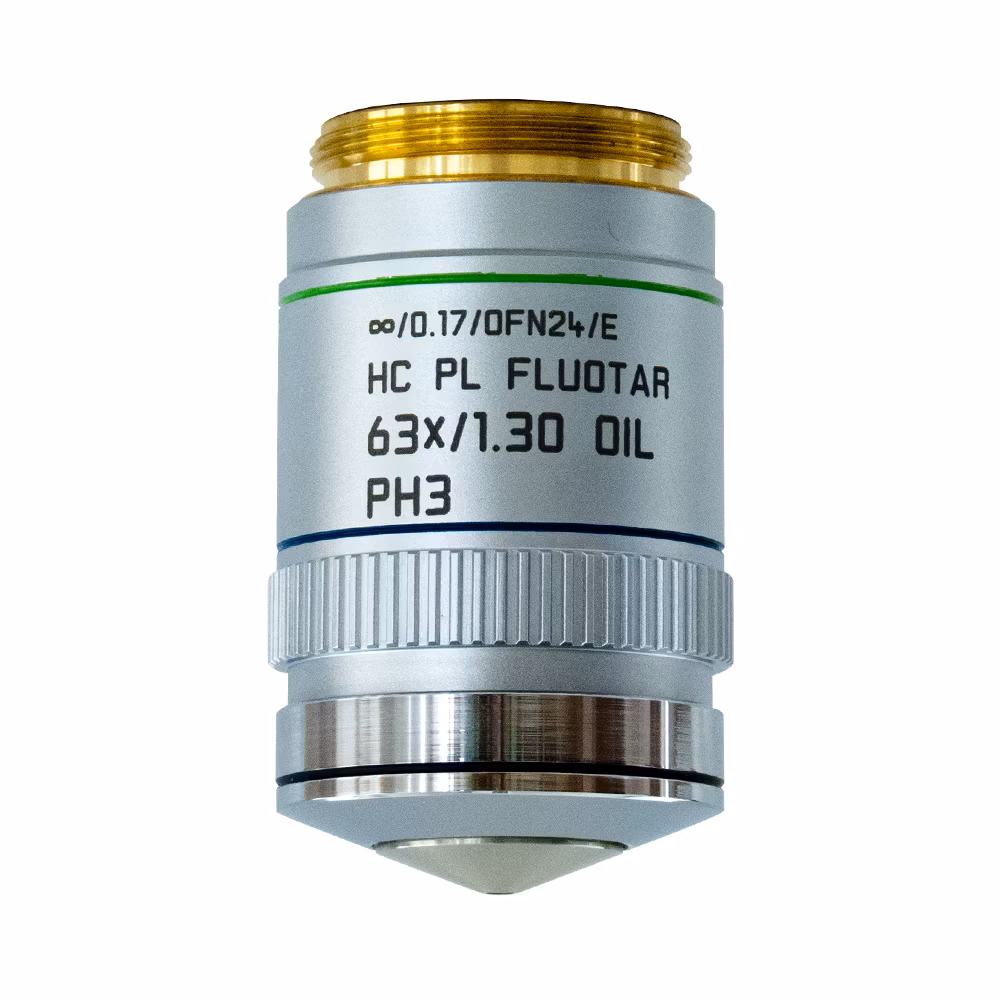

Microscope Objective HC PL FLUOTAR 63x/1,30 OIL PH3
$undefined
PL Fluotars are powerful universal objectives with outstanding chromatic correction for at least three wavelengths which makes them suitable for fluorescence imaging.
Field planarity (PL) is computed for a 25 mm field of view. They are made of special glass to enable maximum transmission. This makes them powerful photon collectors in fluorescence microscopy.
Leica’s Fluotar portfolio features various application-optimized correction collars (CORR) to compensate for external influences such as temperature, coverslip thickness and immersion media.
Product No. 11506385
Objective HC PL FLUOTAR 63x/1,30 OIL PH3 has a magnification of 63X and a numerical aperture of 1.3. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.16mm and a FN of 24.
| Light | Transmitted Light (TL) |
| Contrasting Methods | Brightfield, Differential Interference Contrast, Fluorescence, Phase Contrast, Qualitative Polarization, Transmitted Light Darkfield |
| Transmission | UV (365nm) |
| Numerical Aperture | 1.3 |
| Objective Type | PL FLUOTAR |
| Immersion | OIL |
| Coverglass | With Coverglass |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 0.16 |
| Field Number (FN) | 24 |
| Magnification | 63 |
| Iris Diaphragm | NO |
| Spring Loaded | YES |
| Suitable for AFC (Adaptive Focus Control) | YES |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | E |
| Numeric Aperture Filter | ≥ 1 |
| Magnification Filter | 63x |
| Field Number Filter | 20 - 24 |
| Working Distance Filter | < 0.3 |
