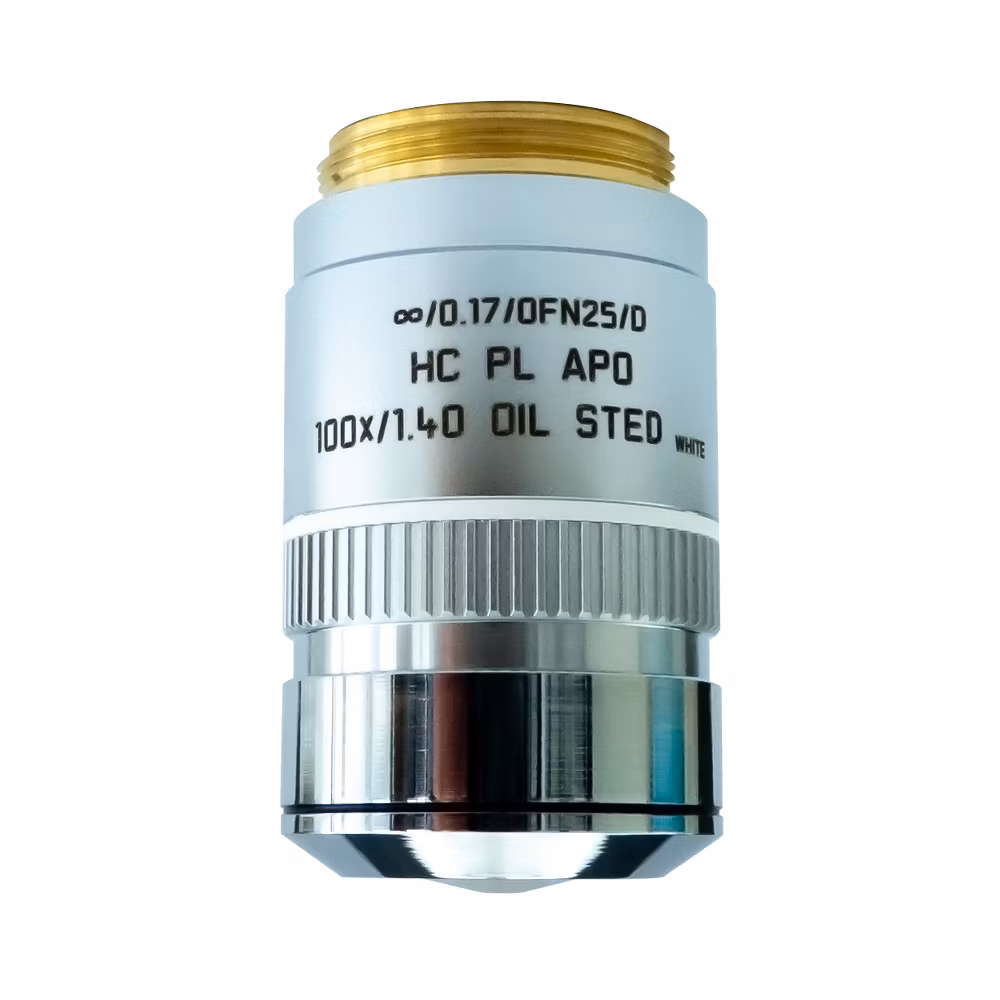

Microscope Objective HC PL APO 100x/1,40 OIL STED WHITE
PL APO objectives – the class for professionals. They deliver imaging quality that cannot be achieved by conventional objectives. Plan Apochromats provide perfect axial and lateral color matching for applications requiring fast color change and the colocalization of structures. PL APO objectives are characterized by flawless image flatness up to a field number of 25. Top numerical apertures define a resolving power at the limits of what is physically possible.
Product No. 11506378
Objective HC PL APO 100x/1,40 OIL STED WHITE has a magnification of 100X and a numerical aperture of 1.4. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.13mm and a FN of 25.
- Field Flatness (OFN) up to 25 mm
- Absolute Value(s) of Focus for red wavelength and blue to green wavelength (3 colors) are ≤ 1x depth of field
- Application for applications with highest specifications in the visual range and beyond
| Contrasting Methods | Brightfield, Differential Interference Contrast, Fluorescence |
| Immersion | OIL |
| Coverglass | 0.17 |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 0.13 |
| Field Number (FN) | 25 |
| Iris Diaphragm | NO |
| Spring Loaded | YES |
| Suitable for AFC (Adaptive Focus Control) | YES |
| Transmission | UV (340nm), UV (365nm) |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | D |
