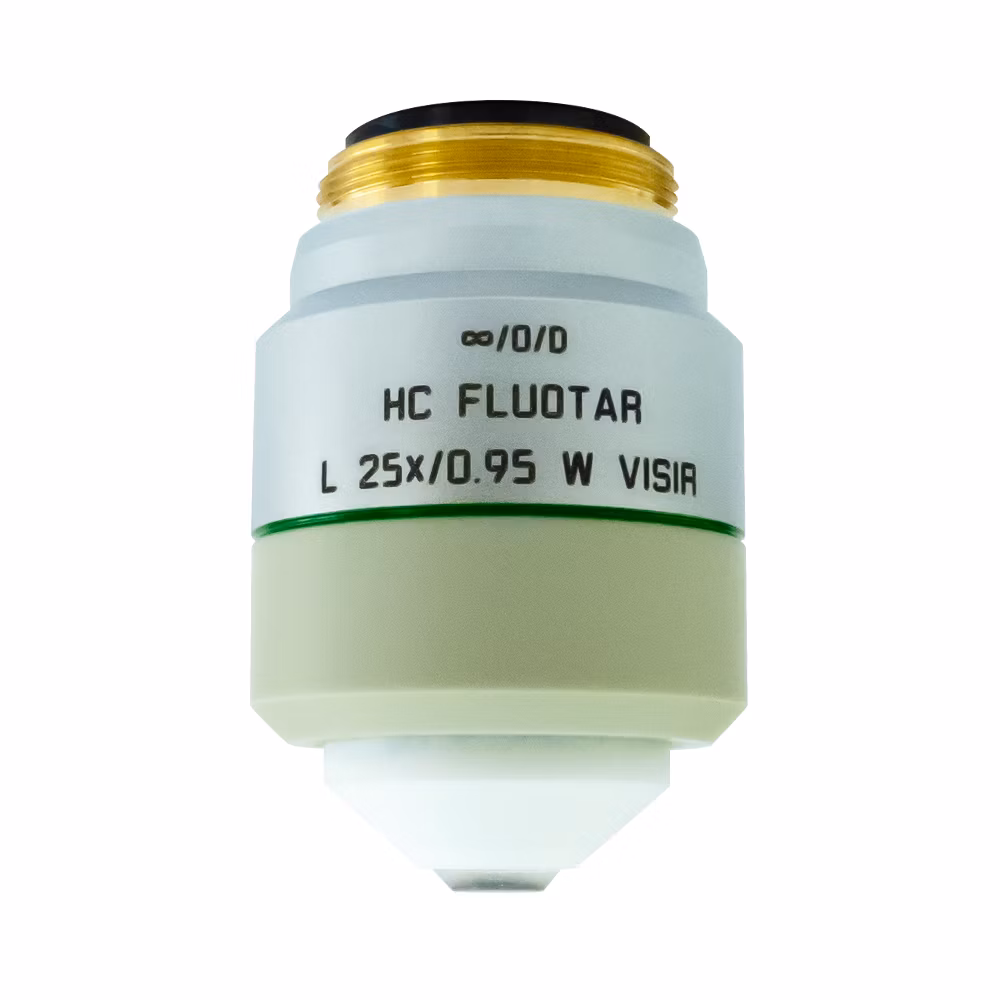

Microscope Objective HC FLUOTAR L 25x/0,95 W VISIR
$undefined
HC FLUOTAR L 25x/0.95 W VISIR w/o coverg
Product No. 11506374
Objective HC FLUOTAR L 25x/0,95 W VISIR has a magnification of 25X and a numerical aperture of 0.95. For use in water immersion material environment and attached with an objective thread of M25 having a free working distance of 2.5mm and a FN of 18.
- Field Flatness (OFN) up to 25 mm
- Absolute Value(s) of Focus for red wavelength and blue to green wavelength (3 colors) are ≤ 2.5x depth of field
- Application for applications with highest specifications in the visual range and beyond
| Contrasting Methods | Brightfield, Differential Interference Contrast, Fluorescence |
| Immersion | WATER |
| Coverglass | NO |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 2.5 |
| Field Number (FN) | 18 |
| Iris Diaphragm | NO |
| Spring Loaded | NO |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Transmission | IR (up to 1300nm), |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | D |
