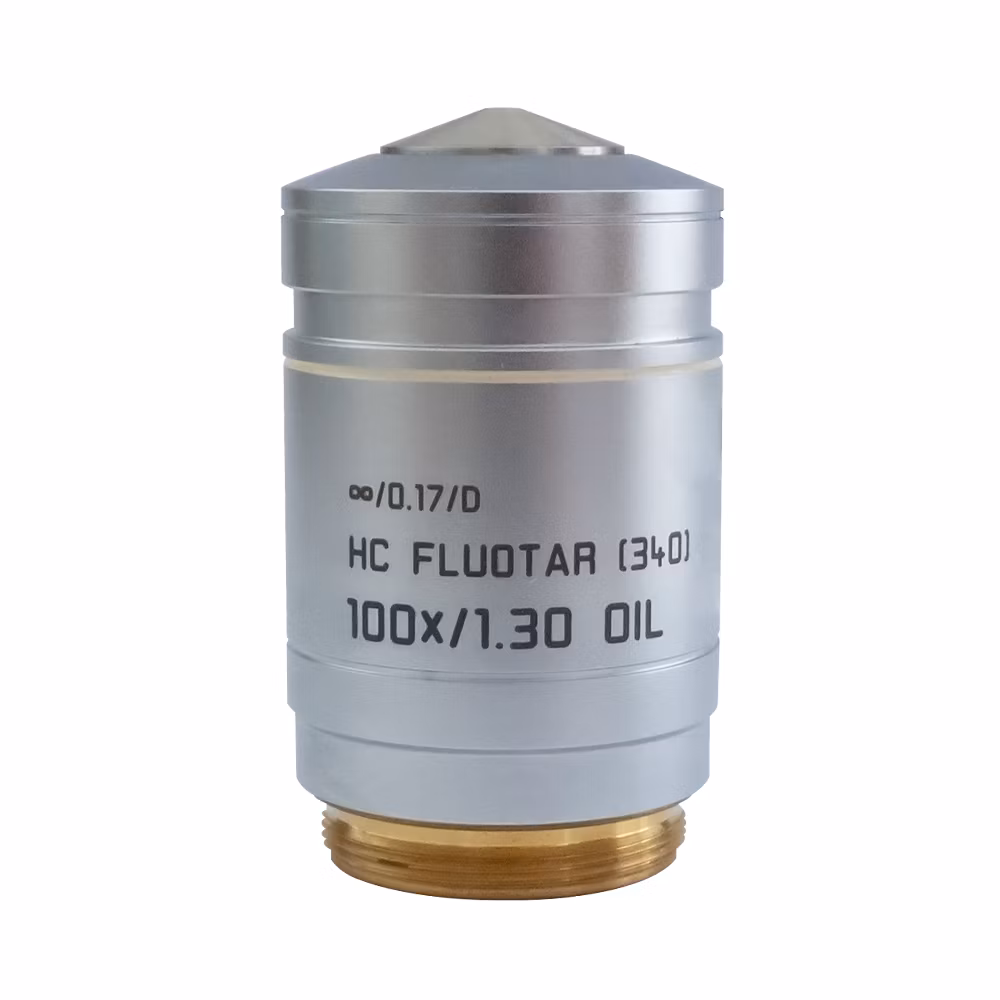

Microscope Objective HC FLUOTAR (340) 100x/1,30 OIL
$undefined
Obj. HC FLUOTAR (340) 100x/1.30 OIL
Product No. 11506368
Objective HC FLUOTAR (340) 100x/1,30 OIL has a magnification of 100X and a numerical aperture of 1.3. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.14mm and a FN of 12.
- Field Flatness (OFN) up to 25 mm
- Absolute Value(s) of Focus for red wavelength and blue to green wavelength (3 colors) are ≤ 2.5x depth of field
- Application for applications with highest specifications in the visual range and beyond
| Light | Transmitted Light (TL) |
| Contrasting Methods | Brightfield, Differential Interference Contrast, Fluorescence |
| Technique/Application | FURA, Laser Microdissection |
| Transmission | UV (340nm), UV (365nm) |
| Immersion | OIL |
| Coverglass | 0.17 |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 0.14 |
| Field Number (FN) | 12 |
| Iris Diaphragm | NO |
| Spring Loaded | NO |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | D |
