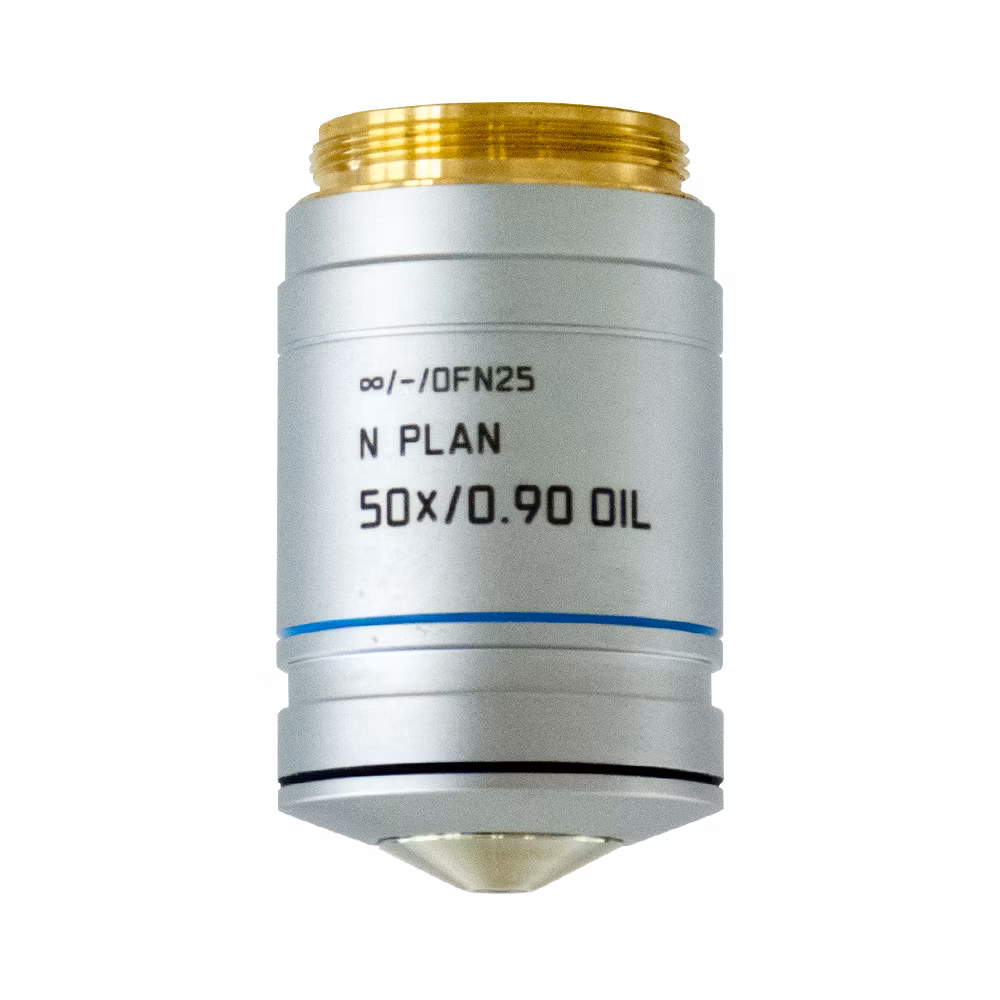

Microscope Objective N PLAN 50x/0,90 OIL
$undefined
The N PLAN objective class comprises further improved achromats with good field flatness up to 25 mm. N PLAN objectives are suitable for transmitted light and DIC, N PLAN PH for phase contrast. For incident light applications including differential interference contrast (DIC), N PLAN EPI objectives are available. The N PLAN EPI BD can also be used as a darkfield objective. The N PLAN EPI incident light objectives feature excellent image contrast and safe working distances
Product No. 11506321
Objective N PLAN 50x/0,90 OIL has a magnification of 50X and a numerical aperture of 0.9. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.14mm and a FN of 22.
- Field Flatness (OFN) up to 25 mm
- Absolute Value(s) of Focus between red and blue wavelength (2 colors) is ≤ 2x depth of field
- Application for standard applications in the visual spectral range
| Contrasting Methods | Brightfield, Fluorescence, Qualitative Polarization, |
| Immersion | OIL |
| Coverglass | NO |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 0.14 |
| Field Number (FN) | 22 |
| Iris Diaphragm | NO |
| Spring Loaded | YES |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Transmission | UV (365nm) |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | NO |
