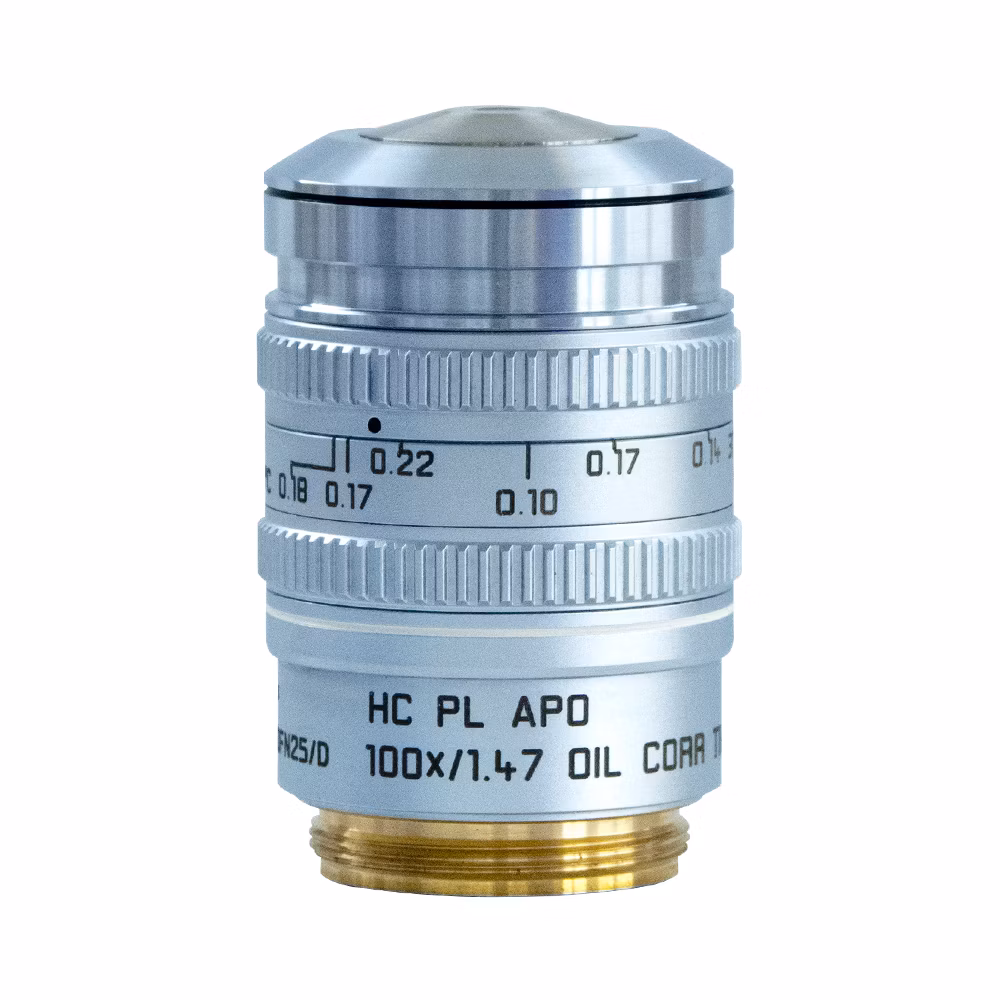

Microscope Objective HC PL APO 100x/1,47 OIL CORR TIRF
$undefined
PL APO objectives – the class for professionals. They deliver imaging quality that cannot be achieved by conventional objectives. Plan Apochromats provide perfect axial and lateral color matching for applications requiring fast color change and the colocalization of structures. PL APO objectives are characterized by flawless image flatness up to a field number of 25. Top numerical apertures define a resolving power at the limits of what is physically possible.
Product No. 11506318
Objective HC PL APO 100x/1,47 OIL CORR TIRF has a magnification of 100X and a numerical aperture of 1.47. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.10mm and a FN of 25.
| Light | Transmitted Light (TL) |
| Contrasting Methods | Fluorescence, Brightfield, Differential Interference Contrast |
| Technique/Application | TIRF (Total Internal Reflection Microscopy) |
| Transmission | UV (340nm), UV (365nm) |
| Numerical Aperture | 1.47 |
| Objective Type | PLAN APO |
| Immersion | OIL |
| Coverglass | With Coverglass |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 0.10 |
| Field Number (FN) | 25 |
| Magnification | 100 |
| Iris Diaphragm | NO |
| Spring Loaded | YES |
| Suitable for AFC (Adaptive Focus Control) | YES |
| Correction Ring (CORR) | CORR |
| Exit Pupil Position/DIC prism | D |
| Numeric Aperture Filter | ≥ 1 |
| Magnification Filter | 86x - 100x |
| Field Number Filter | 25 |
| Working Distance Filter | < 0.3 |
