Microscope Objective HI PLAN 40x/0,65 PH1

$undefined

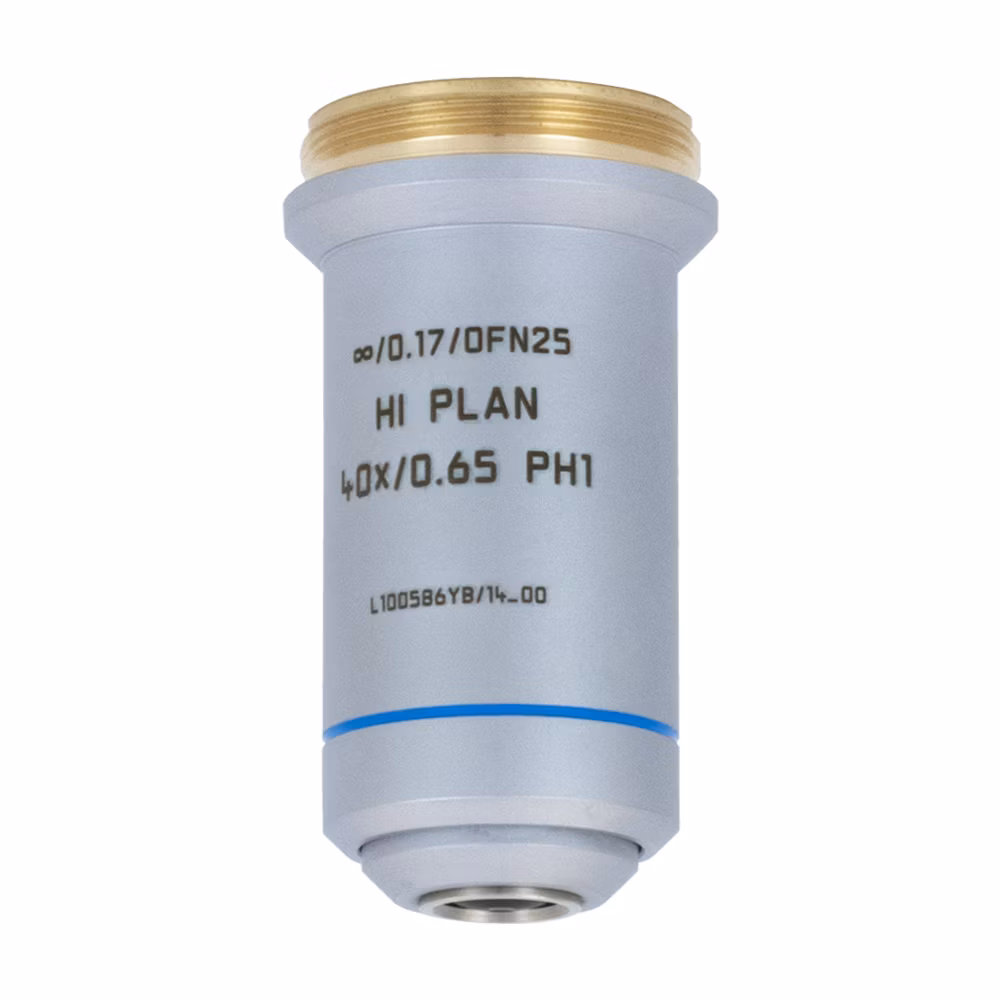

11506315 Picture Kid17939924

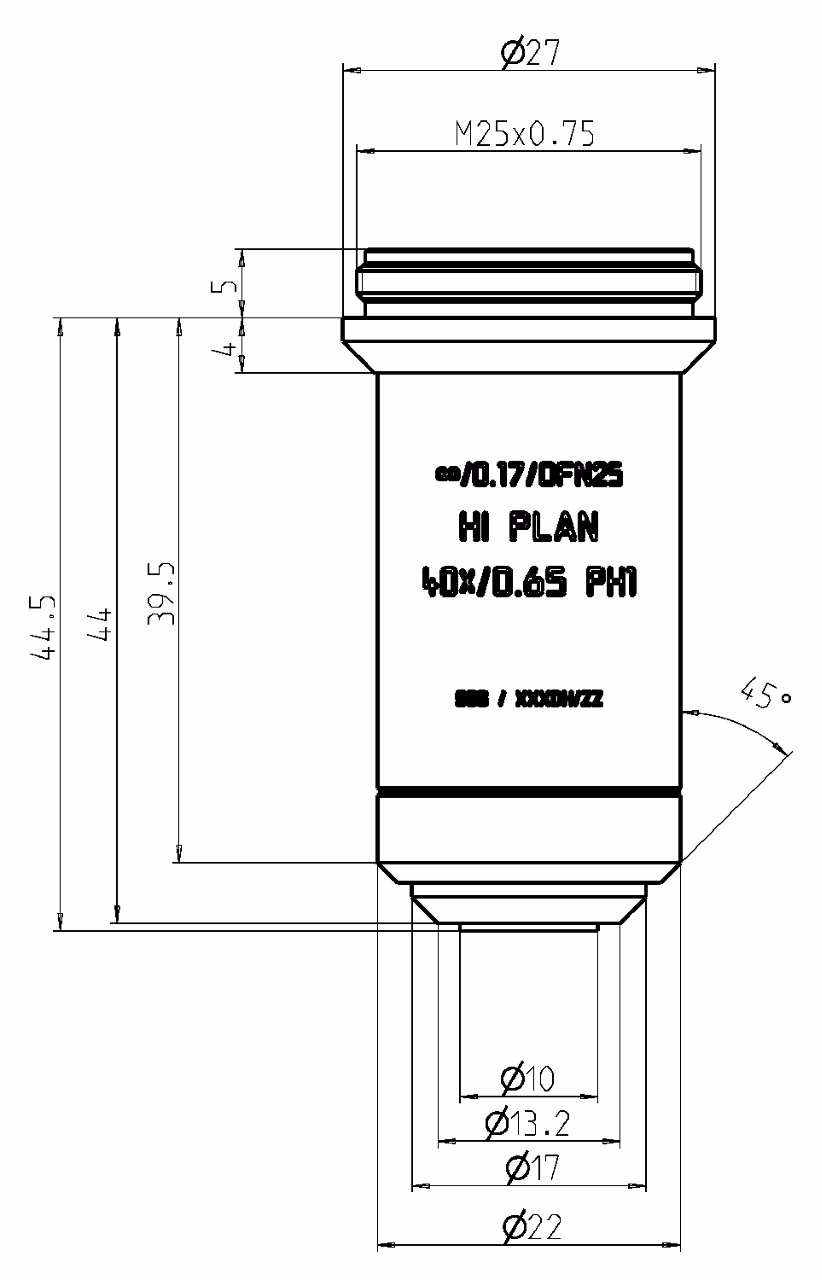

11506315 Dimension Sheet Kid18967296

Objective HI PLAN 40x/0,65 PH1 has a magnification of 40X and a numerical aperture of 0.65. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 0.36mm and a FN of 20.

Objective HI PLAN 40x/0,65 PH1 has a magnification of 40X and a numerical aperture of 0.65. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 0.36mm and a FN of 20.

Technical Specifications
Light Transmitted Light (TL)
Contrasting Methods Fluorescence, Brightfield, Qualitative Polarization, Phase Contrast
Transmission UV (365nm)
Numerical Aperture 0.65
Objective Type HI PLAN
Immersion DRY
Coverglass With Coverglass
Objective Thread M25
Free Working Distance (WD in mm) 0.36
Field Number (FN) 20
Magnification 40
Iris Diaphragm NO
Spring Loaded YES
Suitable for AFC (Adaptive Focus Control) NO
Correction Ring (CORR) NO
Exit Pupil Position/DIC prism NO
