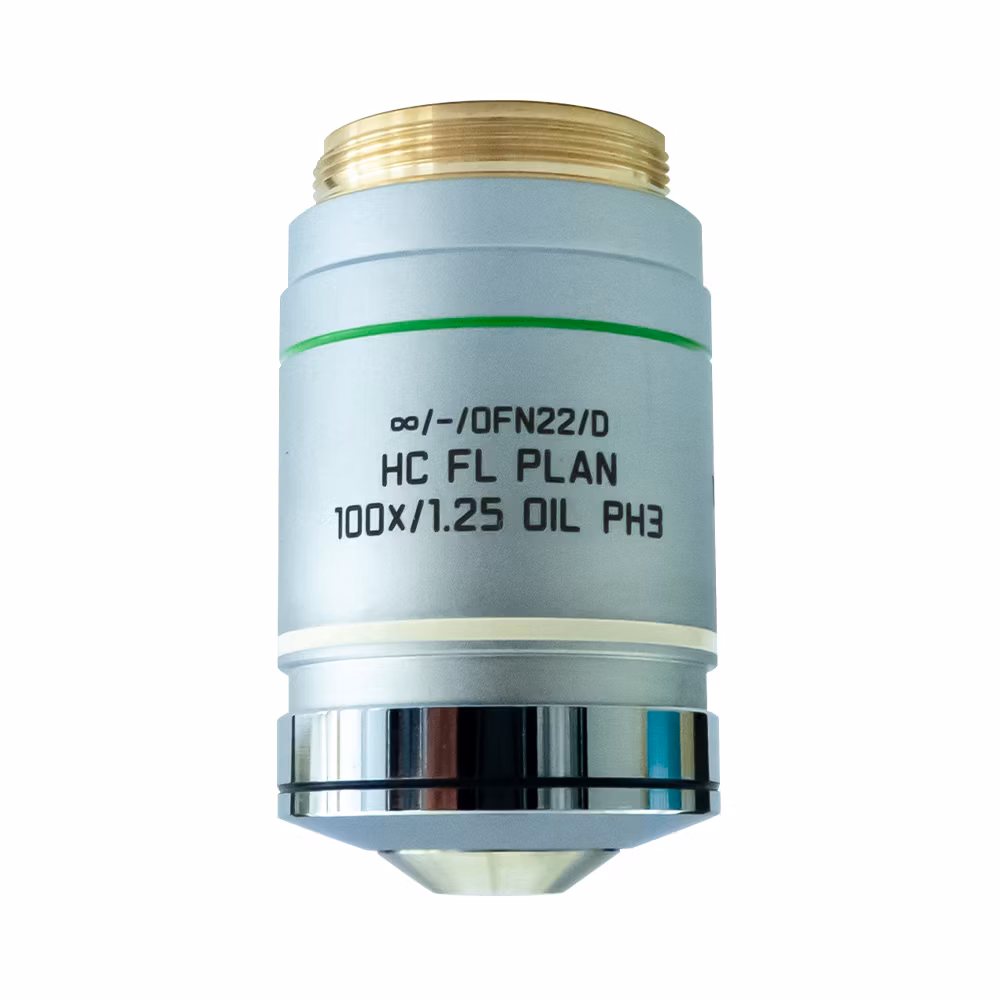

Microscope Objective HC FL PLAN 100x/1,25 OIL PH3
$undefined
FL PLAN objectives are modern universal objectives with outstanding chromatic correction and field flatness (OFN) up to 25 mm. State-of-the-art coating techniques give FL PLAN objectives high transmission for fluorescence excitation. All contrasting methods are possible. FL PLAN objectives are optimized for fluorescence, PH and DIC.
Product No. 11506313
Objective HC FL PLAN 100x/1,25 OIL PH3 has a magnification of 100X and a numerical aperture of 1.25. For use in oil immersion material environment and attached with an objective thread of M25 having a free working distance of 0.13mm and a FN of 25.
| Light | Transmitted Light (TL) |
| Contrasting Methods | Brightfield, Differential Interference Contrast, Fluorescence, Phase Contrast, Qualitative Polarization |
| Transmission | UV (365nm) |
| Numerical Aperture | 1.25 |
| Objective Type | FL PLAN |
| Immersion | OIL |
| Coverglass | With Coverglass |

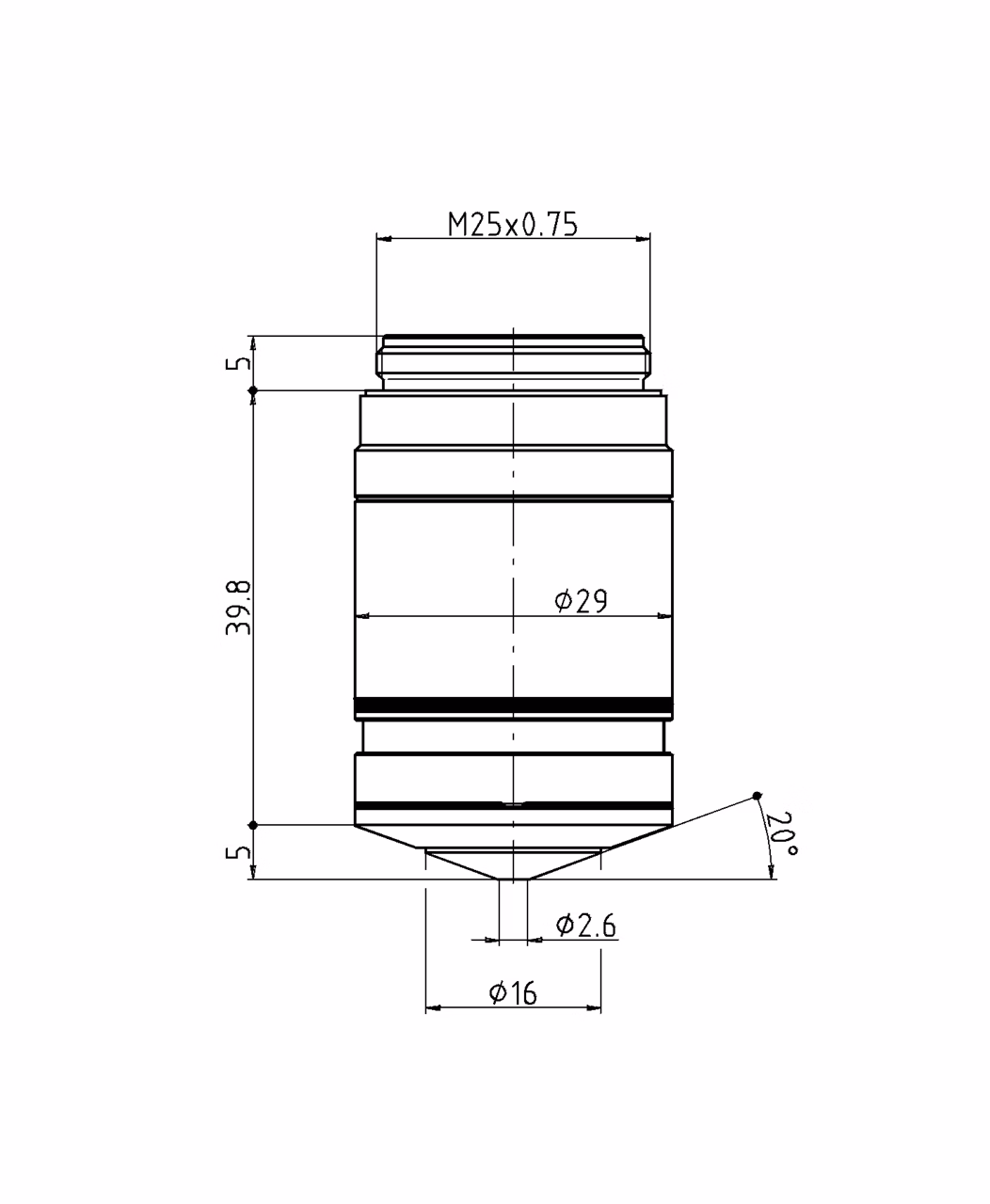

| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 0.13 |
| Field Number (FN) | 25 |
| Magnification | 100 |
| Iris Diaphragm | NO |
| Spring Loaded | YES |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | D |
| Numeric Aperture Filter | ≥ 1 |
| Magnification Filter | 86x - 100x |
| Field Number Filter | 25 |
| Working Distance Filter | < 0.3 |
