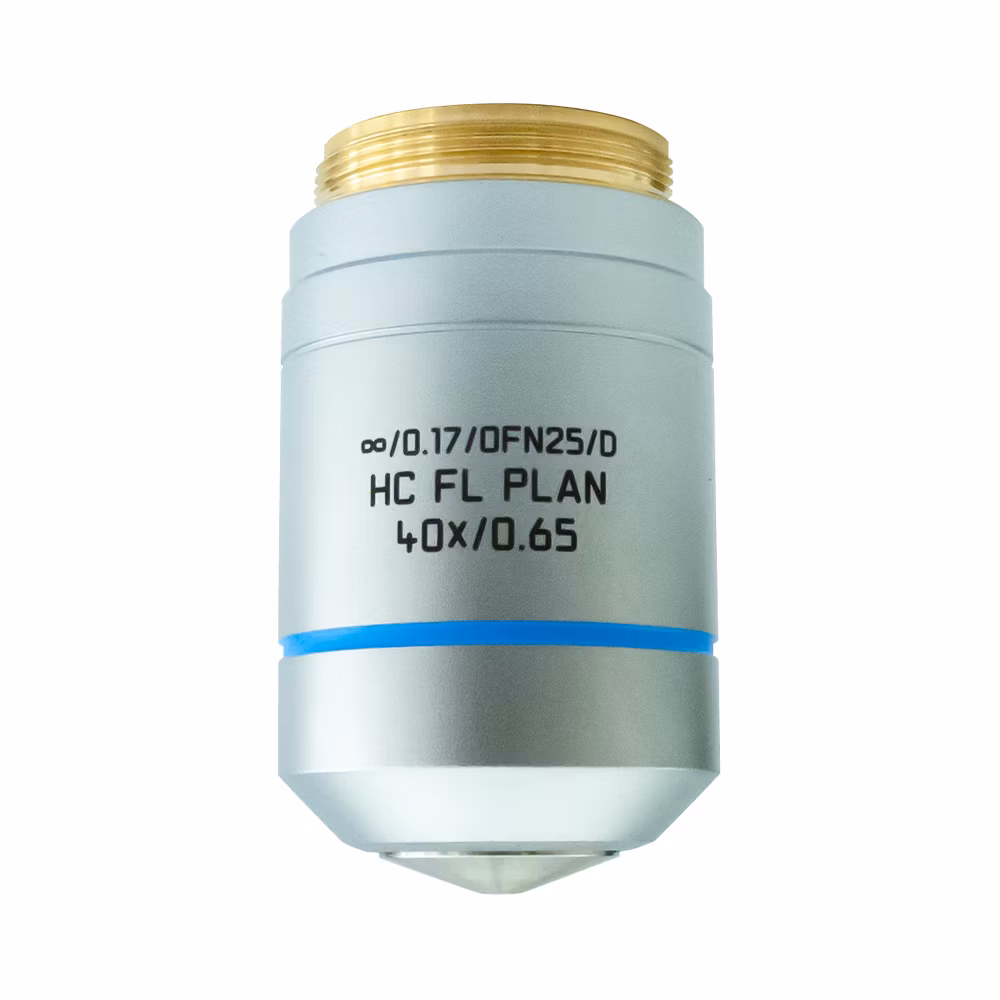

Microscope Objective HC FL PLAN 40x/0,65
$undefined
FL PLAN objectives are modern universal objectives with outstanding chromatic correction and field flatness (OFN) up to 25 mm. State-of-the-art coating techniques give FL PLAN objectives high transmission for fluorescence excitation. All contrasting methods are possible. FL PLAN objectives are optimized for fluorescence, PH and DIC.
Product No. 11506310
Objective HC FL PLAN 40x/0,65 has a magnification of 40X and a numerical aperture of 0.65. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 0.36mm and a FN of 25.
- Field Flatness (OFN) up to 25 mm
- Absolute Value(s) of Focus between red and blue wavelength (2 colors) is ≤ 2x depth of field
- Application for standard applications in the visual spectral range
| Contrasting Methods | Brightfield, Differential Interference Contrast, Fluorescence, Qualitative Polarization, Transmitted Light Darkfield |
| Immersion | DRY |
| Coverglass | 0.17 |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 0.36 |
| Field Number (FN) | 25 |
| Iris Diaphragm | NO |
| Spring Loaded | YES |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | D |
