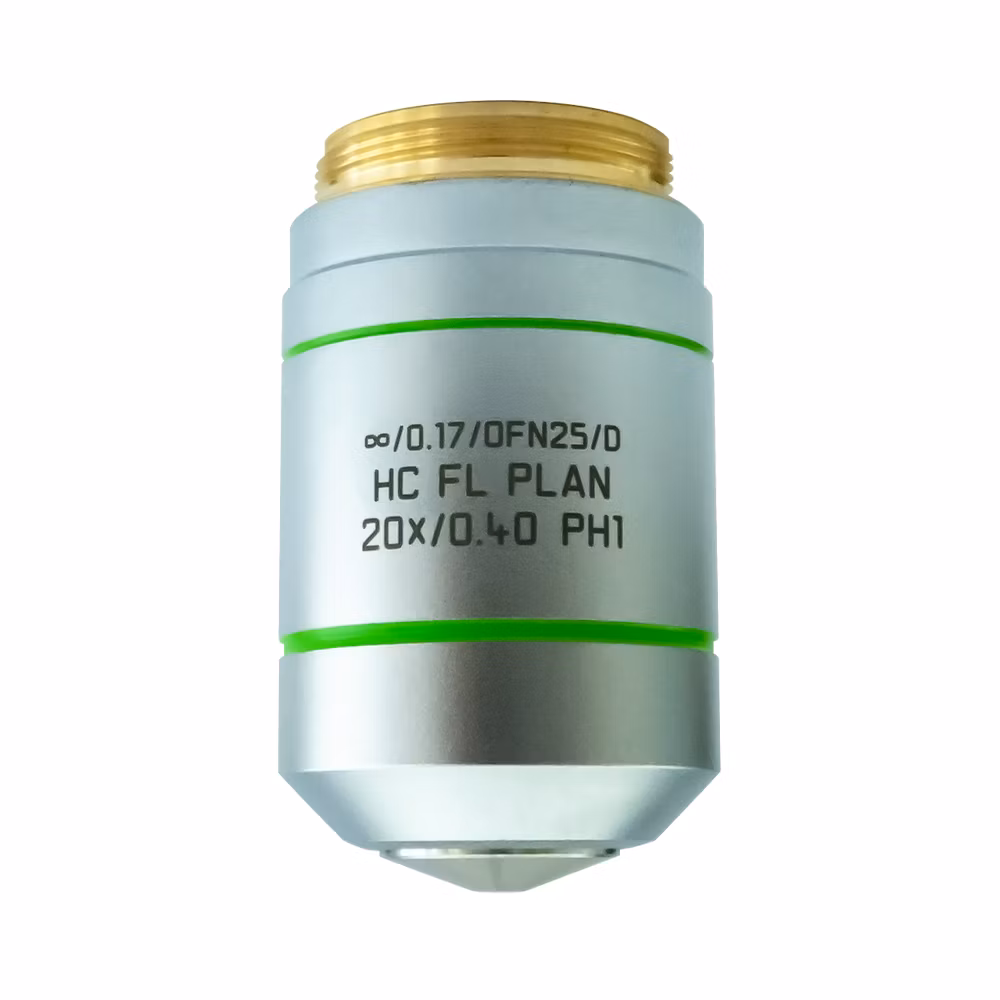

Microscope Objective HC FL PLAN 20x/0,40 PH1
$undefined
FL PLAN objectives are modern universal objectives with outstanding chromatic correction and field flatness (OFN) up to 25 mm. State-of-the-art coating techniques give FL PLAN objectives high transmission for fluorescence excitation. All contrasting methods are possible. FL PLAN objectives are optimized for fluorescence, PH and DIC.
Product No. 11506309
Objective HC FL PLAN 20x/0,40 PH1 has a magnification of 20X and a numerical aperture of 0.4. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 0.39mm and a FN of 25.
| Light | Transmitted Light (TL) |
| Contrasting Methods | Brightfield, Differential Interference Contrast, Fluorescence, Phase Contrast, Qualitative Polarization, Transmitted Light Darkfield |
| Transmission | UV (340nm), UV (365nm) |
| Numerical Aperture | 0.4 |
| Objective Type | FL PLAN |
| Immersion | DRY |
| Coverglass | With Coverglass |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 0.39 |
| Field Number (FN) | 25 |
| Magnification | 20 |
| Iris Diaphragm | NO |
| Spring Loaded | YES |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | D |
| Numeric Aperture Filter | 0.35 - 0.6 |
| Magnification Filter | 20x |
| Field Number Filter | 25 |
| Working Distance Filter | 0.31 - 0.5 |
