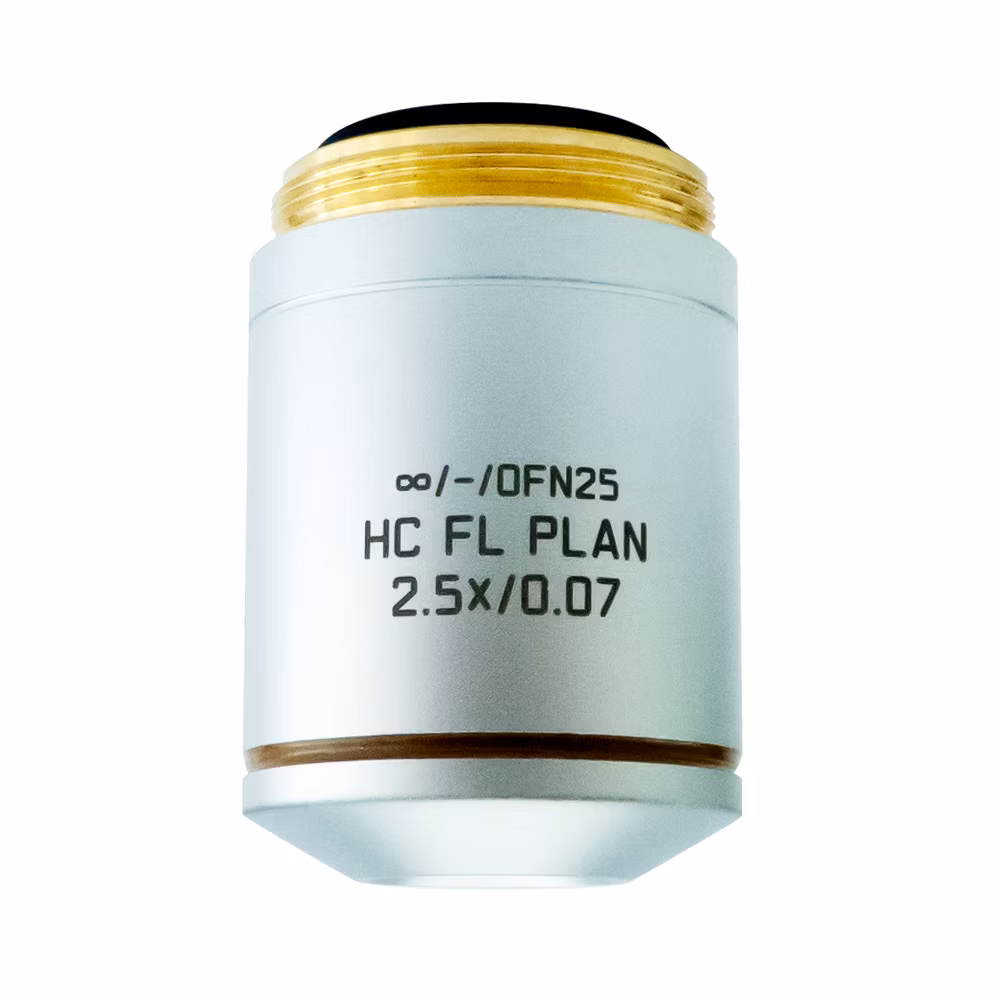

Microscope Objective HC FL PLAN 2,5x/0,07
$undefined
FL PLAN objectives are modern universal objectives with outstanding chromatic correction and field flatness (OFN) up to 25 mm. State-of-the-art coating techniques give FL PLAN objectives high transmission for fluorescence excitation. All contrasting methods are possible. FL PLAN objectives are optimized for fluorescence, PH and DIC.
Product No. 11506304
Objective HC FL PLAN 2,5x/0,07 has a magnification of 2.5X and a numerical aperture of 0.07. For use in dry immersion material environment and attached with an objective thread of M25 having a free working distance of 11.2mm and a FN of 25.
| Light | Transmitted Light (TL) |
| Contrasting Methods | Brightfield, Fluorescence, Qualitative Polarization |
| Transmission | UV (365nm) |
| Numerical Aperture | 0.07 |
| Objective Type | FL PLAN |
| Immersion | DRY |
| Coverglass | With and without Coverglass |
| Objective Thread | M25 |
| Free Working Distance (WD in mm) | 11.2 |
| Field Number (FN) | 25 |
| Magnification | 2.5 |
| Iris Diaphragm | NO |
| Spring Loaded | NO |
| Suitable for AFC (Adaptive Focus Control) | NO |
| Correction Ring (CORR) | NO |
| Exit Pupil Position/DIC prism | NO |
| Numeric Aperture Filter | ≤ 0.1 |
| Magnification Filter | 1.25x - 4x |
| Field Number Filter | 25 |
| Working Distance Filter | > 5 |
